Pivot lock shoe and tilt latch broken.

A quick learner from Germantown, MD says:
June 18, 2021
Unsure what the dimensions are. Also there does not seem to be an easy way to remove the pivot lock show from the tracks. Is the jamb spreader set required?

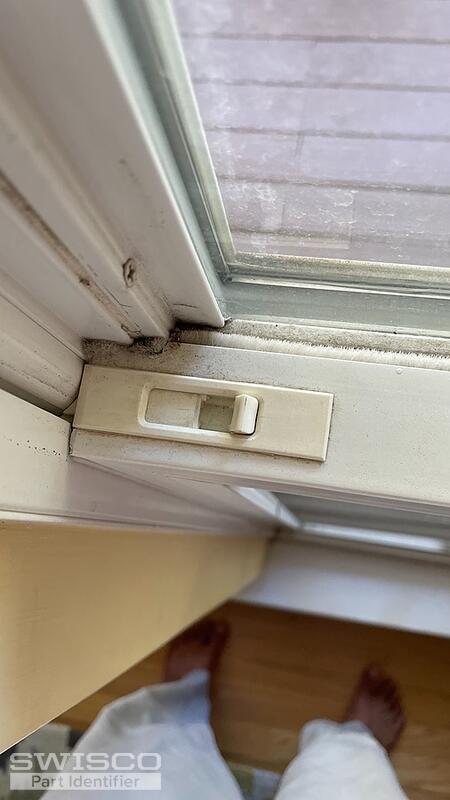

Thumbnail of the uploaded file named AA8197A4-7D6E-42C5-AF69-5C64550F5CA0.jpeg

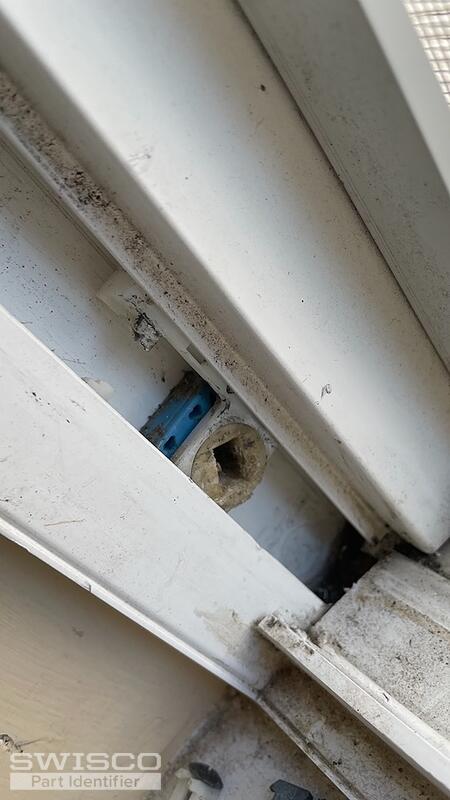

Thumbnail of the uploaded file named A06E1D08-0068-4EC6-A67C-1CCC2B1605D7.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 22, 2021

For the tilt latches, start by removing one, preferably an undamaged version, and comparing to our 26-243 and 26-244. For the pivot shoe, no you don't necessarily need jamb spreaders. Watch the video below that explains the 'cutout' method for removing and replacing this type of pivot shoe. You'll need the width and thickness of the shoe--compare to our selection here.
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to Replace a Window Tilt Latch
How to Replace a Window Tilt Latch
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
