Pivot part

Home Owner from Drexel hill PA
Oct 27, 2020 1:06 pm

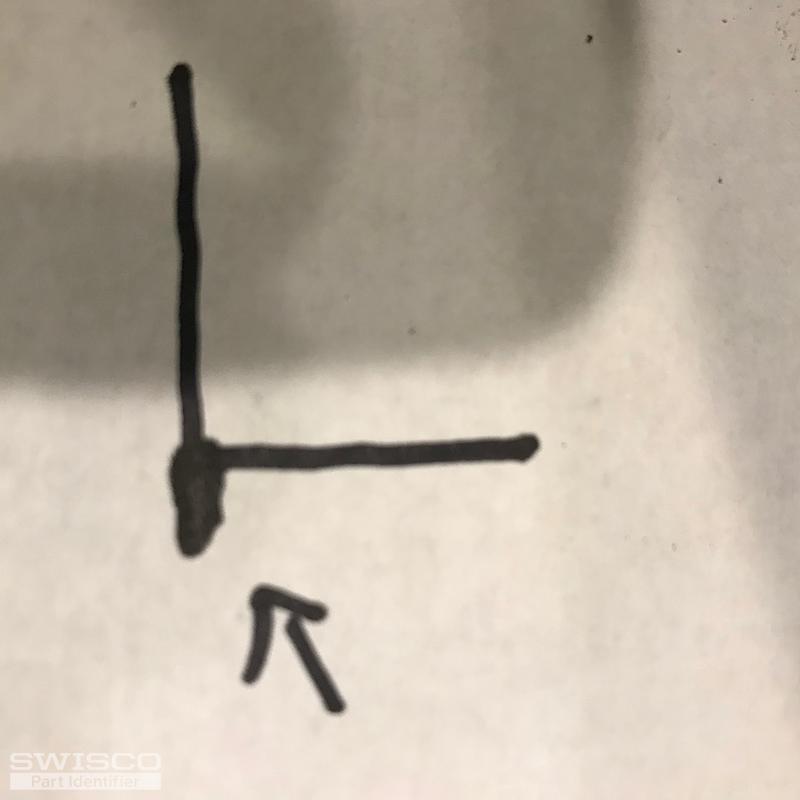

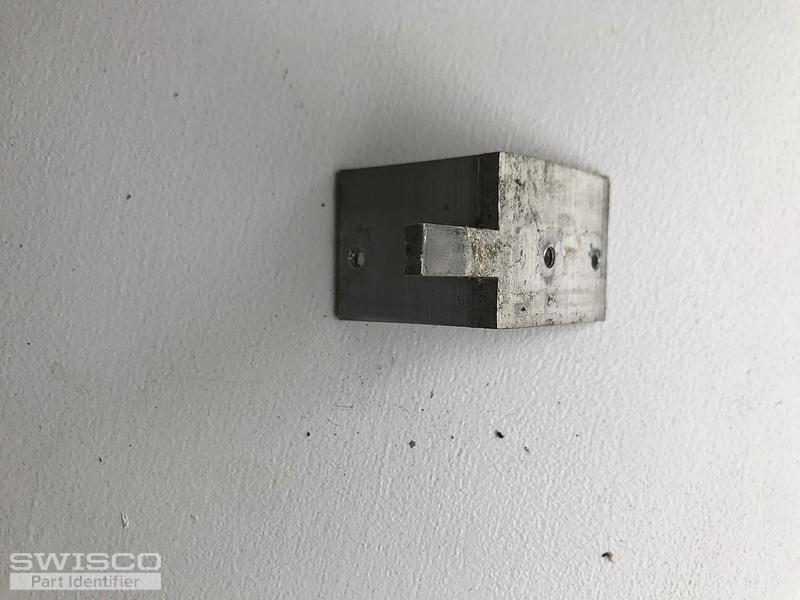

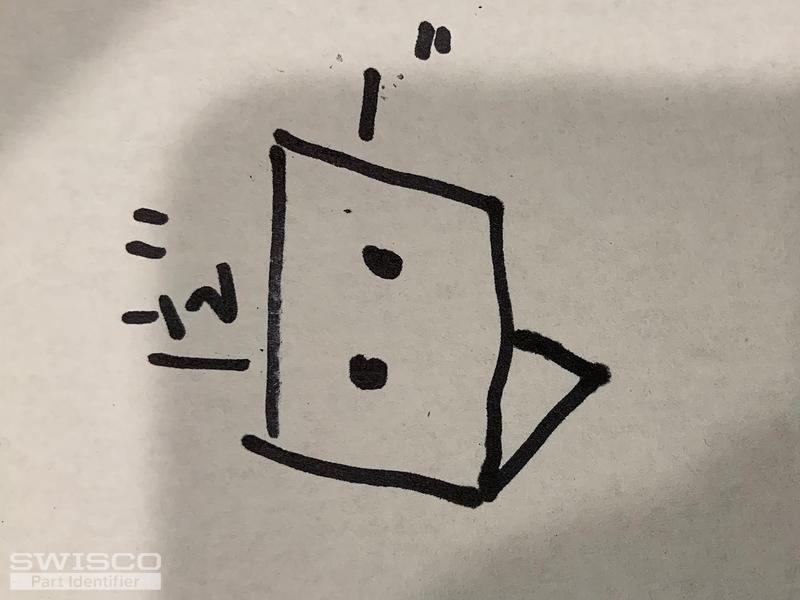

I am replacing balances in my double hung windows. The piece on the L shaped bracket on the bottom of the sash that fits into the pivot shoe is broken. I am uploading a picture of the bracket and also a sketch showing dimensions of the L shaped part and where the piece is broken off. It may be hard to see in the photo where this part is broken off. Dimensions are as shown in sketch.
5 user uploaded images
5 Replies

Home Owner from Drexel hill PA
Oct 27, 2020 5:37 pm

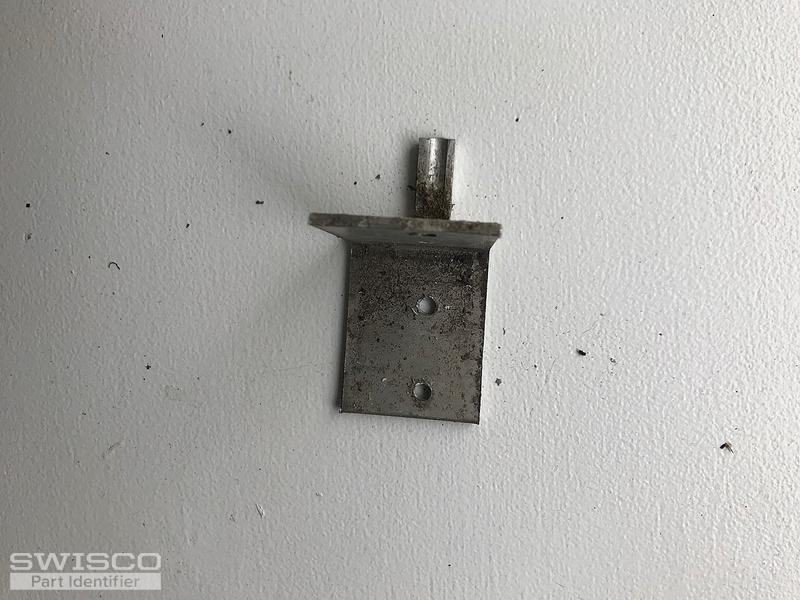

Added two photos of a good part removed from another sash. Each Sash has two and they are marked to their position either L or R.
2 user uploaded images

Bob from SWISCO
Oct 30, 2020 12:09 pm


Hey there. See our 26-395. Take a look and see if you think this pivot bar pair matches up.

Home Owner from Drexel hill PA
Nov 3, 2020 1:45 pm
Bob, it does look like the part need to take a sash apart to confirm. Thanks for your help.

Casey from SWISCO
Nov 3, 2020 2:09 pm


Our pleasure! Please let us know if you have any questions going forward.
