Pivot pin ID

Quick Learner from Chicago, IL
Mar 11, 2016 8:16 am
The pictured pivot bar is bent so it doesn't look its 3" length. It feels like aluminum. The closest 2 screw holes are 11/16" apart and the furthest ones are 1-3/16" apart. Width is 9/16" at widest part and 5/16th at narrow end. Is this anything you have?

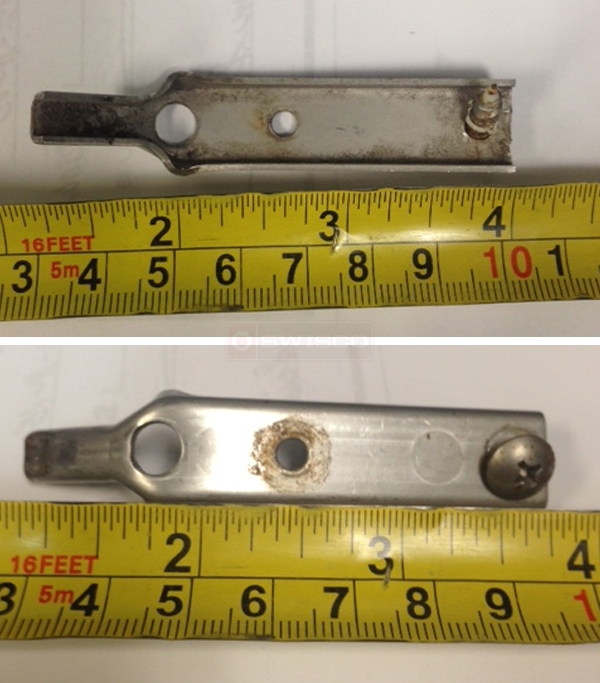

User submitted photos of a pivot bar.
3 Replies
+ Add a Comment
Paul
Paul from SWISCO
Mar 14, 2016 3:35 pm
SWISCO
EXPERT
The shape is similar to our 26-242, but the measurements appear to be different. You would have to drill new holes. Ours is also die cast. Would that work for you?
Quick Learner
Mar 14, 2016 4:38 pm
I believe that will work. I went ahead and placed order.
Thanks,
Vicki
Paul
Paul from SWISCO
Mar 15, 2016 1:45 pm
SWISCO
EXPERT
Thank you for the order, Vicki! Please let us know how it works out, I'm curious to see if it's a success.
