Pivot point bracket

Landlord from Carpinteria CA

Aug 11, 2023 5:20 pm

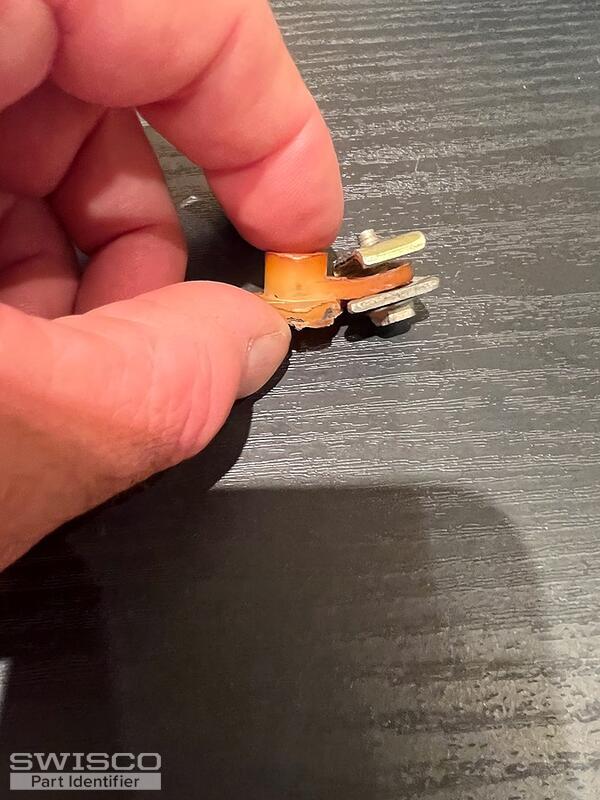

Manufactured home with a closet wall made of mirror with two door on each end. Pivot mounts in a tract top and bottom. Pivot is used to hold the large mirror in the middle also.

4 user uploaded images

4 Replies

Paul from SWISCO

Aug 15, 2023 10:28 am

Thanks for reaching out to us. We'd be happy to help but we'll need more information. Specifically, we need you to write out the diameter of the pin that fits into the nylon cup of the pivot bracket. We also need the width of the metal washers that lock onto the track.

Landlord from Carpinteria CA

Aug 15, 2023 1:22 pm

The pin is 1/4".

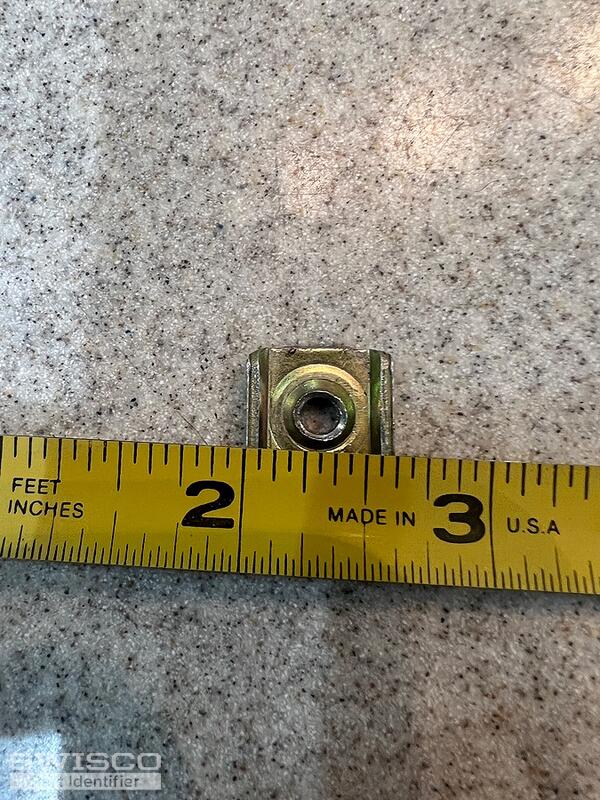

The clamp is 5/8"wide see photo

1 user uploaded image

Paul from SWISCO

Aug 17, 2023 10:45 am

From your photos and dimensions, we believe you can use the 21-203 pivot bracket. You may have to do some slight modifications but take a look and see what you think.
