Pivot shoe

A home owner from Danville Ky says:

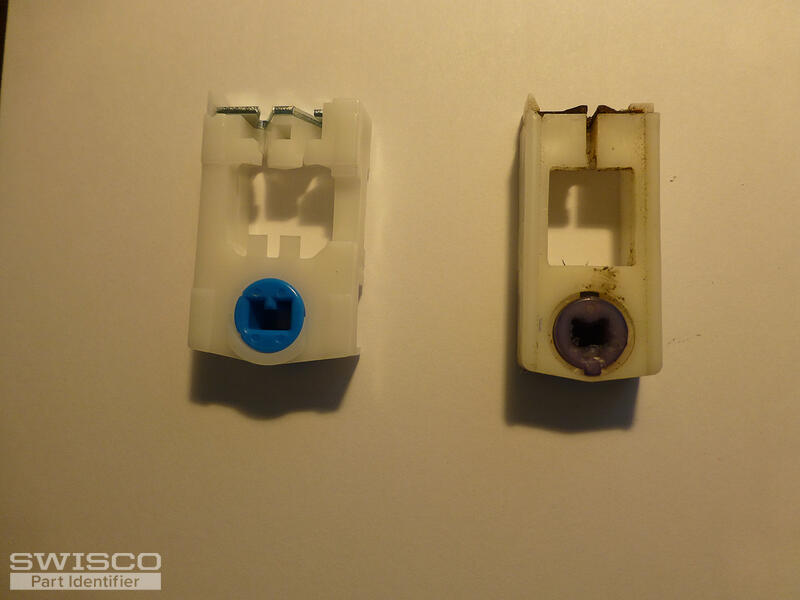

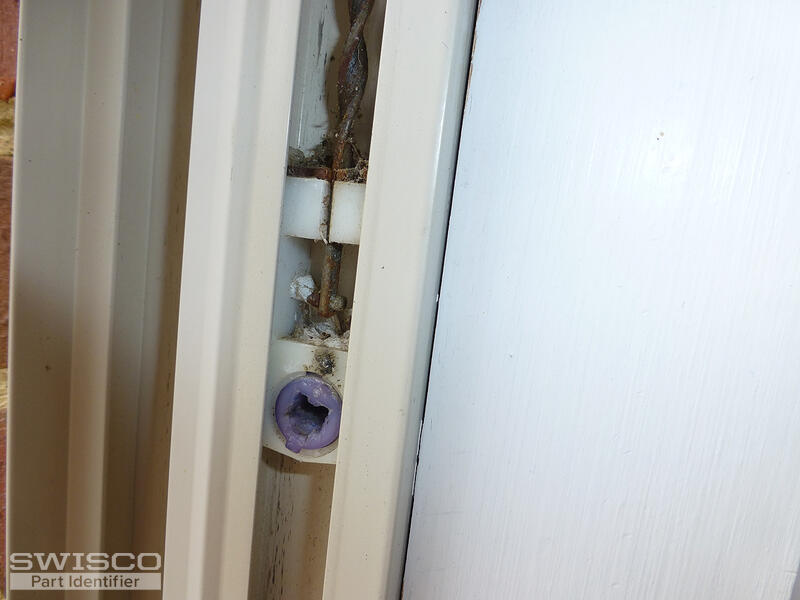

I ordered 4 Pivot shoes for repair of windows---In checking I find I ordered wrong size pivot shoes. I have enclosed some photos of old shoe in window and photo of side by side comparison of old and new shoe. Measurements of old shoe is thickness .538"----Width .964"-----and Length 1.953". Hoping you can identify and supply new shoes.

Thank you

Scottie

I have additional photos if needed

Thumbnail of the uploaded file named P1050283.JPG
Thumbnail of the uploaded file named P1050309.JPG
Thumbnail of the uploaded file named P1050281.JPG
Thumbnail of the uploaded file named P1050300.JPG
Thumbnail of the uploaded file named P1050286.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the dimensions shown on our 15-173 product page to your original pivot shoe. Thanks for posting!
