Pivot shoe

Hello,

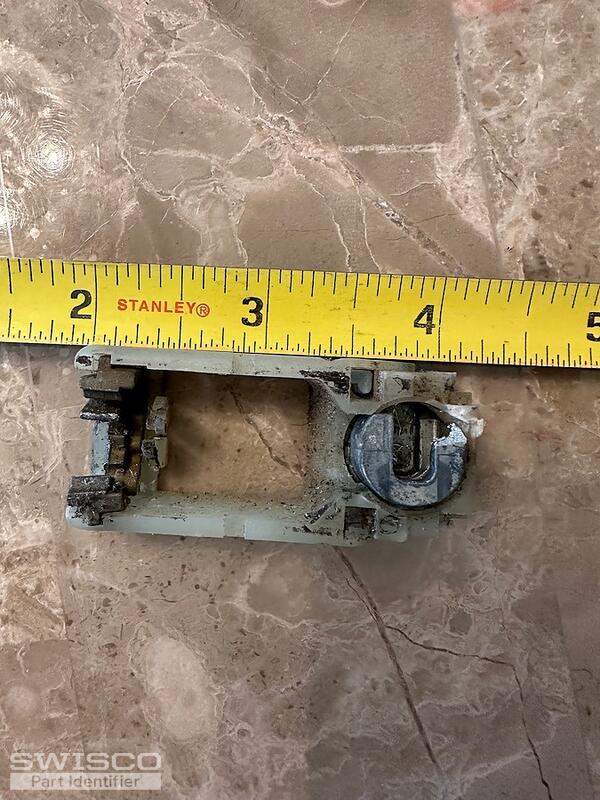

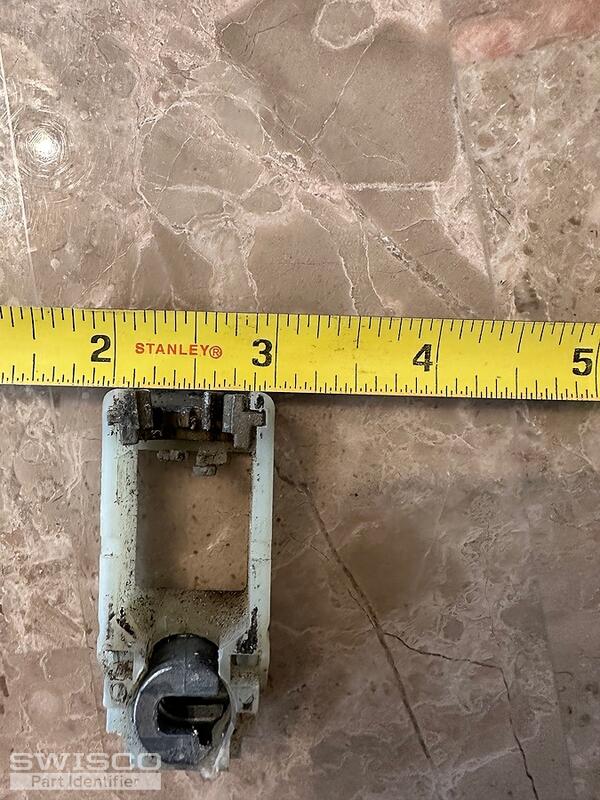

Take a look and compare the width and thickness of the 15-178 and 15-188 pivot shoes to see if one of them matches up to your part. Thanks for posting.

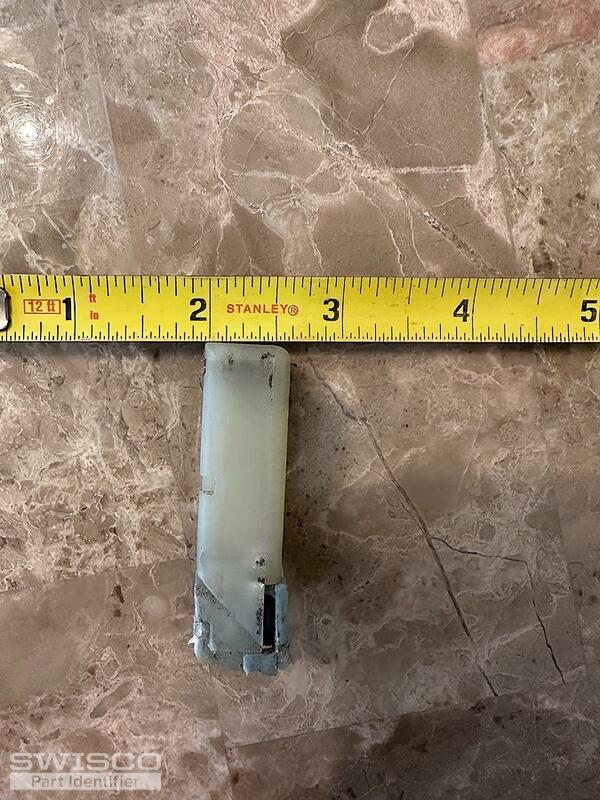

Could you write-out the exact depth of your pivot shoe? That would help us determine if we could offer any other replacement options that may work for your repair.

Thanks for getting back to us. Our best replacement option for your sash lock would be the 15-167 shown below. We can't guarantee that it will work but it would be our best match at this time.

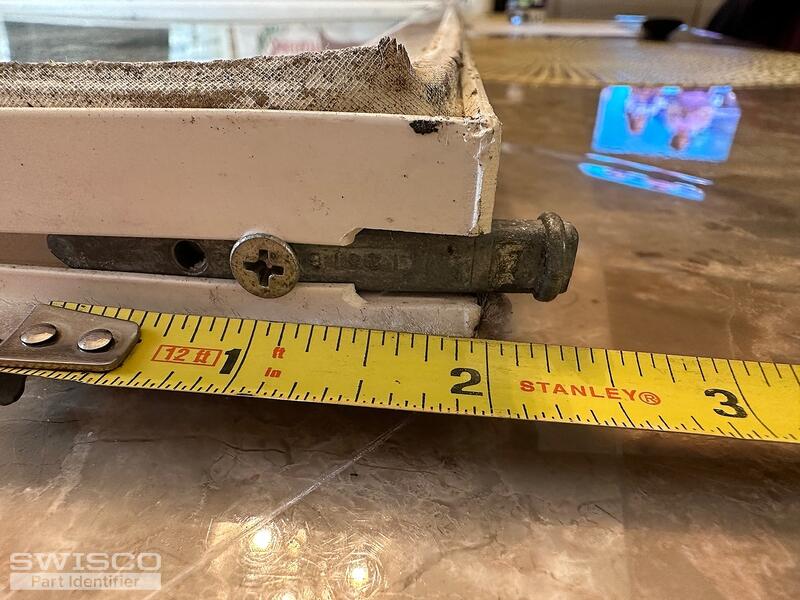

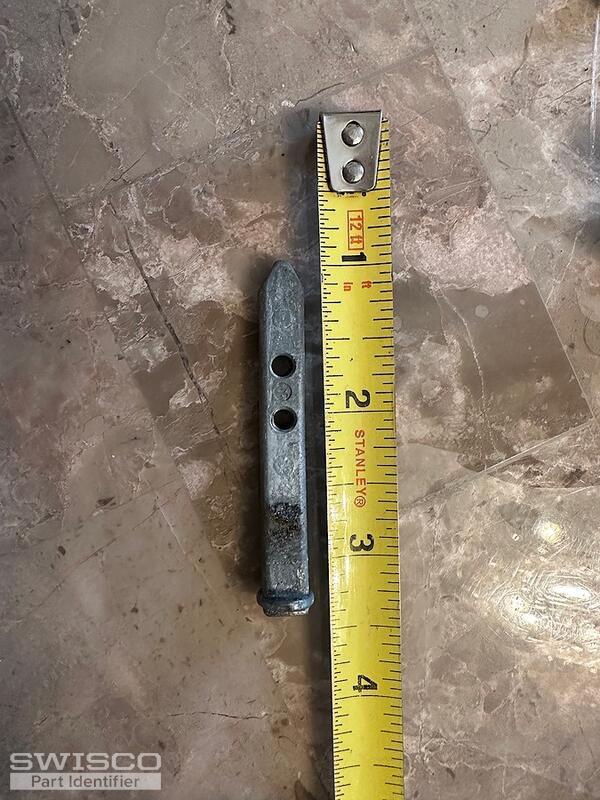

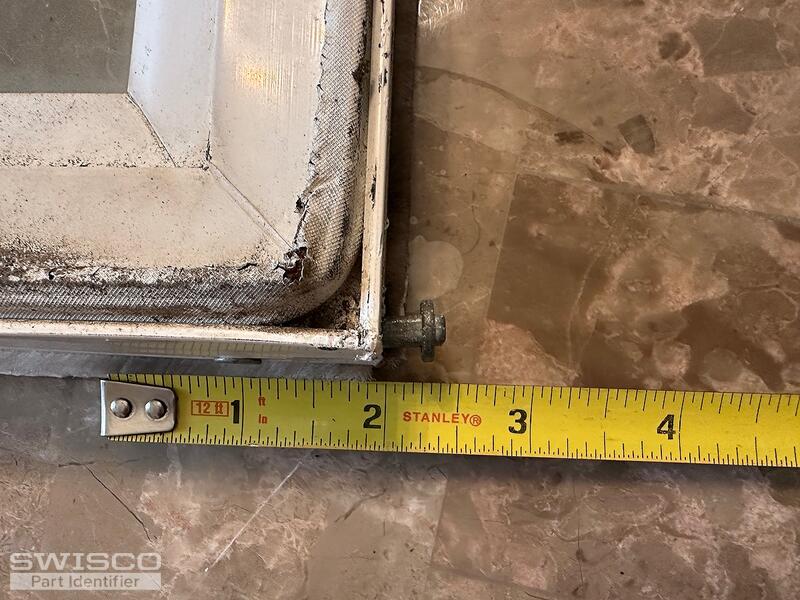

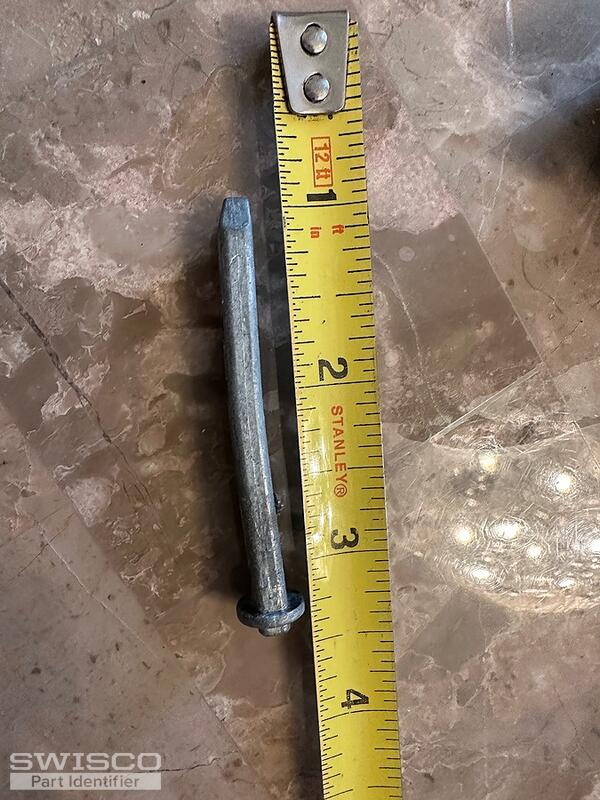

We also don't believe that your original pivot bar would work with our replacement shoe. If you could remove your pivot bar completely from the sash and write out the back set of the installation holes, we'd be happy to research your replacement options for that part as well.

Alternate image for 15-167

Thanks for getting back to us. Unfortunately, we can't make out accurate dimensions from photos but something like our 26-021 is probably your best bet. Review the measurements shown below to confirm.

Alternate image for 26-021

Yes, the 15-167 pivot shoe will accept the 26-021 pivot bar. You just need to make sure that the backset of at least one installation hole matches yours so that you can install it in the sash.
