Pivot shoe

Home Owner from Washington dc
Nov 7, 2023 2:38 pm
Hi,

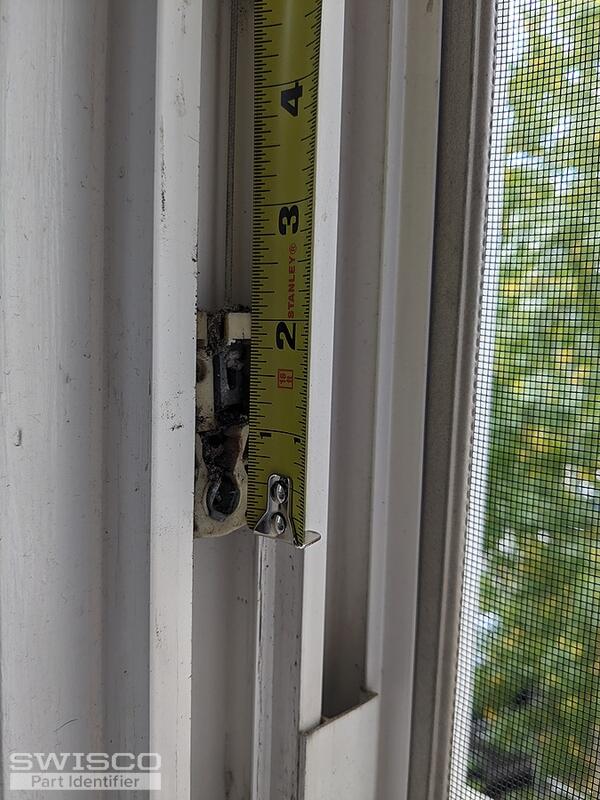

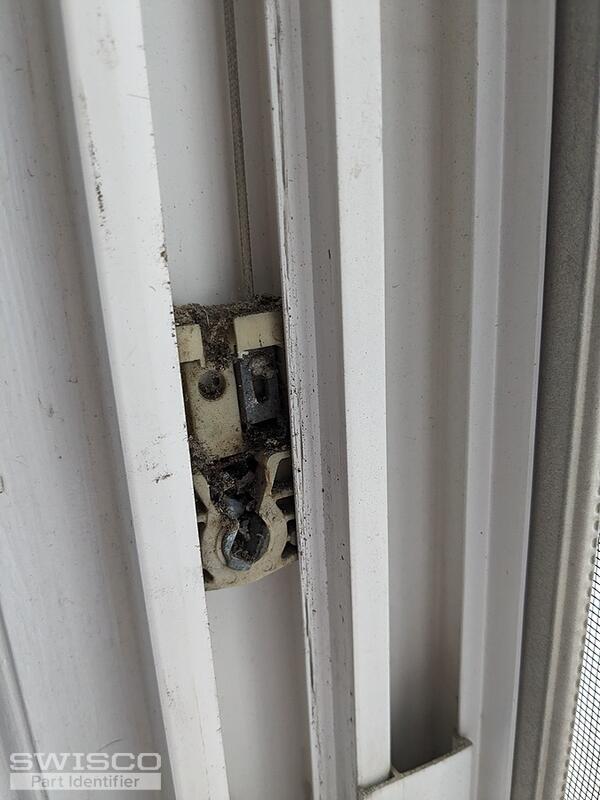

I'm not a professional. Just trying to fix windows at my house. It appears that this part in the groove in the photos, off-white, is what I need for two windows. On your site it looks like they are called shoes or pivot shoe or balance shoe.

Really would appreciate your help identifying this part!

Need it urgently to pass an inspection. Two left pieces and two right pieces.

Thank you so much!!
Marc
PXL_20231107_193059293 PXL_20231107_193043908 PXL_20231107_193053279 PXL_20231107_193008982 PXL_20231107_193027507
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Nov 8, 2023 1:33 pm
SWISCO
EXPERT

Hello,

I can't be sure with the hardware still installed but what I can see resembles the 15-135 pivot shoe, which is commonly used with the S770 channel balance. See the videos related on this page to help you remove the original pivot shoe to compare to the dimensions below. Thank you!

Alternate image for 15-135
Alternate image for 15-135

+ Add a Comment
