Pivot shoe

A home owner from USA says:
May 5, 2014
Please help me find shoes.

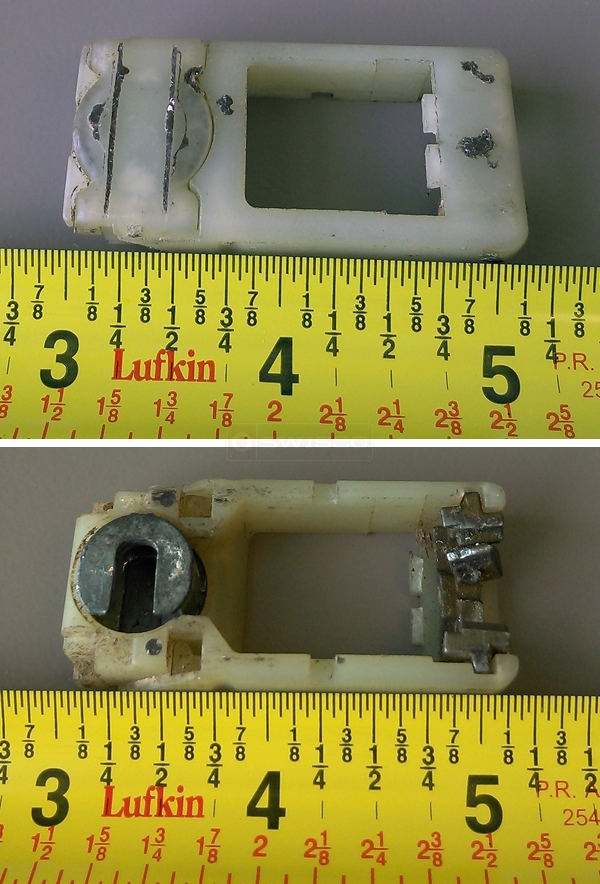

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
May 7, 2014
It's hard to tell what you have. I also cannot determine dimensions based on just seeing the tape measurer held next to the part. Can you tell me what the thickness and width of the shoe is?
A home owner from USA says:
May 15, 2014
Here are more photos.

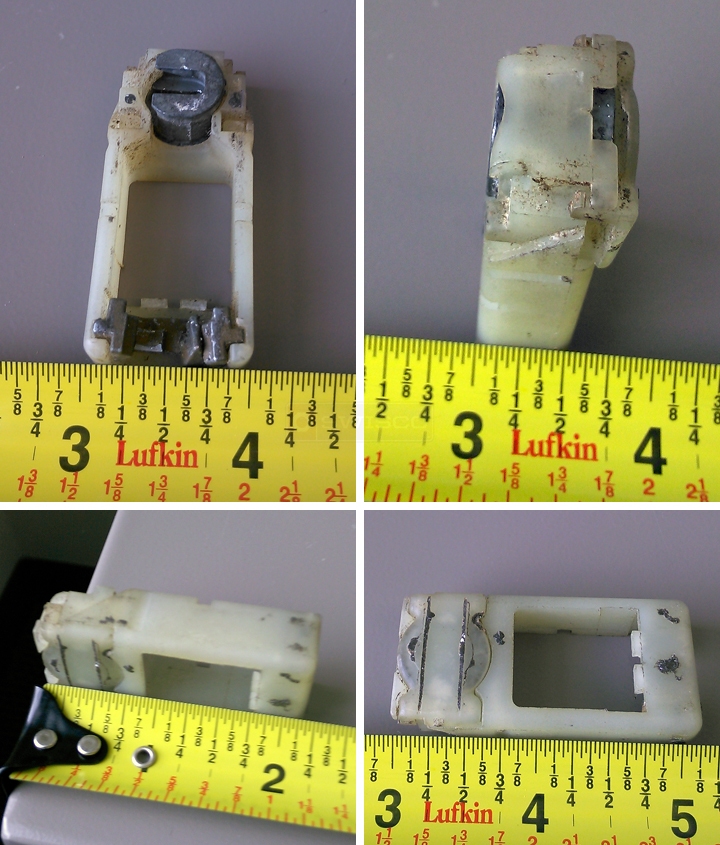

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
May 16, 2014
It's still hard to say, but you could consider our 15-179. Check it out and see what you think.
A quick learner from Charlotte NC says:
May 18, 2014
Thank you! I ordered six of them and a charging tool and some pivot bars. Is there any particular pivot bar you could recommend with this shoe? I ordered the one with number 26-352.
Profile picture of Paul
Paul from SWISCO responded:
May 19, 2014
I do not recommend the 26-352. It would not fit in the 15-179. Instead, you should consider our 26-360.
Pivot Lock Shoe, 9/16" Thick
Pivot Lock Shoe, 9/16" Thick
15-179
$2.57
Tilt Sash Pivot Bar, 2-1/2"
Tilt Sash Pivot Bar, 2-1/2"
26-360
$1.97
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
