Pivot shoe replacement coil type

A quick learner from Saint Louis mo. says:
June 1, 2023
Didn't want to cut. Don't got spreaders sooooo yeah ?

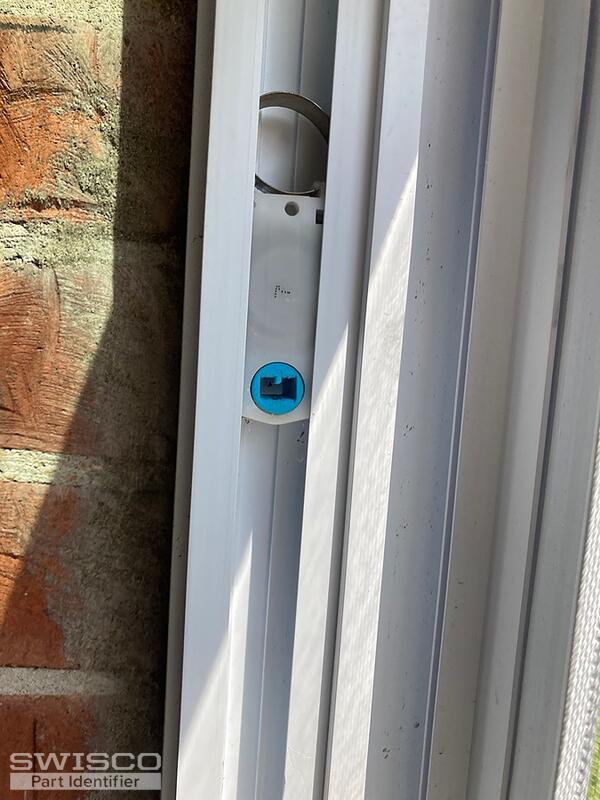

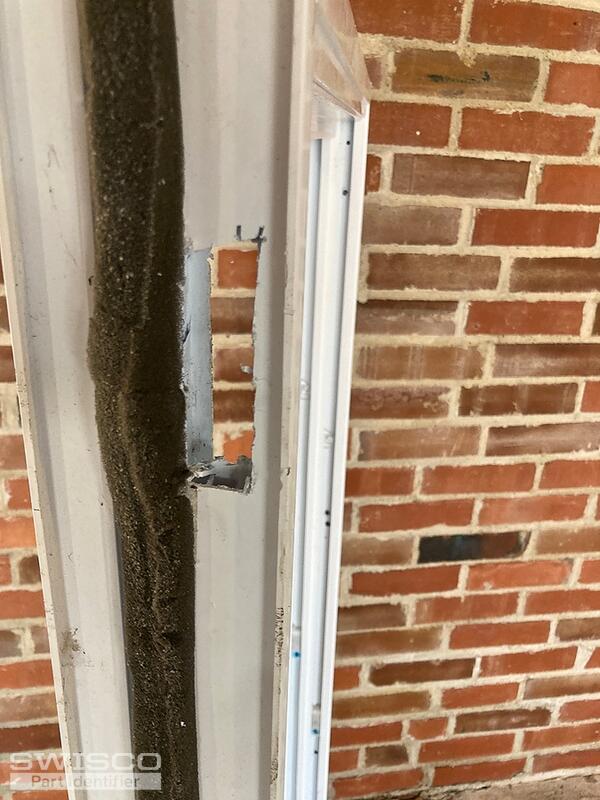

Thumbnail of the uploaded file named IMG_6314.jpeg
Thumbnail of the uploaded file named IMG_6315.jpeg
Thumbnail of the uploaded file named IMG_6316.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 3, 2023

Thanks for posting. This pivot shoe looks like our 15-087, which uses Series 180 Coil Balances. Just look over the specs below to confirm. You needn't use jamb spreaders to remove and replace these shoes; the 'cut out' method will also work, where you cut a hole into the jamb track. The video below shows how to do this.

Detail of 15-087
Detail of 15-087
Series 180 coil balance diagram
Series 180 coil balance diagram
A quick learner from Saint Louis mo. says:
June 6, 2023
Ok ty. I'll call tomorrow to order 2. I want to make sure I get it right. A bit more hand holding. Thx bro
Profile picture of Bob
Bob from SWISCO responded:
June 7, 2023

You're welcome! Please let us know if you had any other questions and I would be happy to assist.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Mounting Bracket
Mounting Bracket
16-024
$0.66
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
