Pivot shoe which would I order?

Quick Learner from Florida

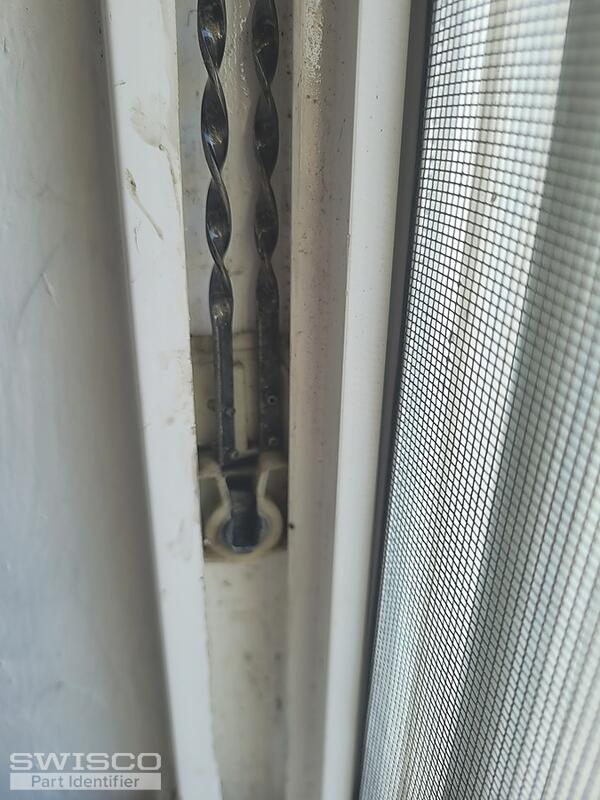

The tube  is 27 inches long with yellow end
I'm not sure which parts at the end I need to order.  Are you  able to tell me.
2 user uploaded images
5 Replies
Quick Learner from Florida

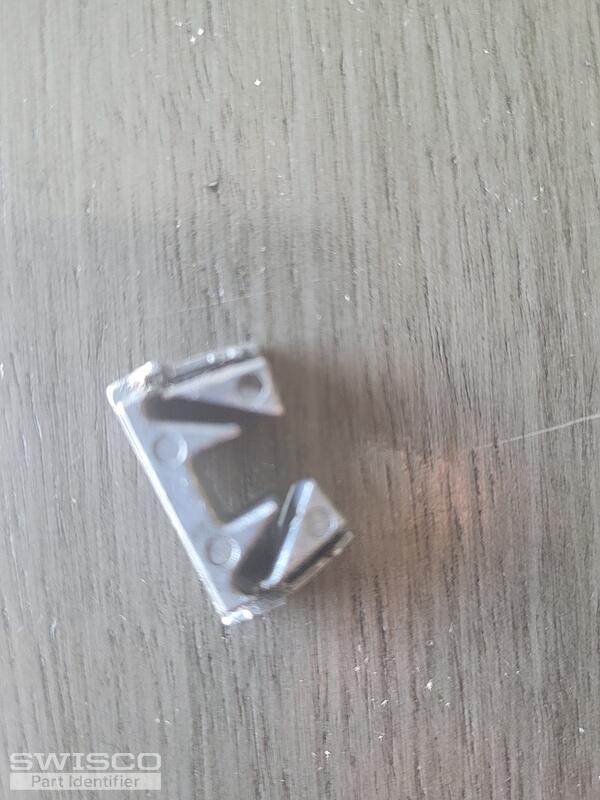

I assume this is the shoe that needs replaced  but I'm not sure which one.
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

We can't be sure with your pivot shoe still installed but the 15-167 would be a good place to start. Take a look and compare the width and thickness below to your pivot shoe.

Alternate image for 15-167
Alternate image for 15-167

If the plastic housing tube of your balance measures 3/8" in diameter, you would need the S900-27 spiral balances with yellow tips. Take a look and let us know if you need anything else. Thank you!

Quick Learner from Florida

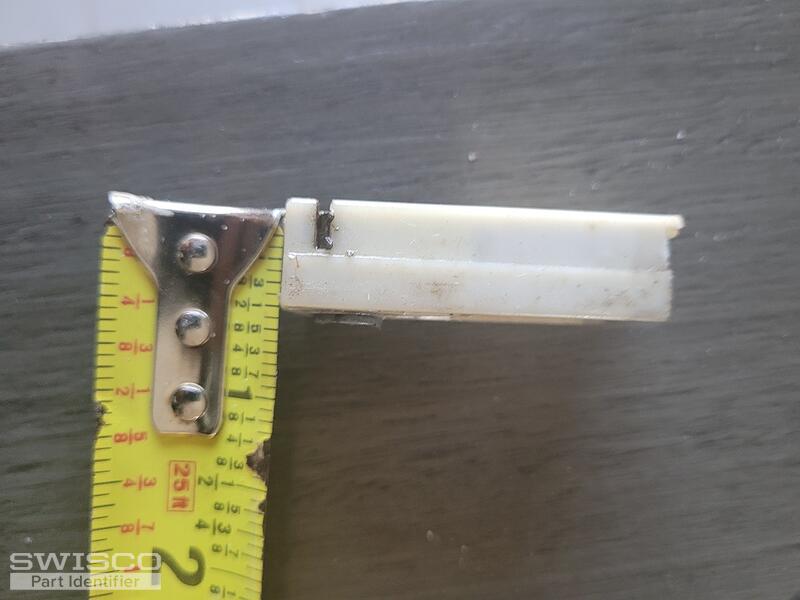

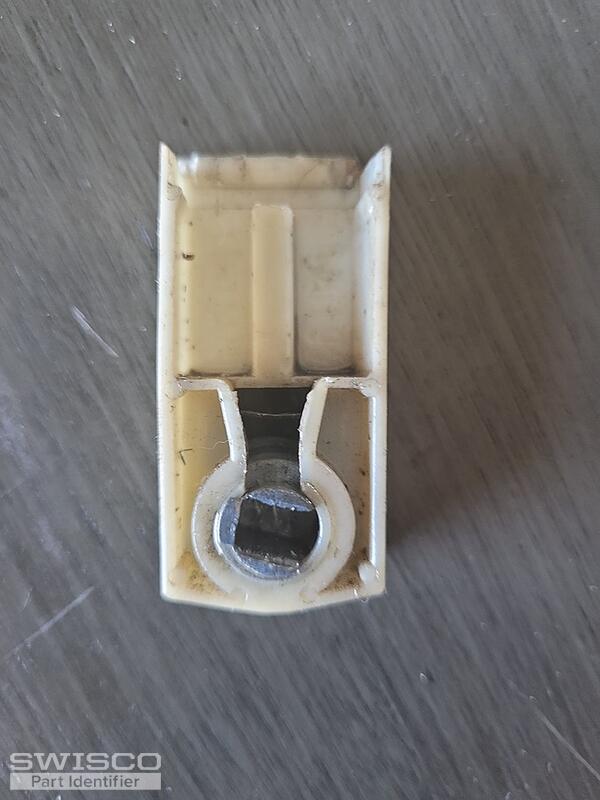

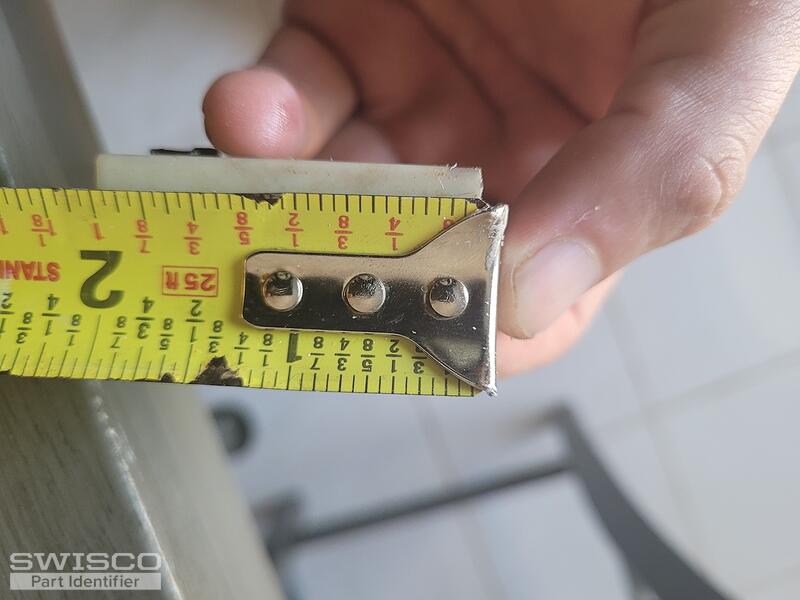

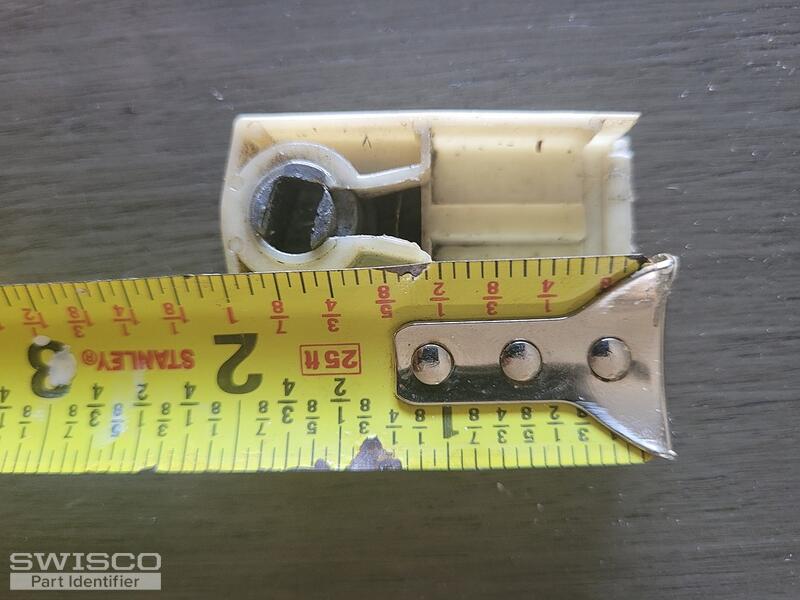

I've attached  the shoe and measurements  I took. Would this help  on which one I need  thanks
5 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Unforutnately, we are not able to make out exact measurements from photos. You'll need to confirm if your part measures 1" wide by 9/16" thick. If not, we'll need you to write out your exact measurements to confirm if a closer match is available.
