Pivot shoe with interchangeable bit

Quick Learner from Toronto

May 23, 2021 1:29 pm

We are looking to replace these pivot shoes. They are designed for interchangeable inserts, but the replacement doesn't need to. It just needs to work with our window.

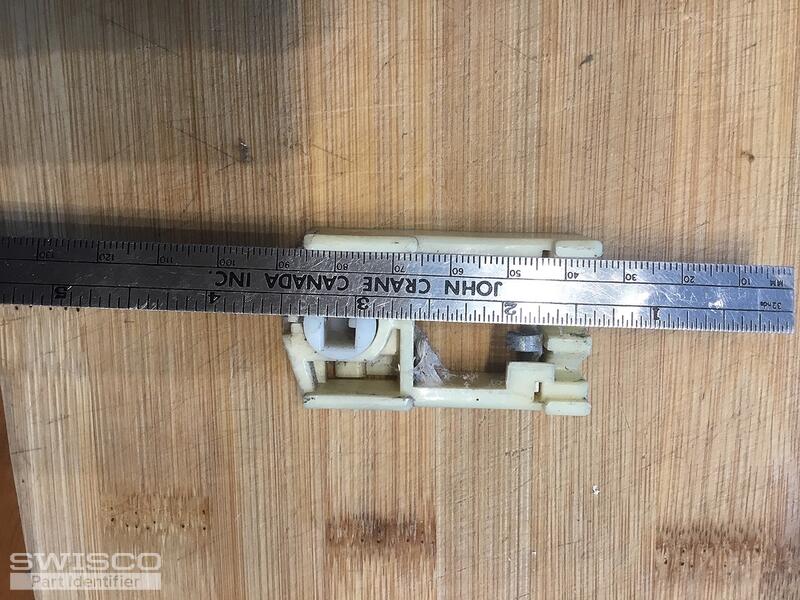

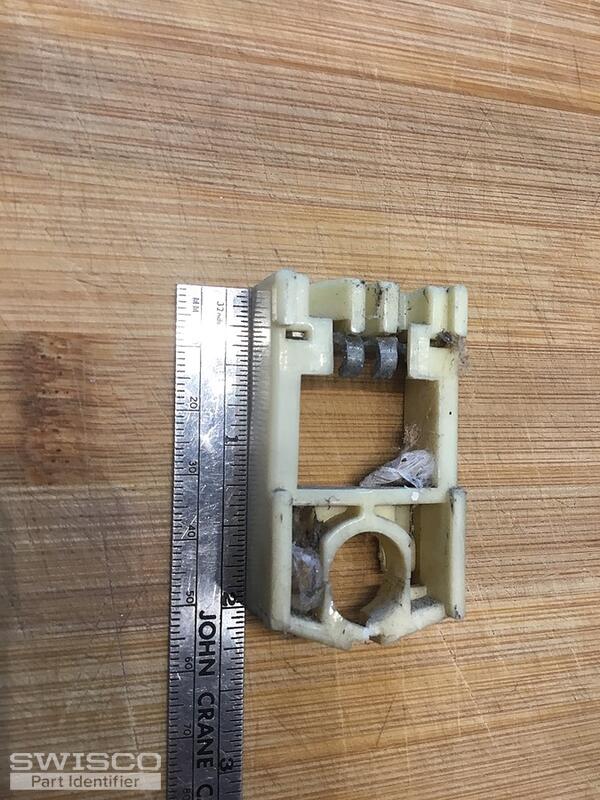

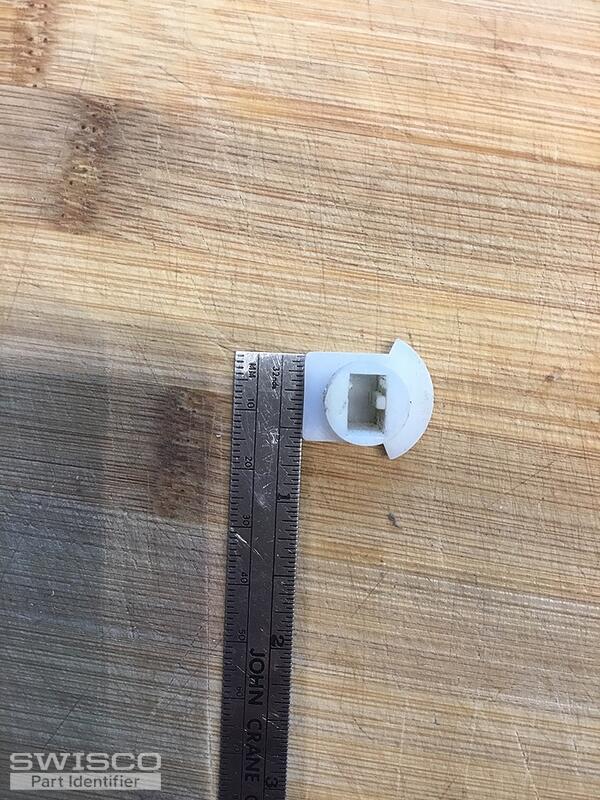

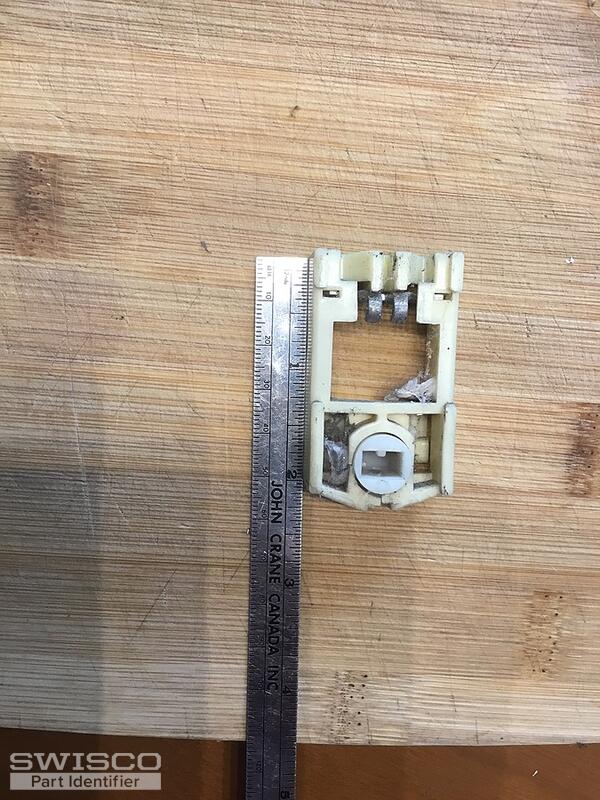

4 user uploaded images

5 Replies

Bob from SWISCO

May 26, 2021 1:32 pm

Can you tell me the width and thickness of the pivot shoe? Those are the most pertinent dimensions. From there we'll do our best to assist you.

Quick Learner from Toronto

May 26, 2021 2:20 pm

Hi Bob, the width is 1.25" and the thickness is 5/8"
Thanks!

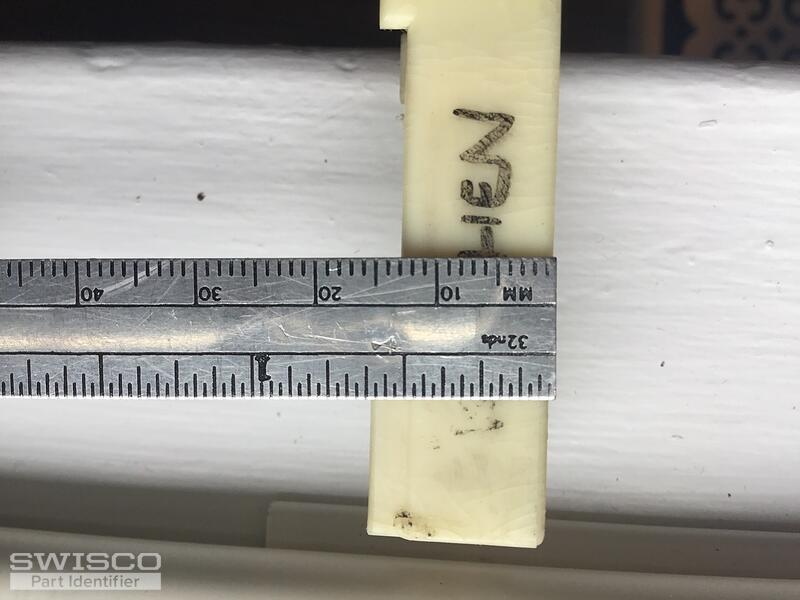

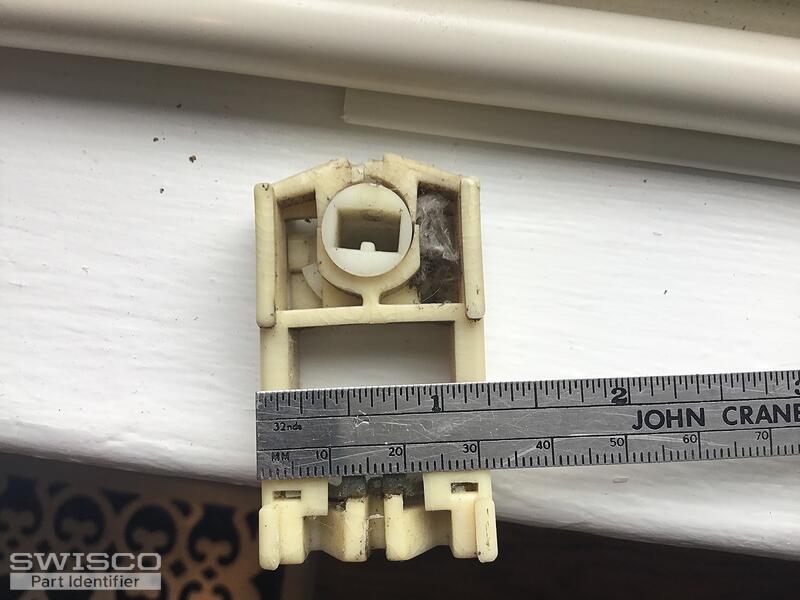

2 user uploaded images

Bob from SWISCO

May 27, 2021 9:42 am

See our 15-047, which has the same dimensions. Look it over and see if you think this shoe could work for you.

Quick Learner from Toronto

Jun 5, 2021 9:12 am

Hi Bob, we replaced the pivot shoes in two windows to try this part out and it worked great! We only needed to flip the pivot rod 180 so it was facing the right way. We are so happy to find that we can repair and don't need to replace our windows! I've ordered enough pivot shoes now to repair the remaining 6 windows in the house!

Thank you to everyone at Swisco
