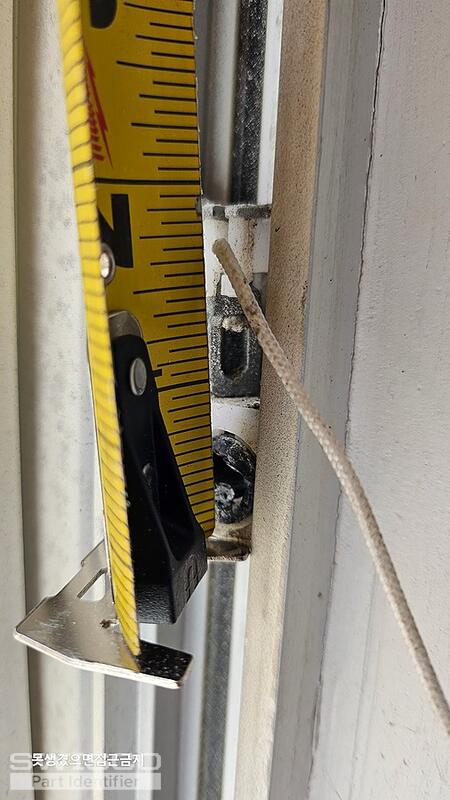

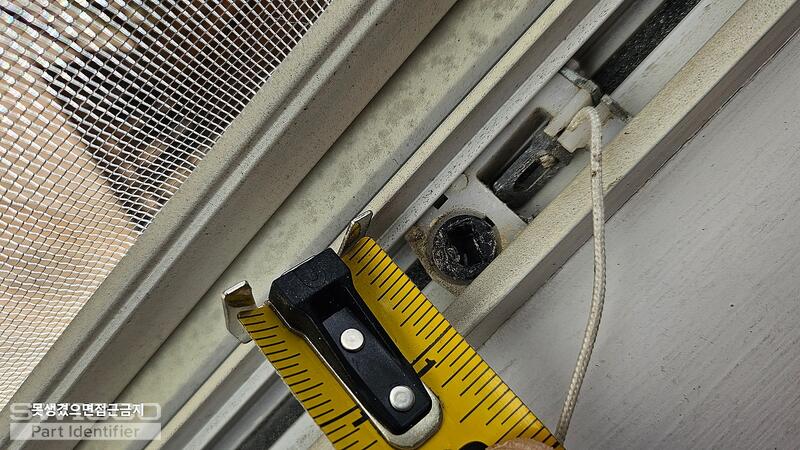

Pivot shoe and ...

Hello, thank you for posting,

Please start by reviewing the 15-212 pivot shoe to see how it compares to your original. The shoe will need to be removed for accurate measurements.

Alternate image for 15-212

For the channel balance, can you provide written out dimensions of the width, depth and length? Please also confirm how it installs at the top. Does it screw in or use a S-clip like the 19-029 or 19-030 to hook into the window. Thank you!

Thank you,

To move forward, please provide written out dimensions of the width and depth of the metal channel.  Please also confirm how it installs at the top. Does it screw in or use a S-clip like the 19-029 or 19-030 to hook into the window.
