Pivot shoe and balances

Handy Person from South Carolina
Looking to match the pivot shoes and balances photo graphed above. Also will need the tool to charge the balance.
3 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for reaching out to us. This appears to be a tilt window spiral balance. If the outer tube measures 3/8" in diameter, see the Series 900. If it's 9/16", see the Series 600 instead. We also sell the 75-006 tool separately.

We're happy to help ID the pivot shoe but it's too obscured by the window track. Can you remove it and show us photos along with the written-out thickness and width?

Handy Person from South Carolina
Hello Emily, thank you for this. What about the pivot shoe?
Emily
Emily from SWISCO
SWISCO
Expert

The pivot shoe is too hidden by the window track so we can't identify it from the given photo, unfortunately. Seeing it removed from the window, along with the dimensions as requested above, will help us narrow down some options.

Handy Person from South Carolina

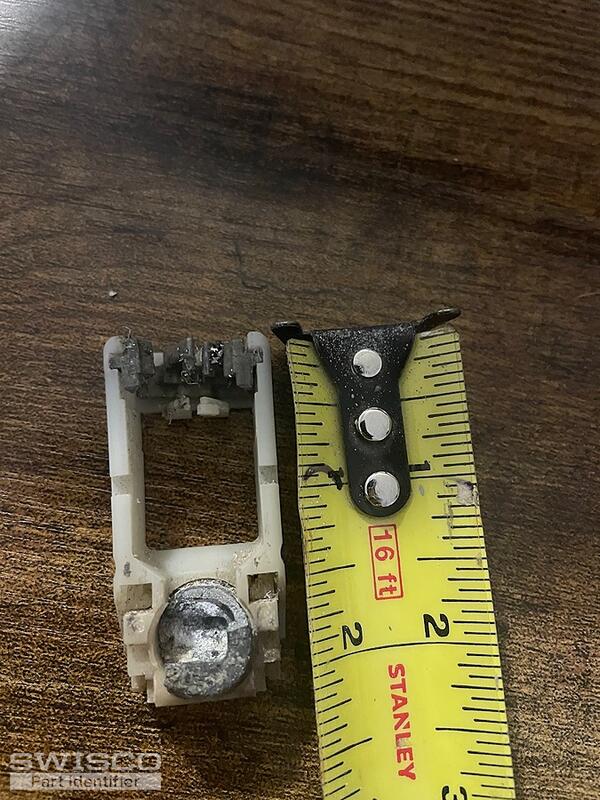

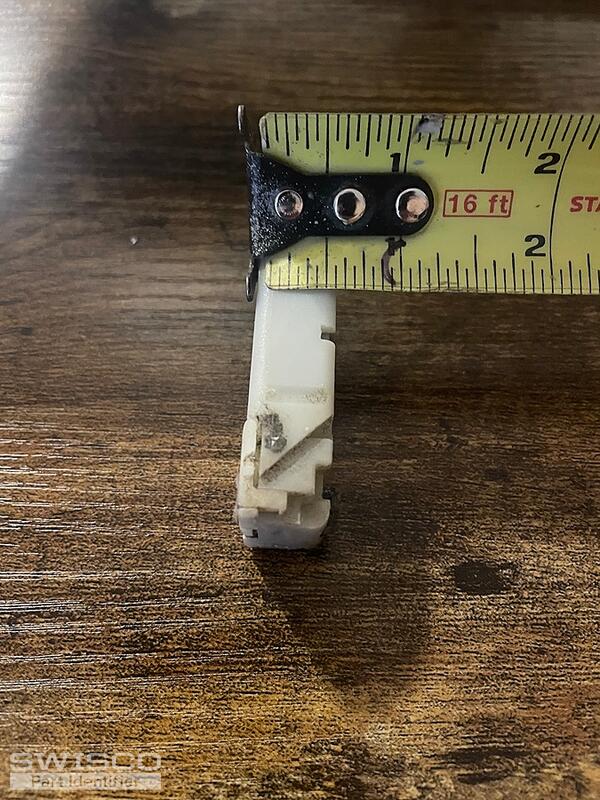

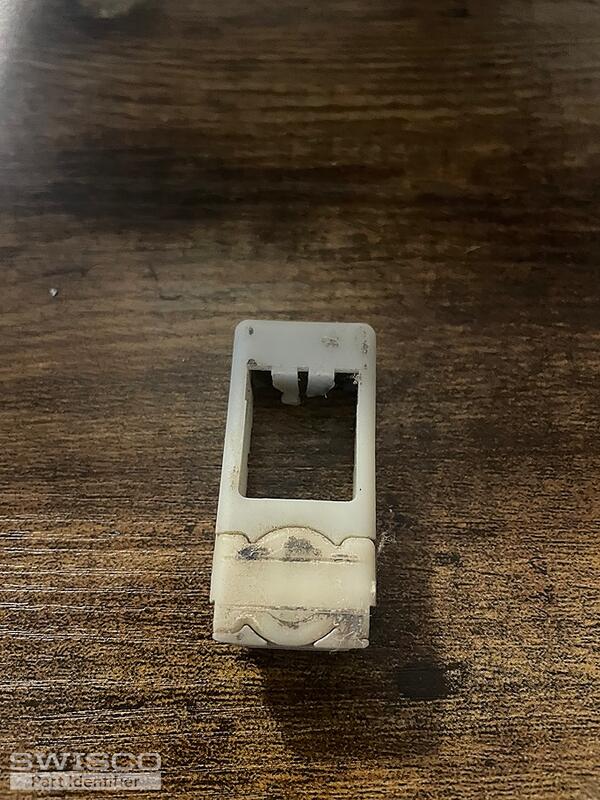

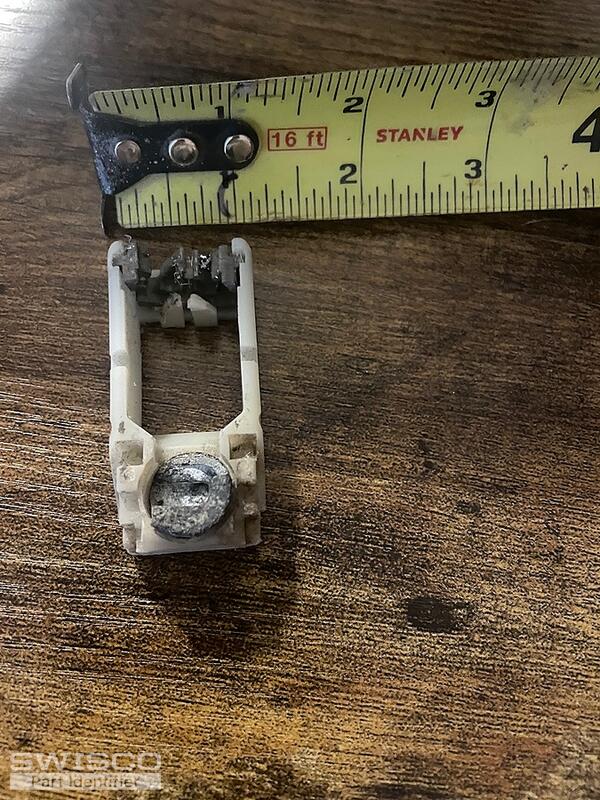

Here is the pivot shoe
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you kindly! We don't sell this pivot shoe but the 15-167 comes to mind. This measures 1" wide and 9/16" thick. Review the specifications and see how they align with yours.

I'm not sure if this will be compatible with your old pivot bar though. May we see a photo of yours removed from the window sash?

Alternate image for 15-167
Alternate image for 15-167

Handy Person from South Carolina

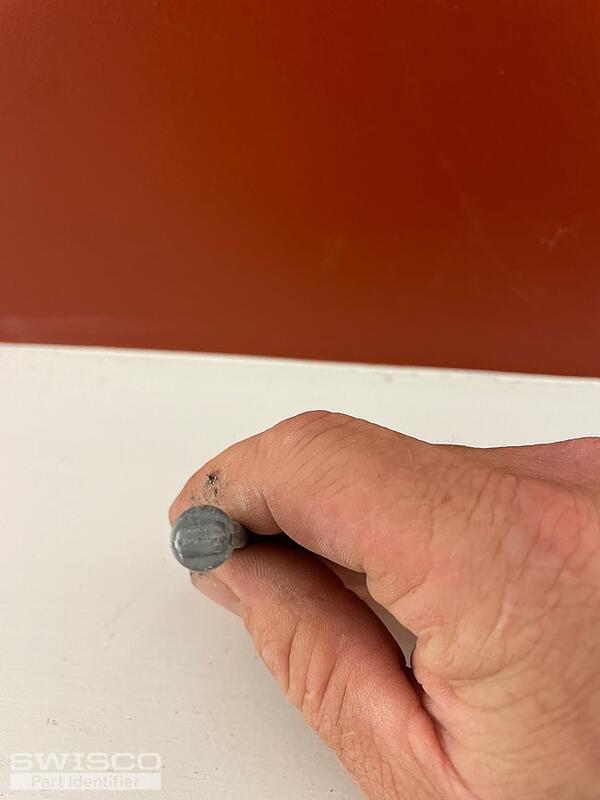

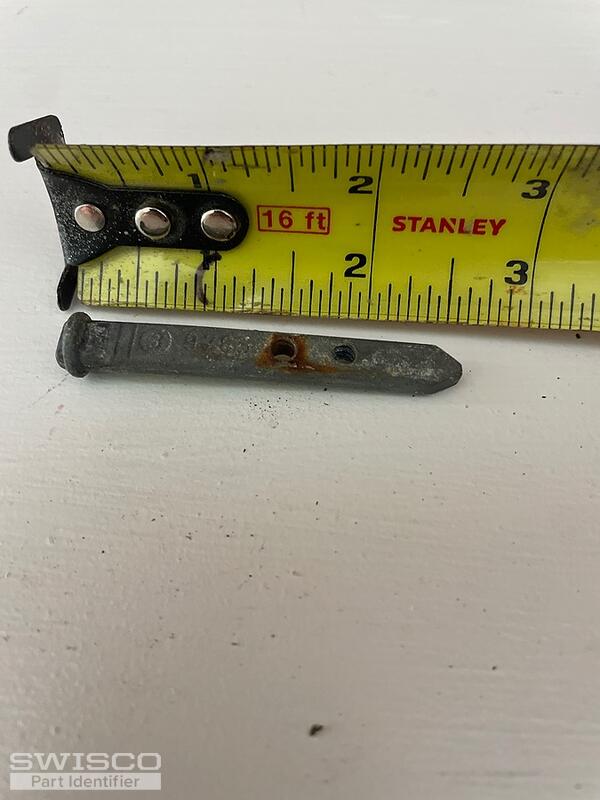

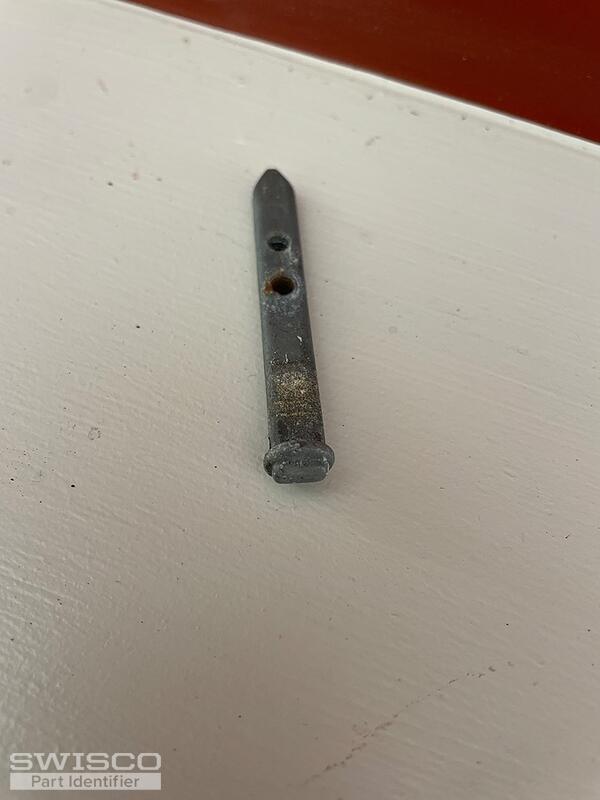

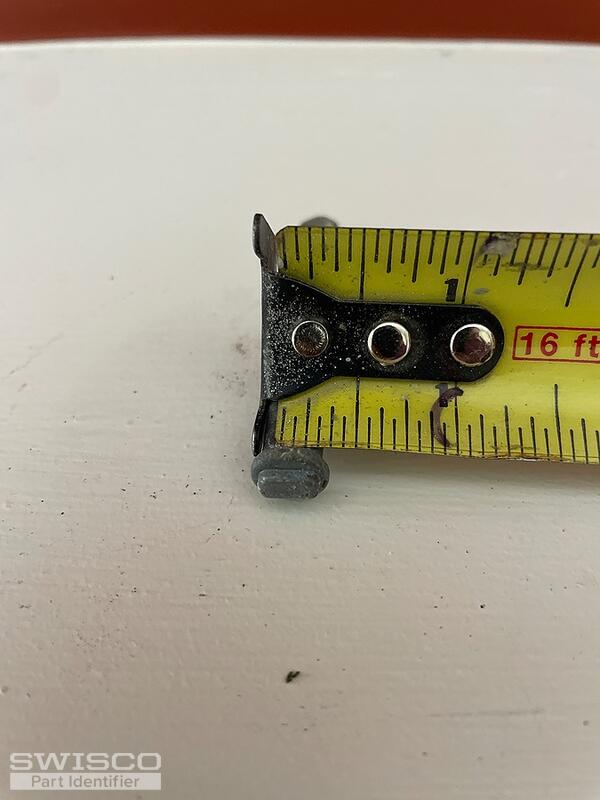

Pivot bar
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Great, thanks! This style of pivot bar isn't compatible with the 15-167 pivot shoe. However, the 26-241 may be worth considering. Take a look and see what you think.

Alternate image for 26-241
Alternate image for 26-241
