Pivot shoe and pin

A quick learner from USA says:
The pivot lock shoe had dimensions of the following:

2 1/8x 9/16 or 5/8 x 15/16

I have attached photos of the shoe.

Also took a photo of the pin that goes in the shoe and the dimensions for it are here:

It's a 2 and 3/8 inch long pin. The head of it is as follows:

Round part. 1/8x5/16. 3/8

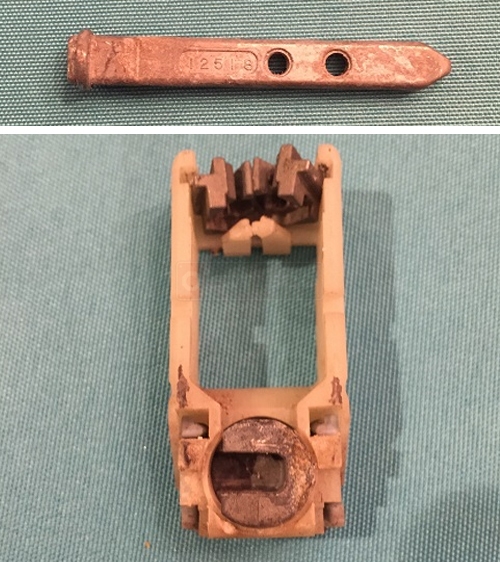

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
Ah, unfortunately, your pivot shoe isn't available. We suggest using our 15-179 pivot shoe with the 26-021 pivot bar as a replacement.
