Pivot shoes

Start a new Discussion

Quick Learner from Connecticut

Sep 4, 2018 4:10 pm

These are off of MW Dual windows. They are pounded in the dash, put a comparable screw in would work as well.

Brandon

2 user uploaded images

5 Replies

Paul from SWISCO

Sep 10, 2018 7:53 am

Thanks for sharing your photos with us, Brandon. We want to see if we can help with some replacement options, but we need some more information from you first. Could you please provide the width of the base that attaches to the wood sash, as well as the length of the tip that comes out from the base? We'd also like to see the pivot shoe that the tip fits into.

Quick Learner from Connecticut

Sep 10, 2018 9:39 pm

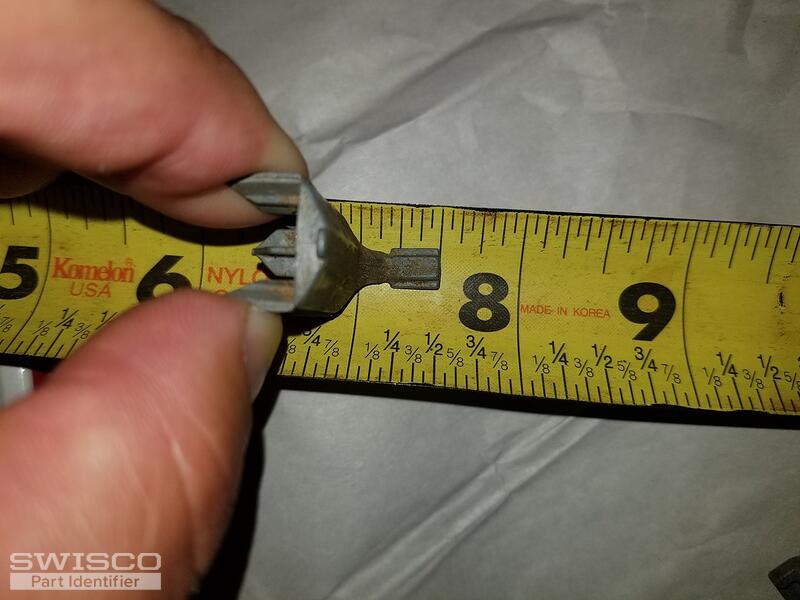

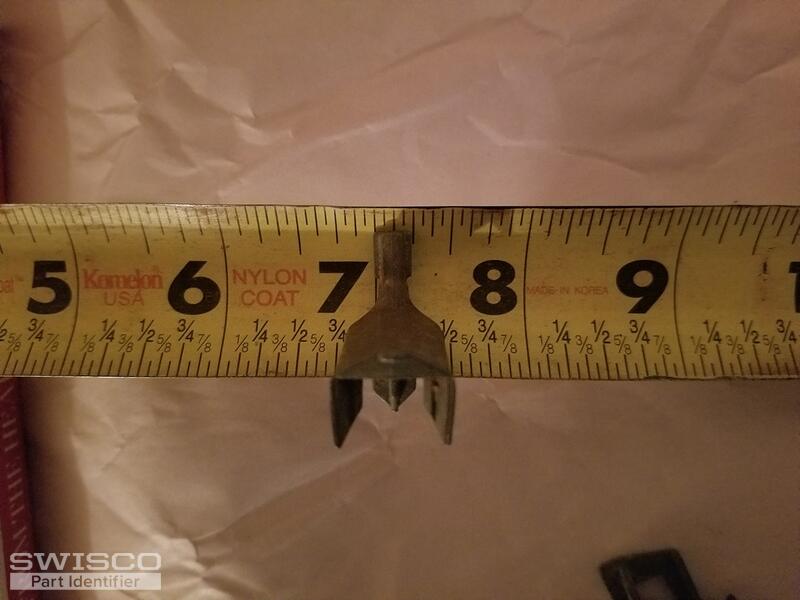

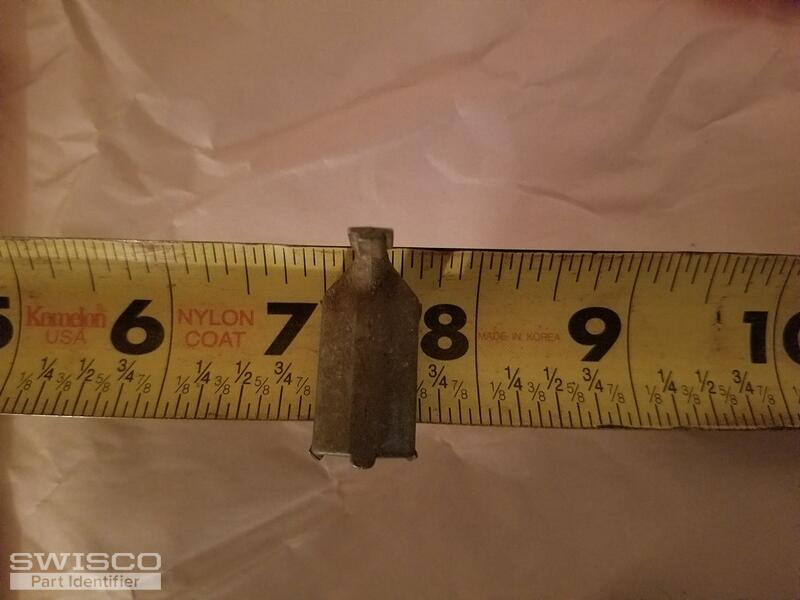

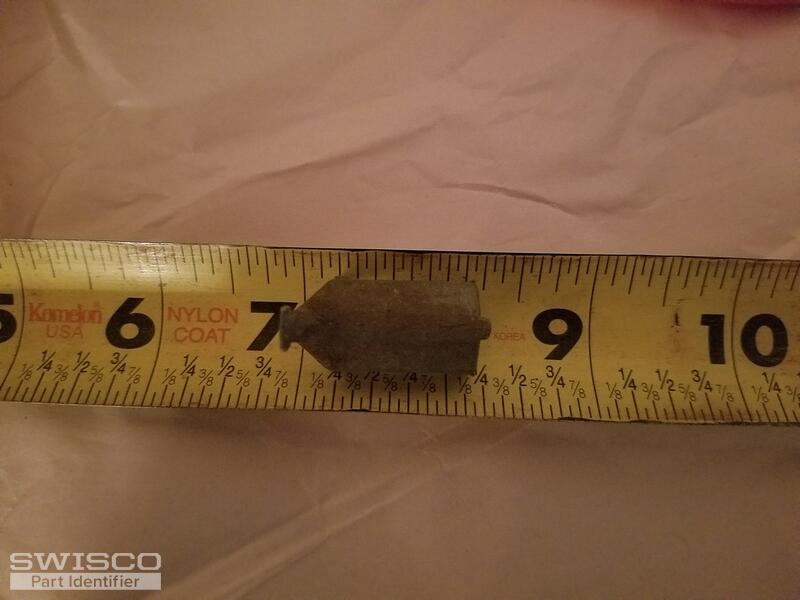

Here are the photos and measurements you requested. The tip length is 1/2" long by 1/4" wide. The sash pin appears to be 1" long by 5/8 base that gets nailed into the side of the sash. I would prefer something that gets screwed in.

5 user uploaded images

Paul from SWISCO

Sep 18, 2018 12:42 pm

We feel our 17-056 tilt pivot might work for your window. The base is 13/32" wide by 1-7/16" tall and the pin itself sticks out 5/8", if you include the base, or 1/2" without the base. Finally, the rectangular shape of the pin is 1/4" by 3/16" high.

See if it will fit in the pivot shoe. You would use a screw and a small nail in the pin to secure it to the sash.

Paul from SWISCO

Sep 18, 2018 12:43 pm
