Pivot shoes, pivot bars, internal latches

Home Owner from Denver

Jul 3, 2017 10:27 am

Hello,

I could really use some help identifying these parts and finding replacements. The pivot shoes are about 4 inches and the bars look to be 2.5. I can remove them if needed to verify. Thanks!
Walt

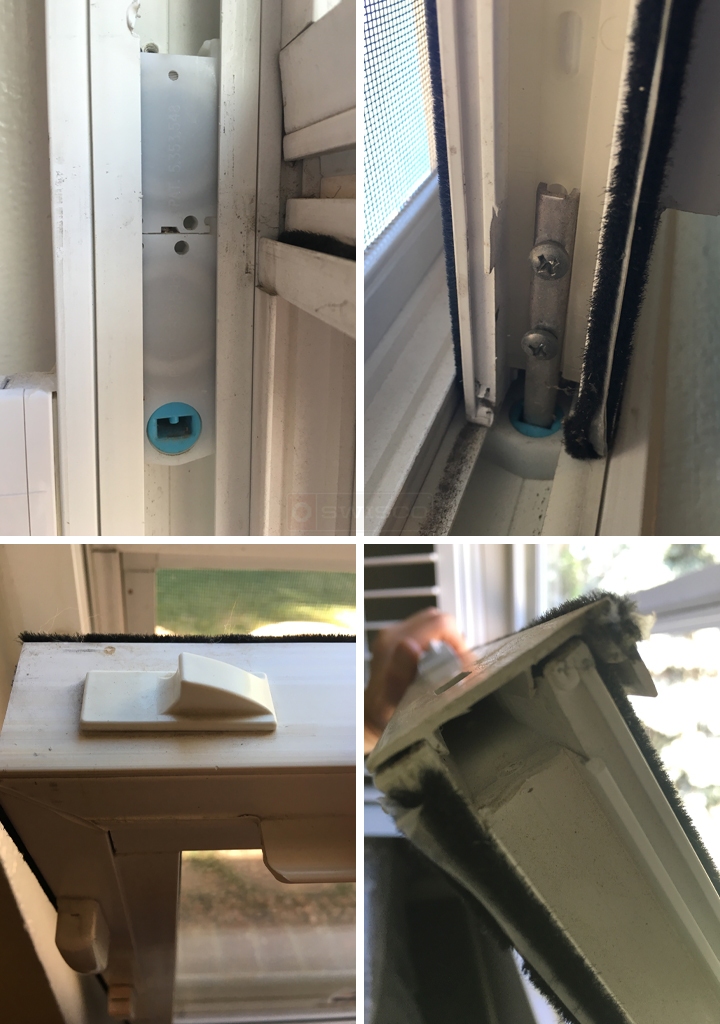

User submitted photos of window hardware.

4 Replies

Tom from SWISCO

Jul 6, 2017 2:24 pm

Please see our 15-087 pivot shoe and 15-086 pivot housing. I don't know if you need the springs, but these are designed to work with our Series 180 coil balance. for the pivot bar, see our 26-063.

Home Owner from Denver, CO

Jul 6, 2017 3:20 pm

Thanks so much Tom. Do you know which pivot tabs would go with these other parts or do you need more pictures?

Thanks again,
Walt

Tom from SWISCO

Jul 10, 2017 12:30 pm

Are you referring to the internal tilt latch? I'm afraid we don't have an exact match for your part. To be honest, you may be better off substituting with a surface mount tilt latch. These are different than the others in that they just screw on. We have a video tutorial that shows how we do this. We find it to be an easier solution for sashes like yours. Let me know what you think!
