Pivots

A quick learner from Philadelphia says:
November 4, 2020

Hello. I'm looking to replace the broken pivots in 2 of my windows I'm sending you a picture of them. The window maker is Crystal windows

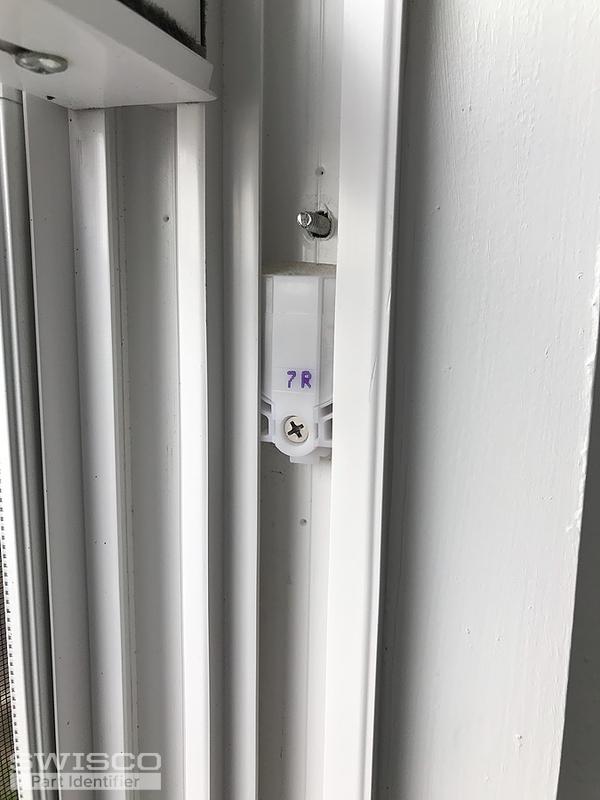

Also I need to replace on 2 windows, the window elevator 7R , I send you a picture too

Please feel free to contact me anytime

Agustín

Thank you

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named 85A40511-A08A-417E-9F0B-5DDA8DF09F2C.jpeg
Profile picture of Casey
Casey from SWISCO responded:
November 9, 2020

Hello,

We'd be happy to help but to identify your coil balance, we would need to see the coils inside the housing and the pivot shoe they attach to removed from the window. We'll relate a few videos to assist you.

As for the pivot bar, the best match will depend on the hole center placement. Yours looks to be 1-3/8" from the center of the hole to the tip, but I can't be 100% sure based on just a ruler. If it is, then you could use our 26-021.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
