Placement of washer and screw

Quick Learner
I’m installing a new key lock and please let me know where the washer and screw goes. Thanks in advance for your reply.
Kind regards, Matthew.
2 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

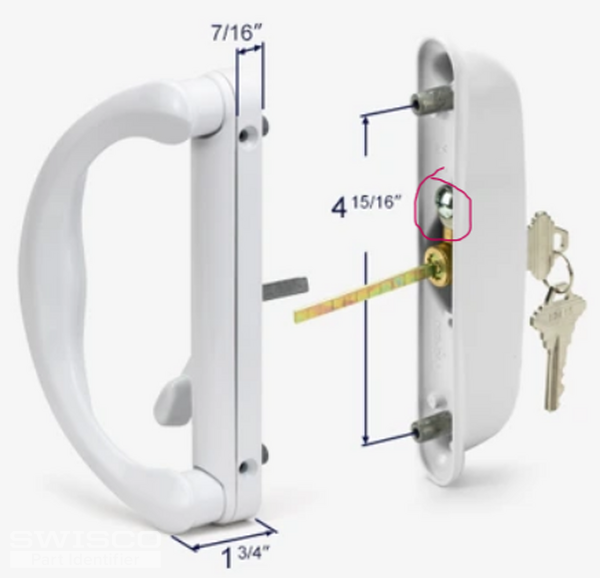

The screw and washer are used to anchor the key lock to the 82-081 external handle as shown below. Just let us know if you need anything else.

Washer
