Plain Channel Balance end attachment

Home Owner from Western Connecticut

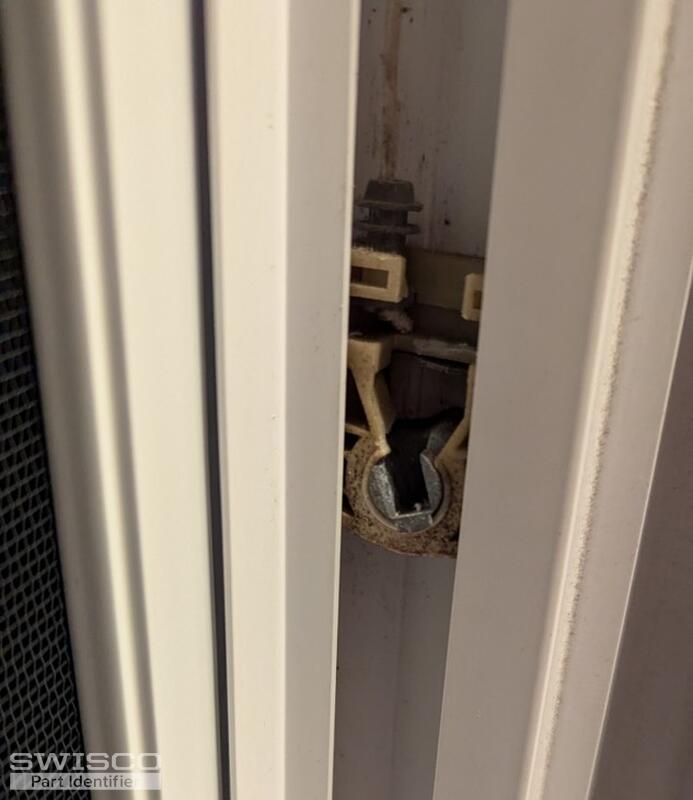

I have a broken plain channel balance where the end fitting has come off. I don't see a simialr match on your site. The closest seems to be your S770 (22") but that is shown with the 15-043 terminal clip. My wondows have a small cast fitting that goes into the pivot lock shoe. The fitting looks similar to your 15-044 balance attachment. Can the terminal clip be swapped for the balance attachment?
4 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Thanks for your patience during this busy season. I agree, that appears to be our 15-044 balance attachment. We can make you a balance with this piece attached, but only as a custom order since it's not a stock assembly.

If that interests you, please tell me the stamp printed on your balance and tell me how many you wanted to purchase. With that, I can email you a purchase link and price quote that you can use to place an order on our site.

Home Owner from Western Connecticut
Hi -
Thank you. The balance is stamped "22C". I would need 2 pieces.
Tom
Tom from SWISCO
SWISCO
Expert

Great, thanks! I'll go ahead and email you that purchase link now.

To clarify what we're making, this will be our S770-22 with a 22C stamp and the bottom terminal clip swapped out for our 15-044.

Please let me know if you had any other questions and I'd be happy to assist.

Home Owner from Western Connecticut
As a follow up - I ordered (and received) the parts with the 15-044 balance attachment. It all fits and the window works well.
Thank you very much for the help.
Tom
Tom from SWISCO
SWISCO
Expert

That's fantastic news! Thanks so much for the update and please let us know if we can offer any further assistance.
