Mepla plastic drawer socket

Home Owner from Topsfield, MA
Markings - mepla, high point, USA. 600.010.02.00
Base- 1 inch wide, 2 1/2 inches long, 1/8 thick
Socket- 2 1/4 inches long, inside socket 1 1/8 inches, outside 7/8 inches

Arm- 21 1/2 inches overall, 1 inch wide, front lip 1/8 inch, bottom of lip to base 3/4 inches

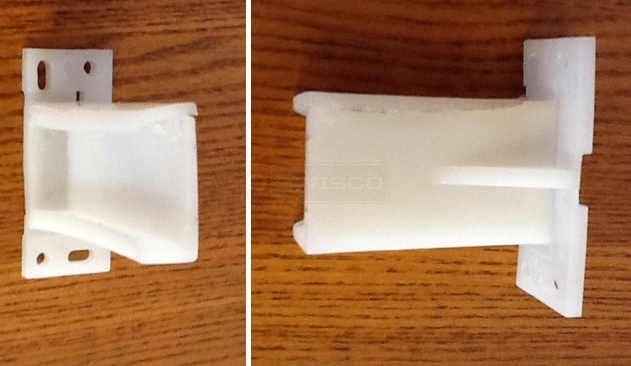

A customer submitted image of their drawer socket.
5 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Hey, thanks for posting. I think you might want to take a look at our 32-012. Compare the measurements to see if one of these could work as a replacement.
Home Owner from Hazelwood, MO
I have this same part pictured above 600.010.02.00 and need a replacement did the part 32-012 work as that piece
Handy Person from Watertown, CT
Hi,

I have the same part pictured above 600.010.02.00, but the manufacturer is Lomepedia, High Point, USA. I'm also looking for a replacement. The 32-012 doesn't appear to be dimensionally the same. Are there other options available?

Thanks.
Bruce
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Bruce. I'm sorry to hear that the 32-012 size doesn't match. Would you be able to provide precise dimensions for your own socket so that we can find a better option? Please note that the most important dimensions to consider are the height and width of the opening that takes the track. Everything else can be worked around.
