Plastic Top Sash Guide

A quick learner from Cape Coral, FL says:
October 24, 2022

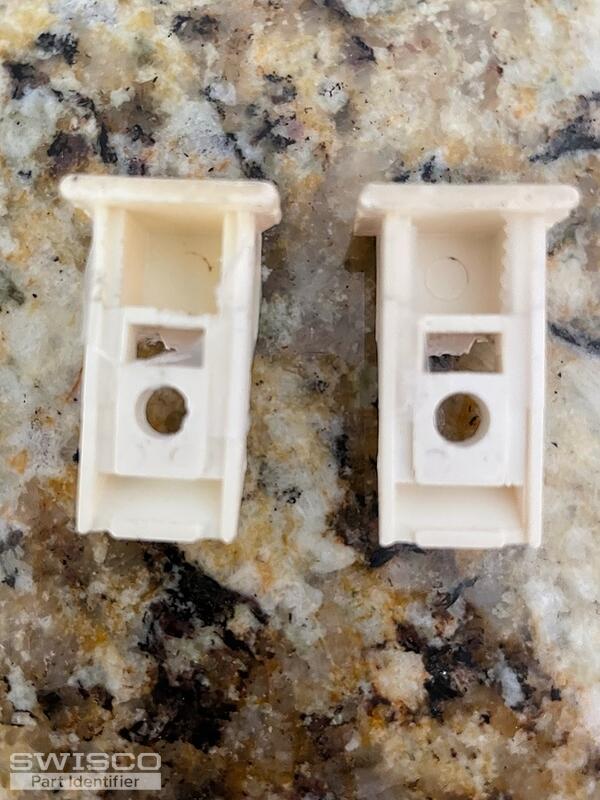

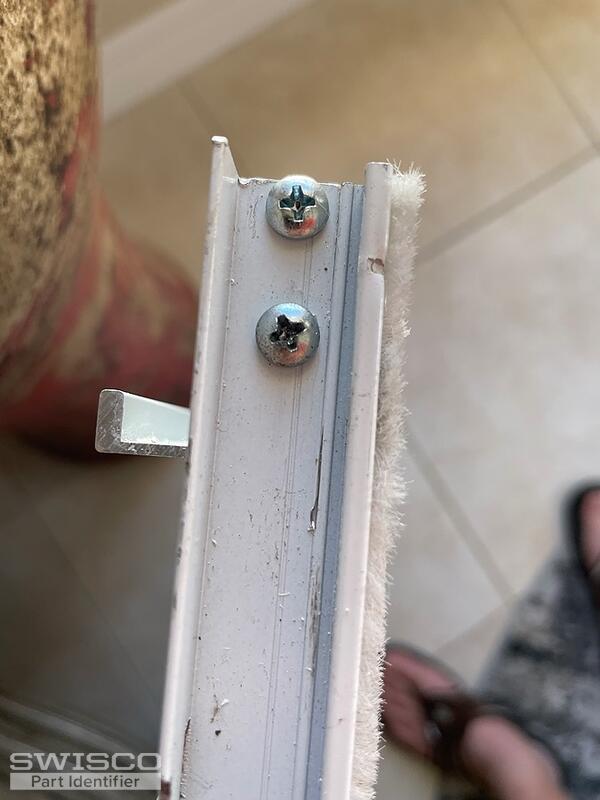

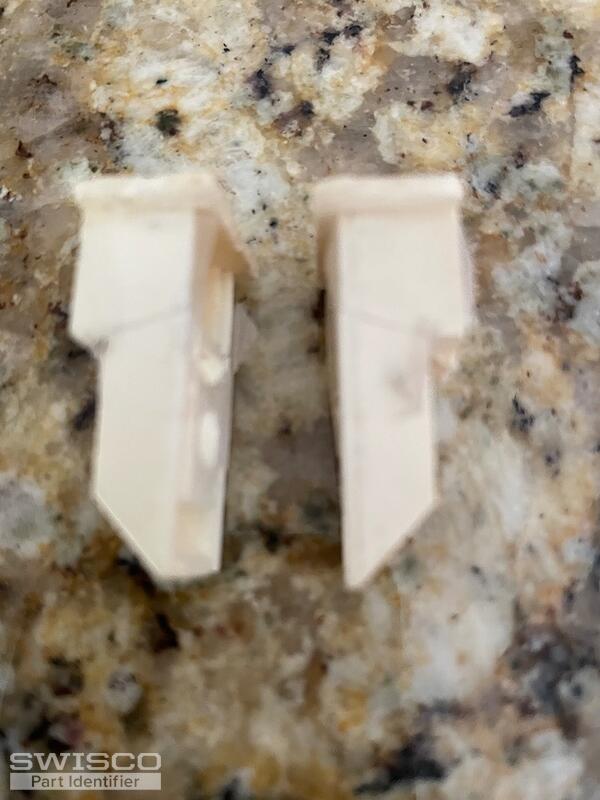

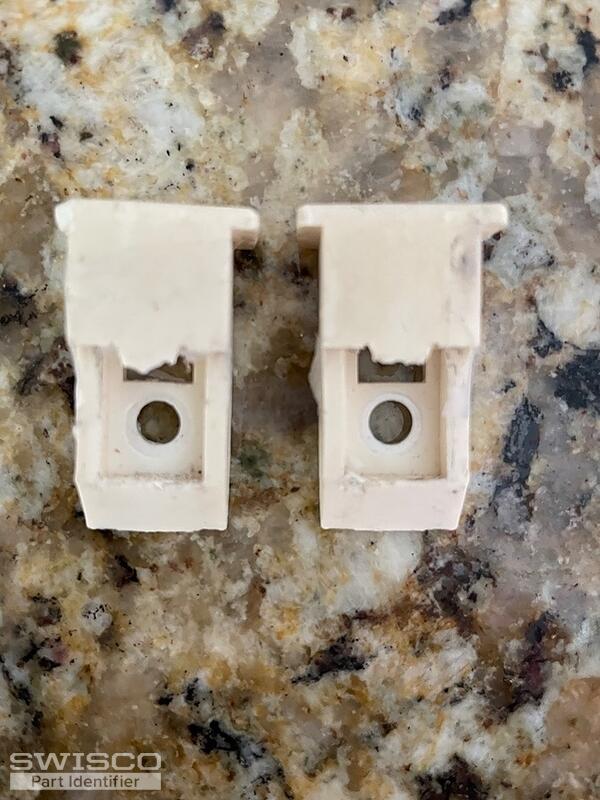

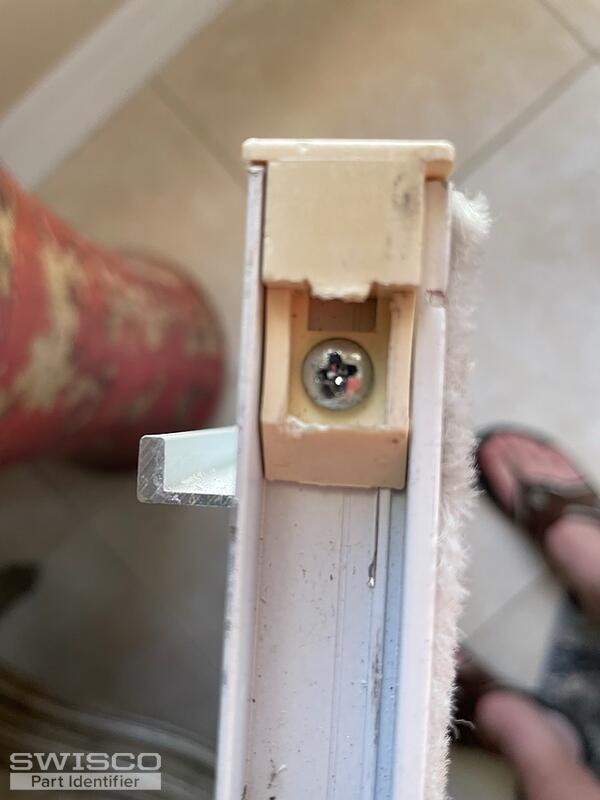

Hello??hoping that you can identify which top sash guide is for my window. They both snapped in half when I was opening & closing the window. I was able to take tape them back to show the shape of them. I also took measurements.

The length is 1 3/8 "

Top to screw hole is 7/8 "

Top of cap length is 7/8 " ( just shy of the measurement )

The width of the top of the guide is 1/2 "

The width into the widow channel is 5/8 "

We are in Cape Coral FL & trying to repair and get back to some sort of normalcy.

Greatly appreciate your helping me.

Mike

Thumbnail of the uploaded file named 852B3CE0-A3DF-4141-A533-10BF38F7B7E3.jpeg
Thumbnail of the uploaded file named A4D43D50-DC1B-4089-BAC6-BDF3773933EC.jpeg
Thumbnail of the uploaded file named B929921B-38E5-4FD4-B1DD-5CA385111DD0.jpeg
Thumbnail of the uploaded file named 775B964D-8314-49CD-AC25-2C0342F5A6B5.jpeg
Thumbnail of the uploaded file named 9A3D2294-DAB8-4748-AE3E-3E6A7F6F1A2D.jpeg
A quick learner from Cape Coral, FL says:
October 26, 2022
You are requesting measurements??.See my above measurement and drawing
Thumbnail of the uploaded file named 19441566-BC13-4471-AA03-F7C2439147C8.jpeg
Profile picture of Paul
Paul from SWISCO responded:
October 28, 2022

Hello,

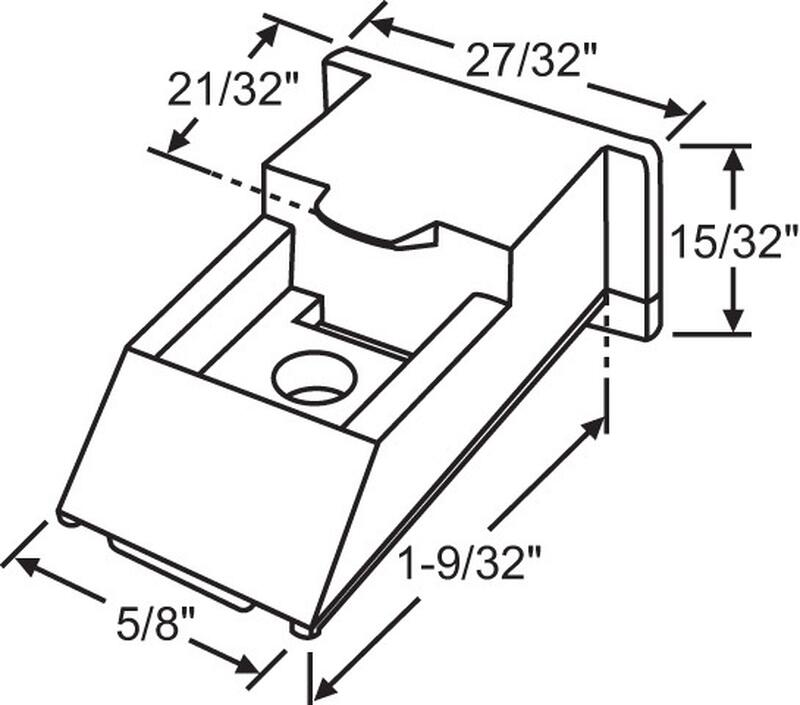

Please take a look and compare our 18-201 top sash guide to yours. The dimensions are very close and we believe that this may work for your repair. Thanks for posting.
5/8" Sash Guide, Lawson
5/8" Sash Guide, Lawson
18-201
$1.33
