Plastic insert or window crank : SWISCO.com

Quick Learner from Medford, NJ

Jun 20, 2021 12:38 pm

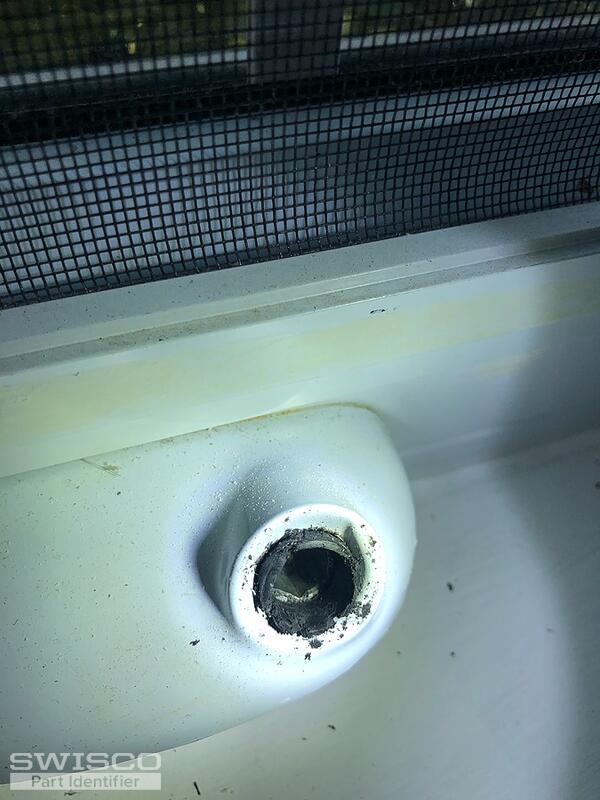

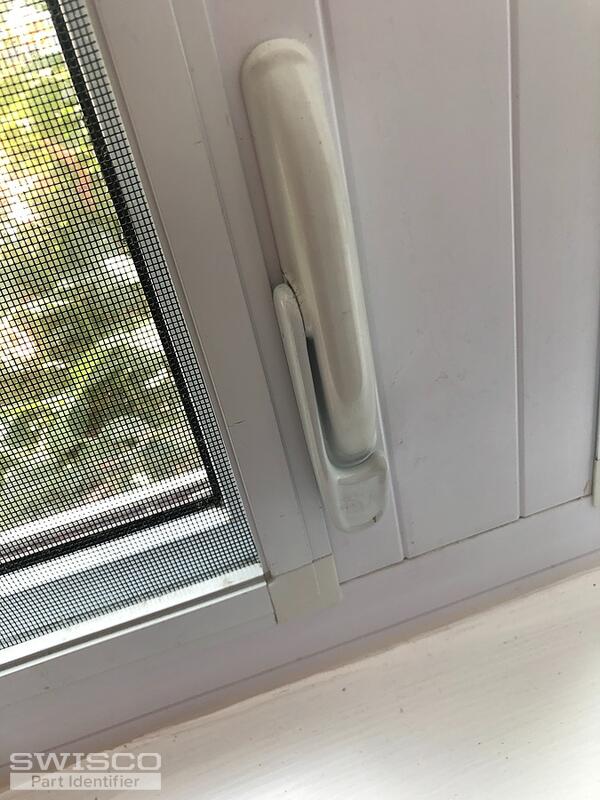

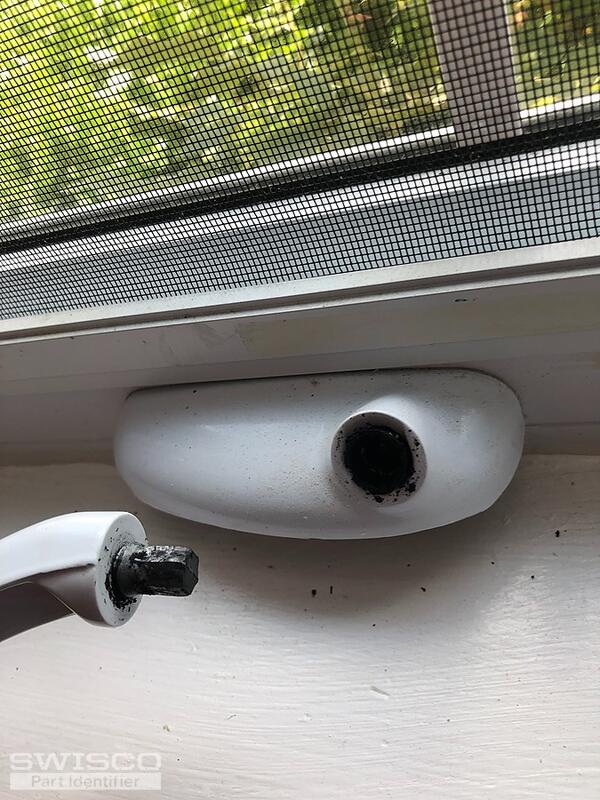

Looking for two crank sets. The plastic retainer is worn and the handles come out easy. Not sure if the plastic insert is serviceable or if the whole crank needs replacing. What else can I provide to help identify these.

3 user uploaded images

6 Replies

Emily from SWISCO

Jun 22, 2021 3:21 pm

Hi there!

We'd be happy to help, but we'd like to see a photo of your operator with the window open so that the arms that move the sash are fully visible.

Thank you so much!

Quick Learner from Medford, NJ

Aug 11, 2021 1:45 pm

Hello

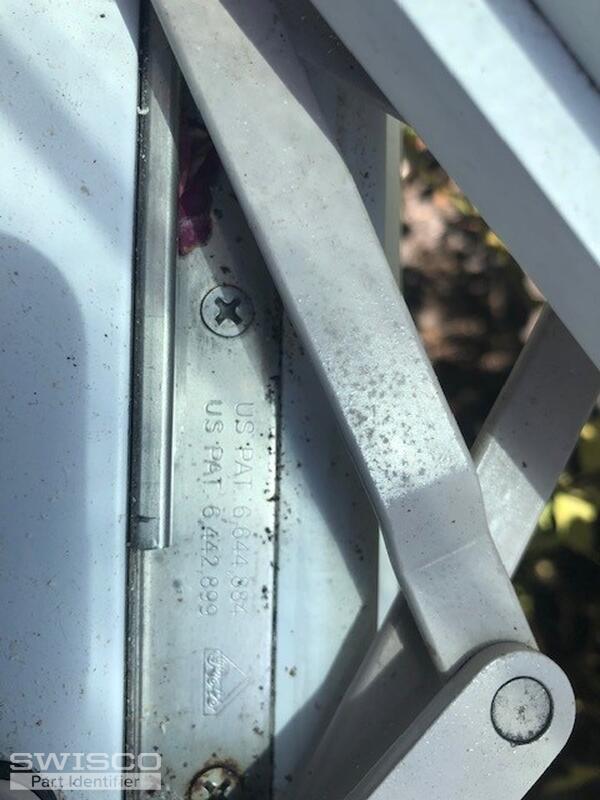

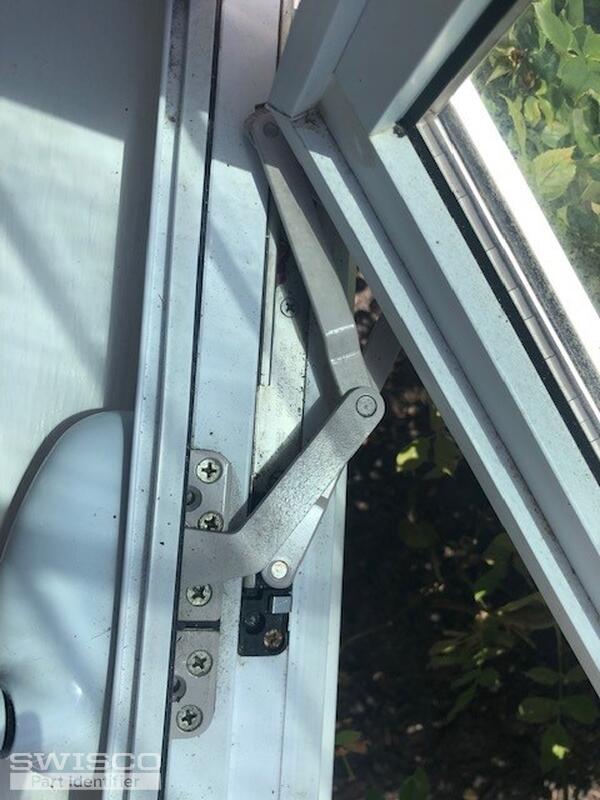

I have included pictures of the operator. Some identification is embossed on the arms.

Thank you,

Chuck

2 user uploaded images

Emily from SWISCO

Aug 12, 2021 9:28 am

Thanks for the additional pictures, Chuck! They help a lot.

It looks like you might have our 39-325 and 39-326 operators. Carefully review our dimensions and compare them to your original assembly to see if this matches what you need.

Dimensions for 39-326

Quick Learner from Medford, NJ

Aug 17, 2021 6:56 am

Hello

I would like to confirm before I order that this operator does not come with a crank arm and the 39-114L is the correct one to order.

Thank you

Chuck

Emily from SWISCO

Aug 17, 2021 9:31 am

Hey, Chuck.

Our 39-325 and 39-326 operators do not come with a handle. These operators use the 39-232 handle, which fits a 11/32" spline.
