Plastic parts that hold metal locking mechanism

A home owner from Mankato Mn says:
I am looking for these parts...
Need 6 of each

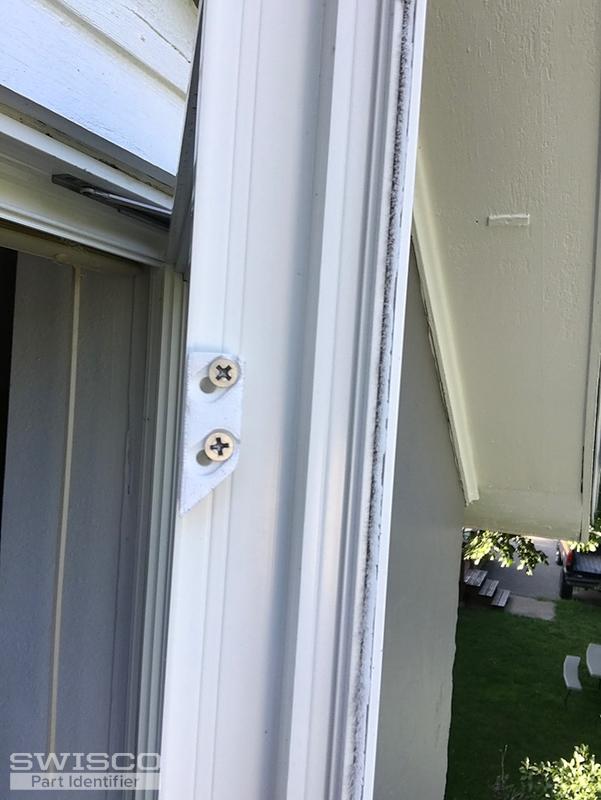

The last three pictures are the same part that holds the metal locking mechanism.


The first two pictures are the same part, connected to the window and hold the "knobs" on the metal locking mechanism. Thanks for your assistance. Greg
Thumbnail of the uploaded file named B371EBC2-2713-44EB-9413-2893D6B27FF3.jpeg
Thumbnail of the uploaded file named 73278B70-15D5-4727-BBC6-744BBD50CCB7.jpeg
Thumbnail of the uploaded file named FB3FEAD3-1682-47C3-B7EA-7248461F9B75.jpeg
Thumbnail of the uploaded file named 04F67EC4-C3AE-4B96-9E38-325180455CD6.jpeg
Thumbnail of the uploaded file named EE186722-79D7-4259-AE8E-85B74BB0CDC7.jpeg
Profile picture of Tom
Tom from SWISCO responded:

This part is known as a tie bar guide. Yours in particular can be replaced by the 39-417. I know it looks different, but it serves the same function and should work the same way.

A home owner from Mankato Mn says:
Thank you for your Reply... I also need the cleat that secures the Knobs tie bar . Thanks for your assistance!! Greg
Profile picture of Tom
Tom from SWISCO responded:

Whoops! Sorry for missing that. That would be our 38-131 and 38-130.

A home owner from Mankato Mn says:
Need to add a couple more parts

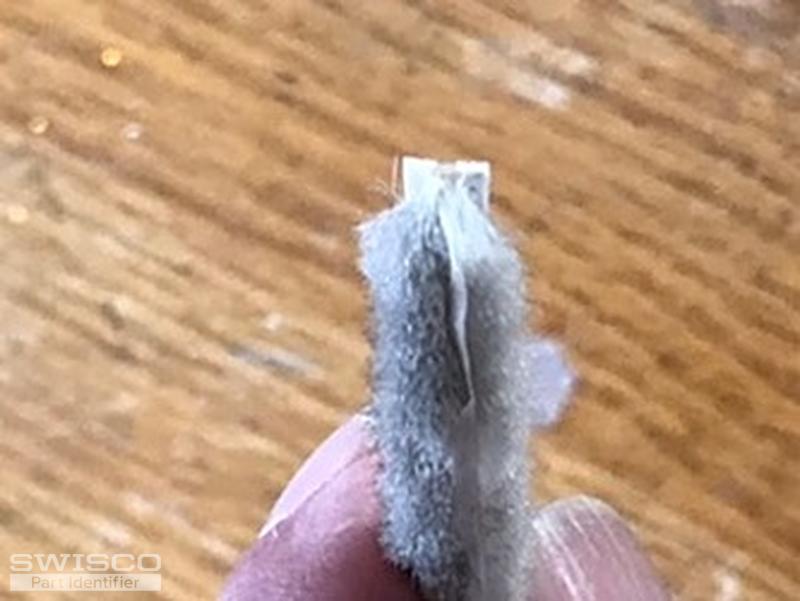

- weather stripping

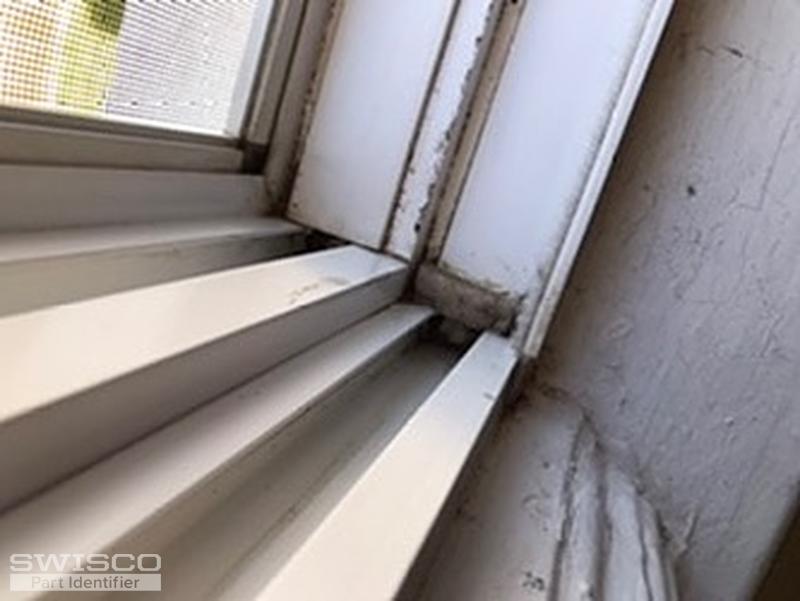

- corner weather stripping (double hung)
- corner connector for screens

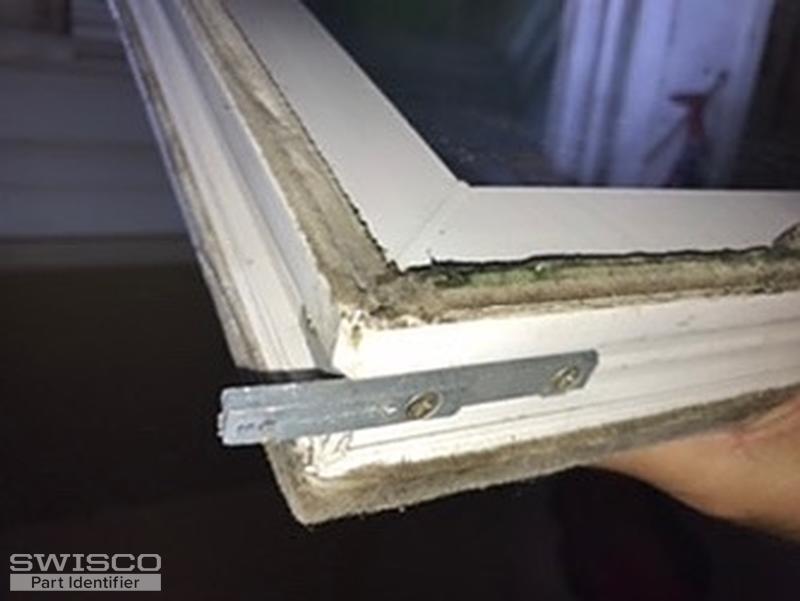

- post connector for double hung
Thumbnail of the uploaded file named 6D0332F0-ED5E-4991-8C81-BEA01911EBCE.jpeg
Thumbnail of the uploaded file named E00A114D-B59C-4D01-96AA-1048A503F3CF.jpeg
Thumbnail of the uploaded file named E6C8C2C9-0A77-41A9-BA53-12DE4316EFFD.jpeg
Thumbnail of the uploaded file named 5DB0C06B-26DB-49CA-BFE7-31014B491BF4.jpeg
Thumbnail of the uploaded file named 80BEB11B-0547-4BDC-93A1-894969DFF2C5.jpeg
A home owner from Mankato Mn says:
One more thing...
- is there a retaining ring that holds the bracket to the post? Or does the whole mechanism need to be replaced?
Thumbnail of the uploaded file named 31643DEB-0BAA-4769-9E7B-7BF9C4E08E5C.jpeg
Thumbnail of the uploaded file named 0C4EE45D-BD2F-43F7-BC01-88F7997F41F8.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello again. The pivot bar in your first picture looks like a match for our 26-357, but I don't recognize the pivot bar in the second picture. I need a clearer shot of an undamaged version if you have one.

I don't know what your corner or wool pile could be. For the corner, please tell me the width and thickness of the screen frame. For the wool pile, I need the width of the base and height of the pile. Please be as precise as you possible can, especially for the wool pile.

Concerning your operator, there could have been a clip at the end of that arm. We do sell the 39-105 detach clip, but since yours is missing I can't confirm that this was what you had.

A home owner from Mankato Mn says:

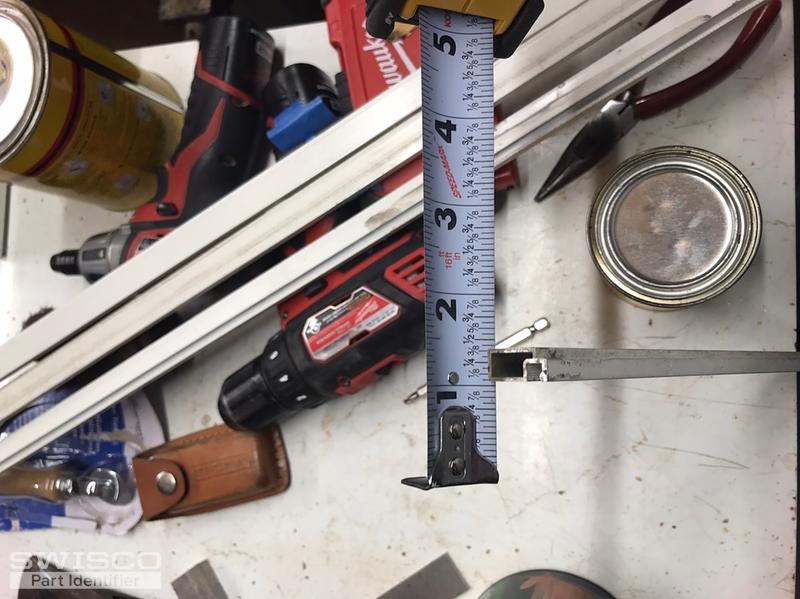

I am missing your last reply that included the weather stippling... need the 3/16 base with the 1/4 length of pile with the plastic fin. The screen frame has an outside dimensions of 3/8 x1/2 & Inside dimensions of 1/4 x 3/8. Thank you... this service you provide is truly helpful.
Thumbnail of the uploaded file named 061CA36A-0221-455D-8638-0F2C6FEC0F36.jpeg
Thumbnail of the uploaded file named 7013F2CC-482A-45E5-A8C9-0641169F2938.jpeg
Profile picture of Tom
Tom from SWISCO responded:

For the Wool Pile, see if the 58-127 matches up. For the corner key, if the frame is 3/8" thick then one of the corner keys here might work as a replacement, but you'll need to compare their dimensions with your old key to see if any matches. Pay close attention to the width and thickness of the legs.
