Plastic sliding glass door handle

Quick Learner from Kailua, HI
The entire handle broke off which holds the locking mechanism
3 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We don't sell your exact handle but we might still be able to help. Can you write out the distance between the two installation holes, measured from center to center?

Quick Learner from Kailua, HI

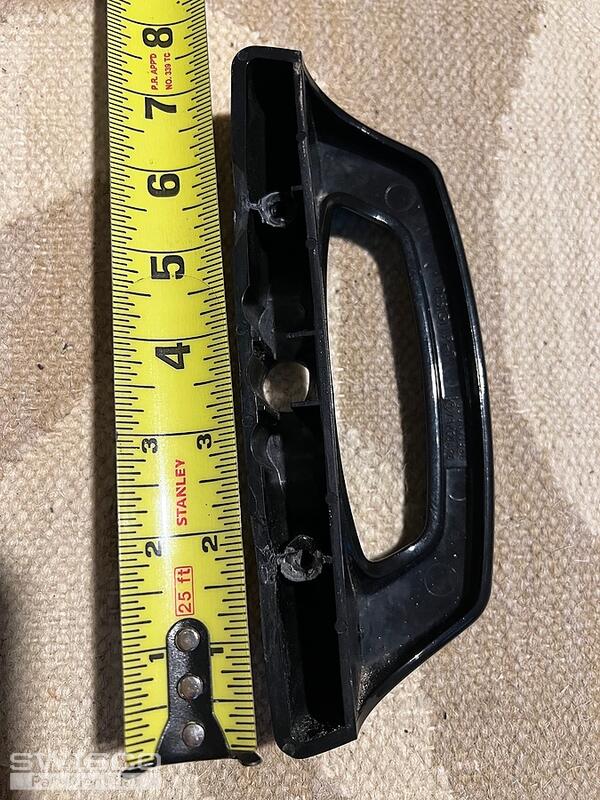

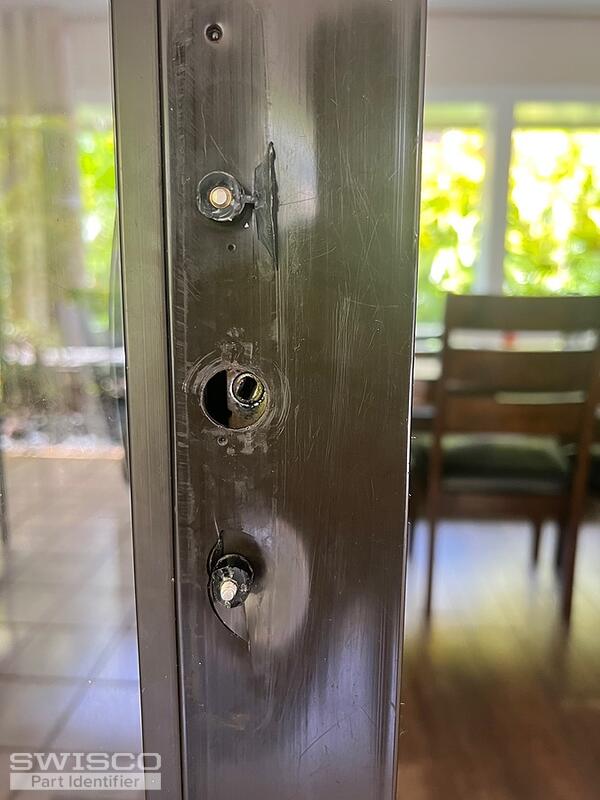

I hope these photos will be what you need.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

I'm afraid these photos don't tell us anything new. Is the installation hole center spacing 3-15/16"? If it is, you may be able to use the 82-030. Please note, we do not sell dummy handles, which appear to be what you have in your photos. However, the 82-030 can work in that capacity as the included thumb lever is a separate part that can be discarded. At that point, it would simply be an exterior and interior pull handle.

Quick Learner from Kailua, HI
When you say "installation hole" are you referring to the holes above and below the center lock? So I would need to measure from the center of the top hole to the center of the bottom hole? If so, then yes it measures 3-15/16". And when you say "dummy handles" do you mean generic handles? Thank you for the clarification.
Emily
Emily from SWISCO
SWISCO
Expert

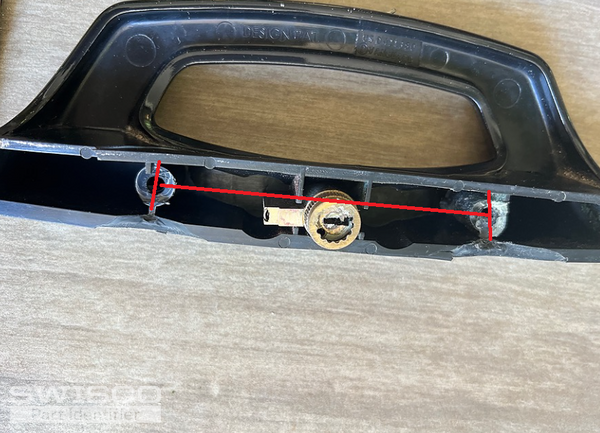

That's correct, you would want to measure as shown below. A dummy handle is a handle or a pair of handles with no latching or locking function. I hope this helps.

centers
Quick Learner from Kailua, HI
Because these are main doors into the house I would need them to lock. Is there any locking mechanism that can be installed to the door or the handle? Before I order these handles I need to find a method to be able to lock the double glass doors. Thank you.
Emily
Emily from SWISCO
SWISCO
Expert

It looks like the handle on the left side already uses a mortise lock but we just don't sell the locking dummy handle hardware that you need, unfortunately. Contacting the original manufacturer of the door is your best bet if you can track them down. I really wish we could give you a better answer.
