Hello,

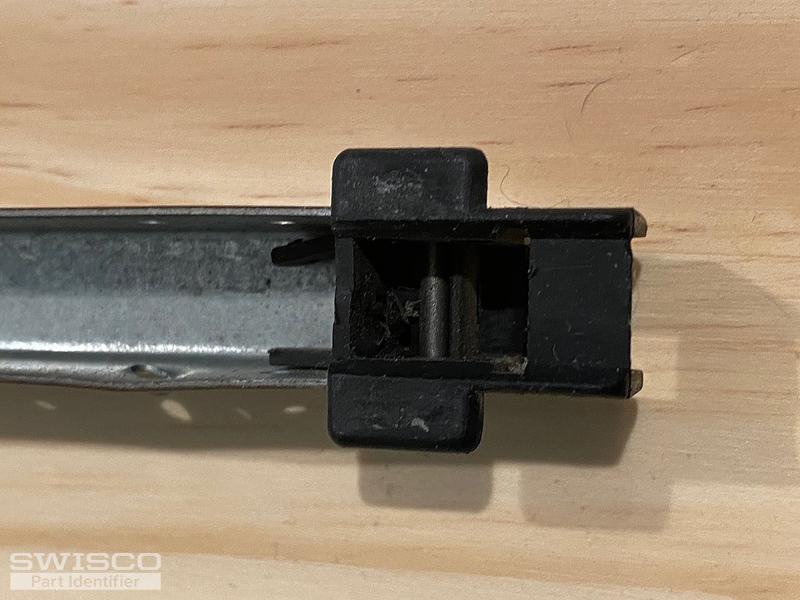

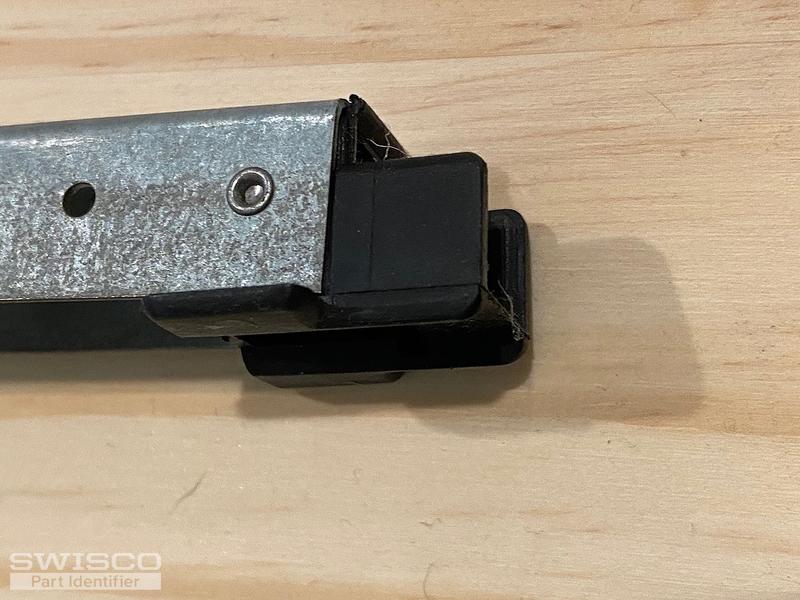

I could use assistance with ordering correct channel balance. Channel width is 1/2". I'm not sure which part number has the correct end attachments.
Thanks
Please Help identifying Correct Channel Balance
Home Owner from Lake Forest, CA
Jul 8, 2020 12:40 am
5 user uploaded images
2 Replies
Casey from SWISCO
Jul 10, 2020 1:30 pm
Hello,
With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need since your stamp is from an outdated weight system. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
