Please Help with 30744B and 40650

A home owner from Los Angeles, CA says:
September 18, 2021

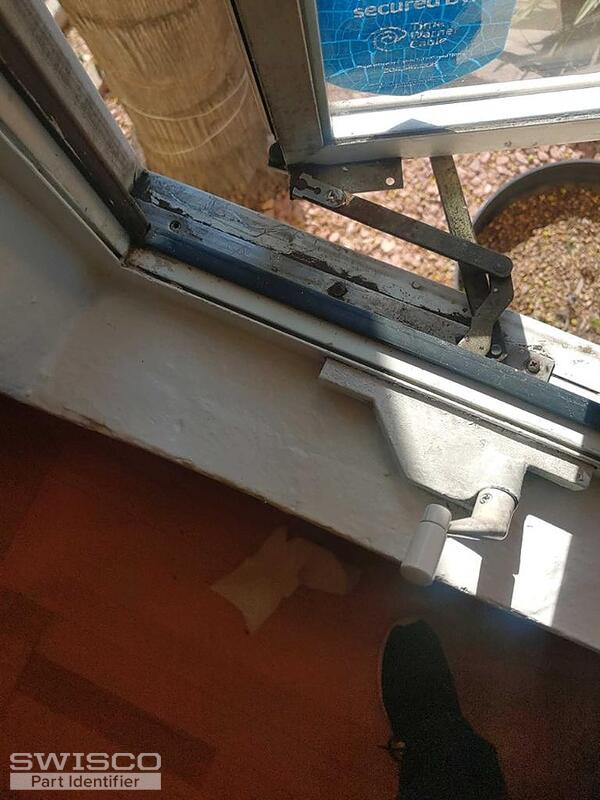

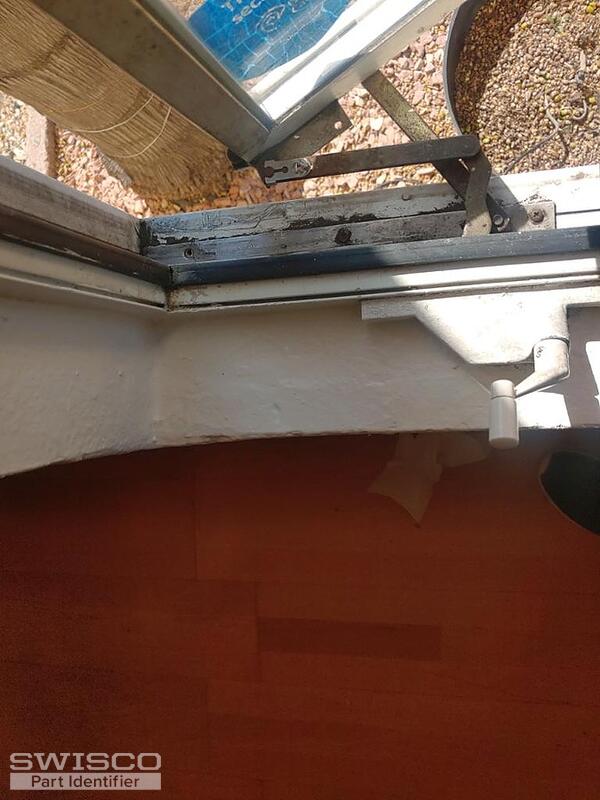

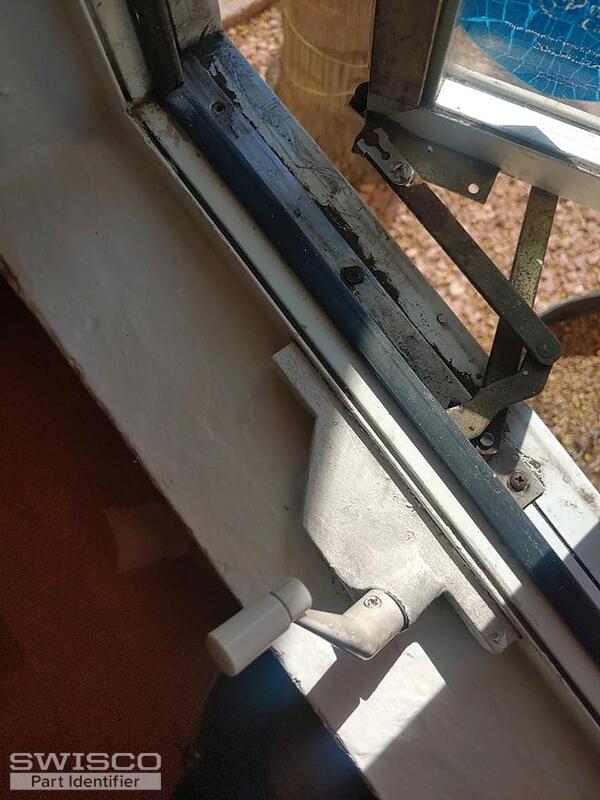

I have a crank window. Unfortunately, I do not know the brand. The photo I've included shows the crank and all hardware. Once I crank the window open, the screw jumps off of the track and I am unable to close it all the way from the inside. I have to have someone to push it in from the back. The numbers that show on the hardware are 30744B and 40650.
Thumbnail of the uploaded file named Window off track.jpg
Thumbnail of the uploaded file named Window off track 3.jpg
Thumbnail of the uploaded file named Window off track.jpg
Thumbnail of the uploaded file named Windown off track 2.jpg
Profile picture of Bob
Bob from SWISCO responded:
September 23, 2021

The operator looks similar to our 39-187. Please compare the dimensions and let us know if anything differs. I'm afraid I don't know what you mean by the screw jumping out. If the operator is worn down, that's what you will need to replace. If it's an issue with the track beneath the operator's arm coming apart, you need a new hinge set. See if the 36-004-10 matches up.
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-188
$37.10
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Stud Bracket
Stud Bracket
39-513
$4.35
Stud Bracket, Neutral
Stud Bracket, Neutral
39-508
$3.47
10" Stainless Steel 2 Bar Hinge Set
10" Stainless Steel 2 Bar Hinge Set
36-004-10
$19.93
