Please Identify

Handy Person from NEW JERSEY

Mar 14, 2024 1:33 pm

I need helping finding the same or a similar part that will allow the balance to function normally. This part is the bottom guide for a channel balance 2540. A previous provider had them but have discontinued them and I don't know what will be a best replacement for it. Thank you!

3 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Mar 15, 2024 12:28 pm

EXPERT

Hi there!

Thank you for reaching out to us. I'm afraid I don't recognize this balance at first glance. I can't promise we'll have a suitable replacement but we'll try our best. Would it be possible for us to see photos of the top fitting? Can you also confirm the length of the metal channel?

Professional from NEW JERSEY

Mar 18, 2024 11:02 am

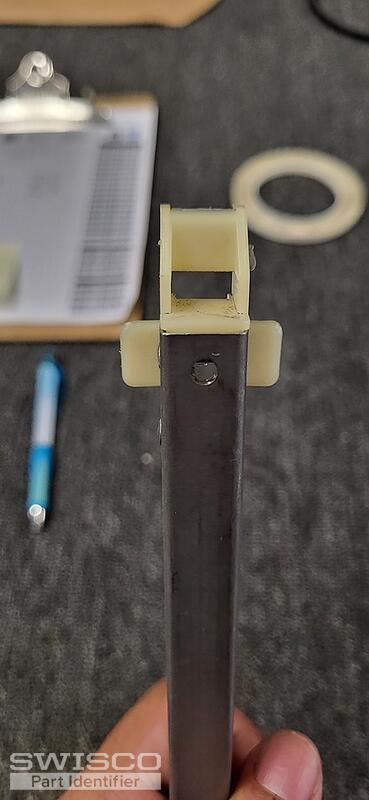

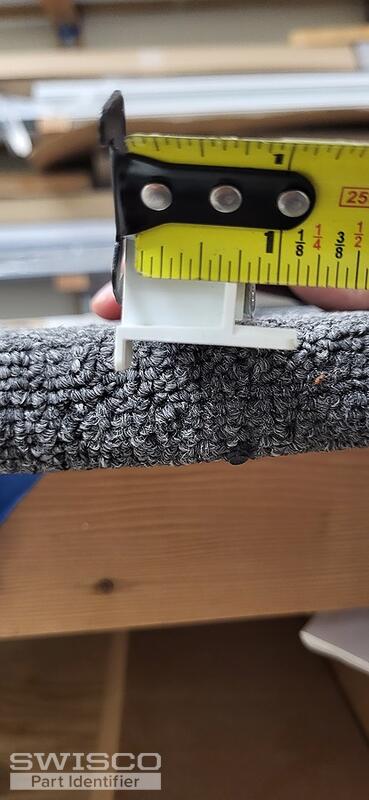

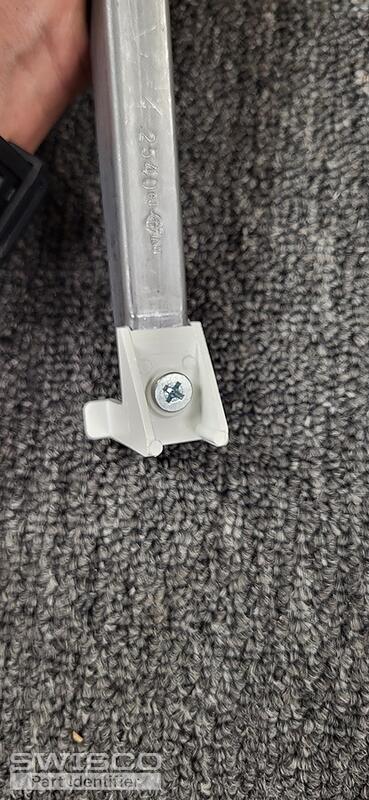

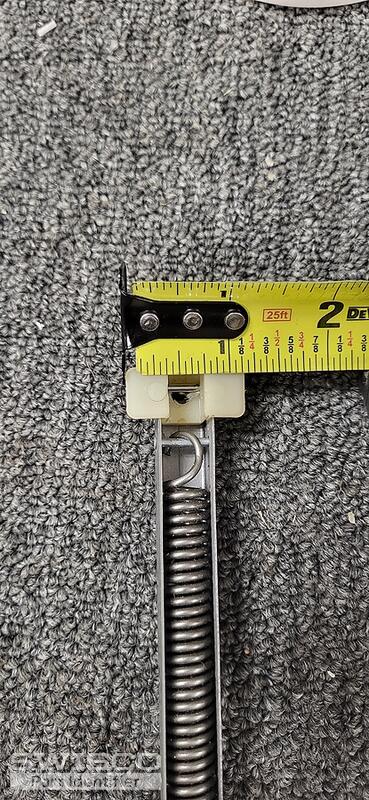

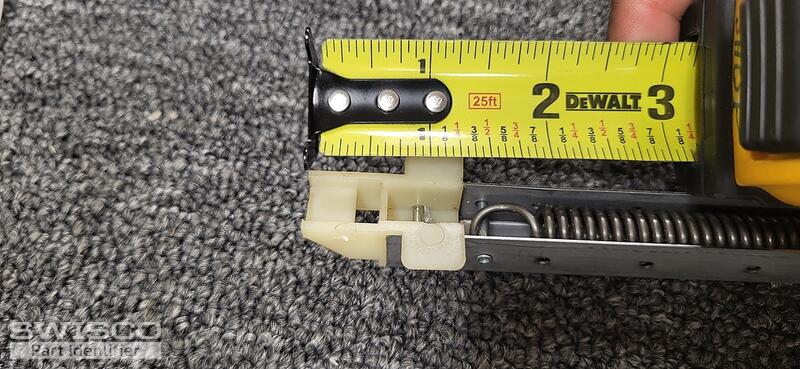

Please see pictures of channel balance shoe. Let me know what replacement I may use if you dont carry the same exact.

5 user uploaded images

Paul from SWISCO

Mar 21, 2024 8:35 am

EXPERT

From your photos and dimensions, I believe you may be able to use the S385-26 which comes attached with the 15-004 bottom shoe (1-3/32" depth) and the 19-005 winged top guide. Based on your old stamp, we recommend the 2540 option for your replacements. A pair of balances with this stamp will support a sash weighing 19 to 25 pounds. Take a look and see what you think.
