Please assist with finding the correct replacement locks

Home Owner from South Windsor Connecticut
May 25, 2020 6:00 pm

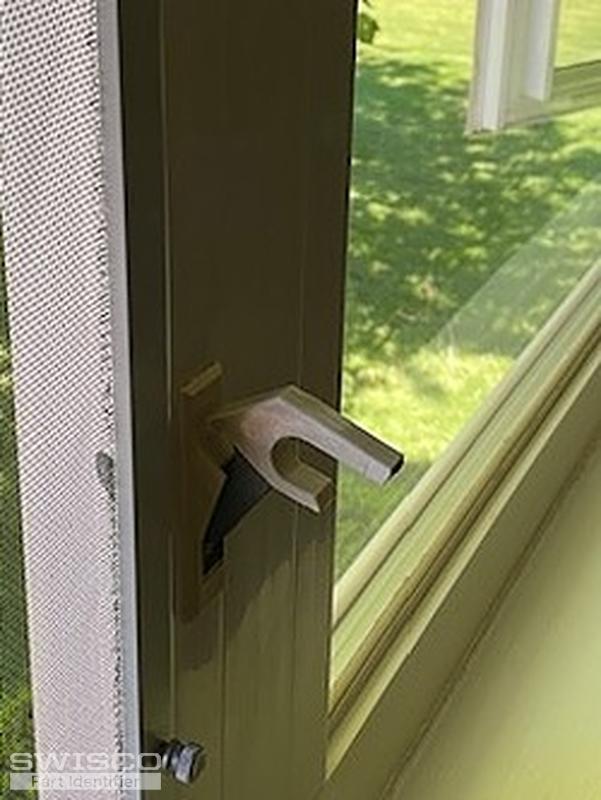

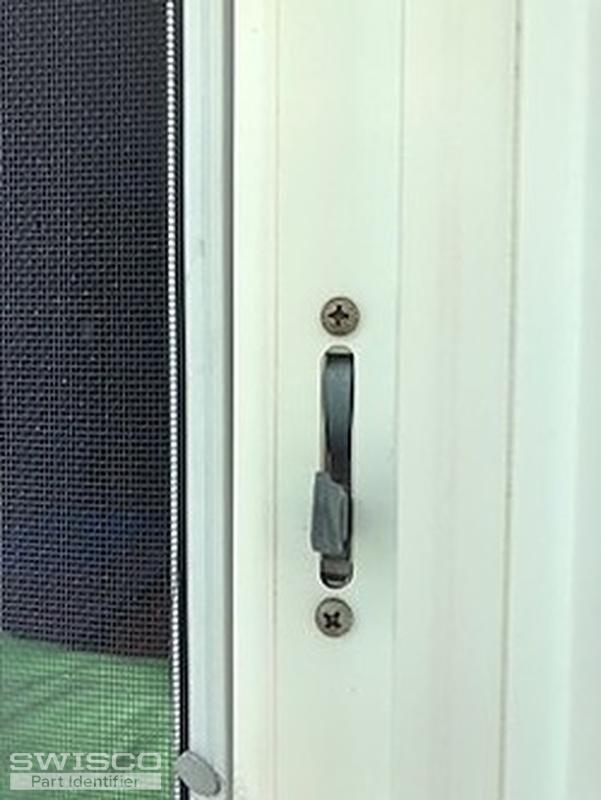

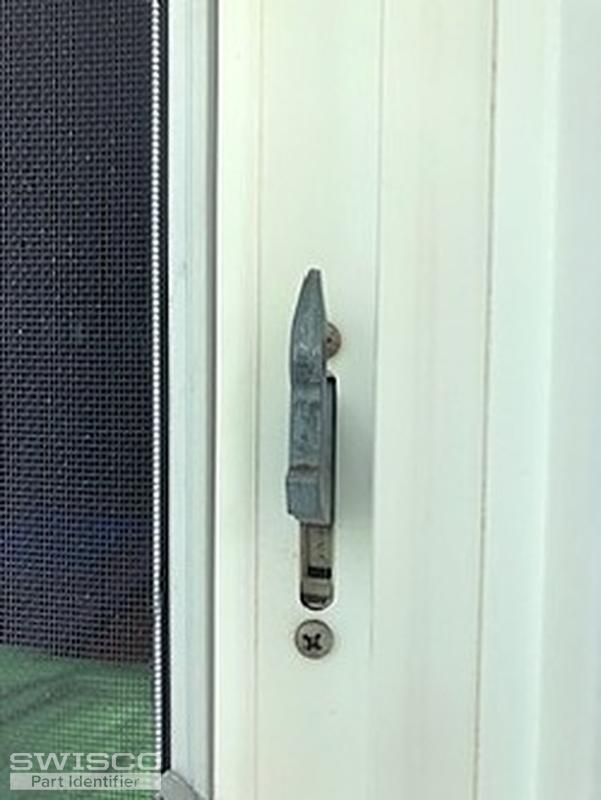

I now would like to replace the locks on my windows. Please advise if i need to also replace the part in IMG_2443.

Tom's previous recommendation for the casement operators worked perfectly.

Thank you in advance for your help again.

Anne
IMG_0882 IMG_0883 IMG_2442 IMG_2443
4 user uploaded images
8 Replies
Tom
Tom from SWISCO
May 28, 2020 12:13 pm
SWISCO
EXPERT

Good afternoon, Anne. This lock looks like an older version of our 38-036. I recommend starting with this product; carefully compare our dimensions and pictures to your hardware to confirm that everything lines up.

Home Owner from South Windsor Connecticut
May 29, 2020 3:29 pm

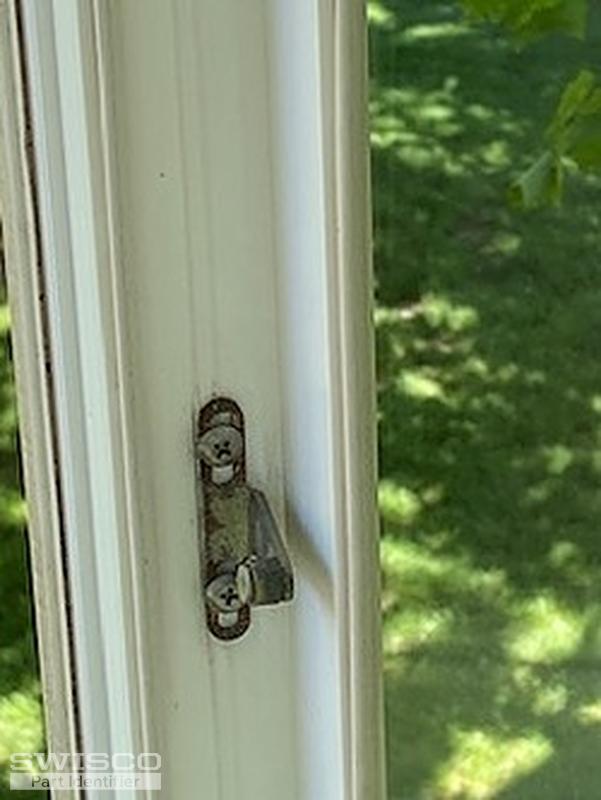

Thanks Tom - do you also have a replacement part for the one in the picture below?
IMG_2443
1 user uploaded images
Tom
Tom from SWISCO
Jun 1, 2020 8:49 am
SWISCO
EXPERT

I'm sorry for missing that in your first batch of photos. I'm not familiar with this type of keeper. Nothing in our inventory appears to match, either.  Is this what your lock attaches to to secure the window? If so, give us a little time to see if we can track this down.

Home Owner from South Windsor Connecticut
Jun 1, 2020 10:42 am
Hi Tom

Yes the lock attaches to that part. Unfortunately one of them is missing the little wheel like thing is missing so it no longer locks.
Dave Sr.
Dave Sr. from SWISCO
Jun 1, 2020 11:08 am
SWISCO
EXPERT

The 38-036 lock normally takes the 38-105 keeper. However your keeper appears to be taller. I'm not sure how well it will work. Take a look at our 38-079, 38-089, or 38-134. These are all different style keepers for other locks, but they're very similar to yours. I can't be sure if any will work as a substitute but they may be worth considering. See how their dimensions compare to your old one.

Home Owner from South Windsor Connecticut
Jun 1, 2020 11:44 am
So if I am replacing the lock with 38-036 would the 38-105 be the correct keeper?
Home Owner from South Windsor Connecticut
Jun 1, 2020 11:45 am
also do I need the casement lock shim?
Dave Sr.
Dave Sr. from SWISCO
Jun 1, 2020 12:08 pm
SWISCO
EXPERT

The 38-105 is typically the right keeper, but I'm not sure if it will work on your old window. I've never seen your keeper before and it is very tall, way taller than the 38-105. I am not confident as to how well it will work.

As for the 38-036S lock shim, I don't think you'll  need it in this case.
