~1993 Alpine vinyl windows

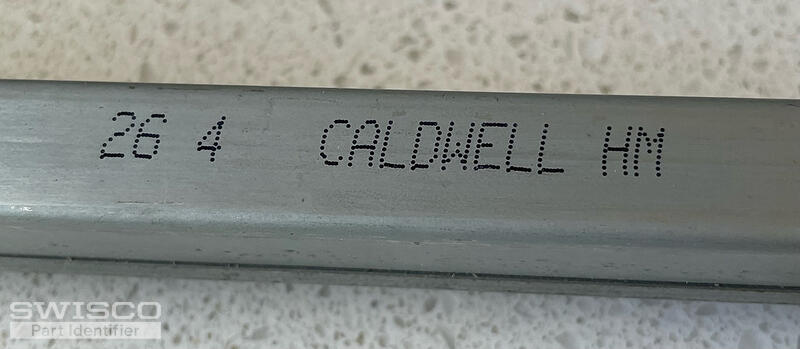

Caldwell HM 26 4
27" length on the metal
9/16" wide

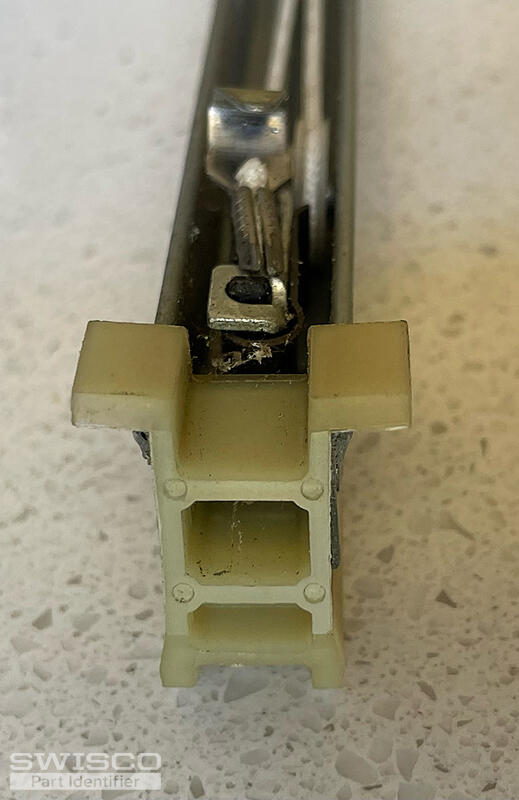

pictures (uploaded) of top & bottom vinyl plastic guides - both have wings
From studying the pictures/dimensions I think top is 19-005 and bottom is 15-004
I would need to order S385-27 2640
Measuring the depth of the bottom shoe was tricky - but looks to be 1 1/16 or 1 3/32
Requesting another set of eyes before I place an order.
Please confirm identification of this non-tilt channel balance
Quick Learner from Bellingham, WA
Aug 17, 2023 7:25 pm
5 user uploaded images
2 Replies
Lauren from SWISCO
Aug 21, 2023 12:29 pm
Hello, thank you for posting,
I agree that your balance resembles the S385-27 channel balance with a 2640 stamp option. Please let us know if you have any additional questions!
