Please, help ID the right replacement for this channel balance.

Start a new Discussion

Quick Learner from Portland, OR

Aug 26, 2023 4:02 pm

I believe it comes from a Milgard non-tilting double-pane window.

The stamp on the balance says "26 4 HV CMC 7".

The length of the metal balance body excluding the plastic fittings is 27 inches.

Regards,

--Ivan

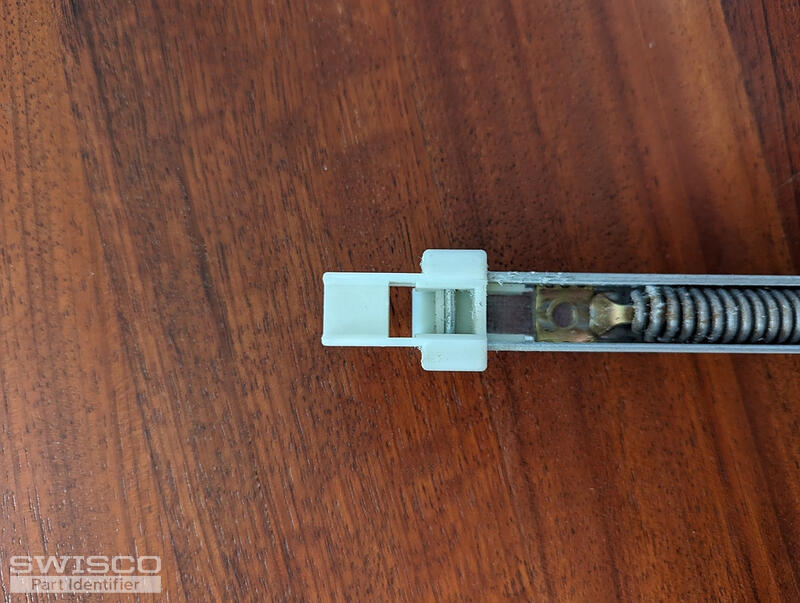

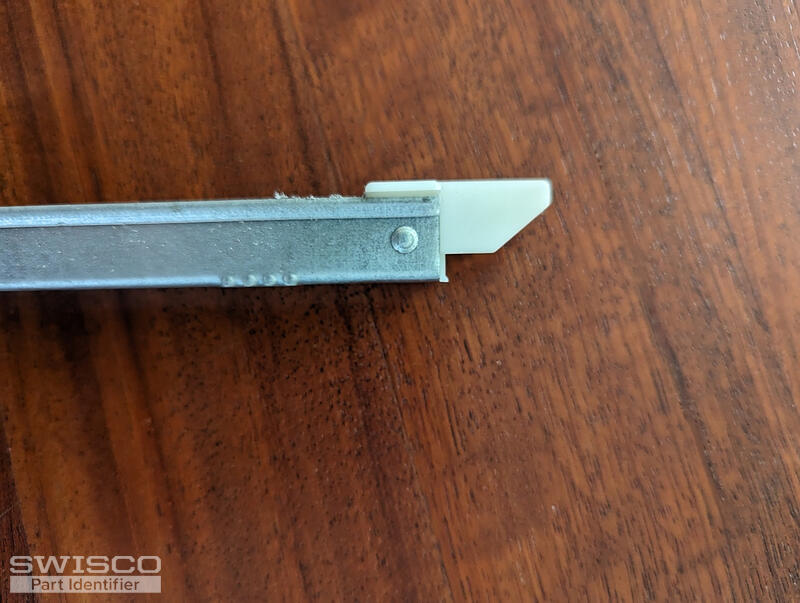

5 user uploaded images

4 Replies

Bob from SWISCO

Aug 26, 2023 5:20 pm

Hey Ivan. This looks like either our S380-27 or S385-27. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. In either case, for a stamp option choose 2640.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Portland, OR

Aug 28, 2023 7:15 pm

Hi Bob,

The old, and admittedly somewhat worn, plastic shoe on my windows measures 1 and 2/32 inches.

Does that make the S385-27 balance the right option for me? Or it there a chance that its extra 1/32 of an inch would make it a poor fit?

What's your recommendation?

Regards,
--Ivan

Bob from SWISCO

Aug 31, 2023 8:56 am

It's very likely that your shoe was once 1-3/32" deep, but that some of it just wore down over the years from constant use. That's a very common circumstance and I think it's a fairly safe bet. With that in mind, I think the Series 385 would be a good option for you.
