Please help identify parts we need- looking to replace full track on three windows plus replace missing parts

Question

Hello!

We are looking to completely replace hardware/tracks for three older windows and we're also need a couple of missing parts on two additional windows.

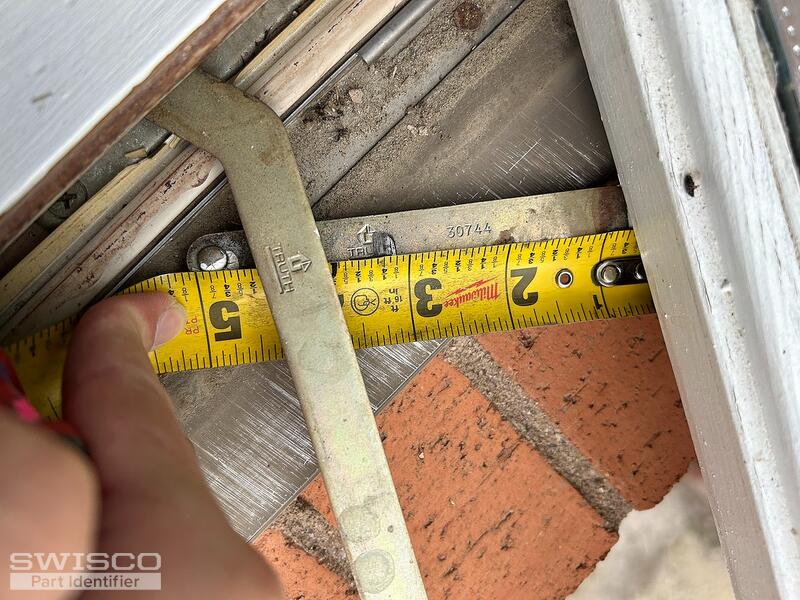

The arms are aprox. 12"long- Identifying info: TRUTH: "3074," "358-1L"

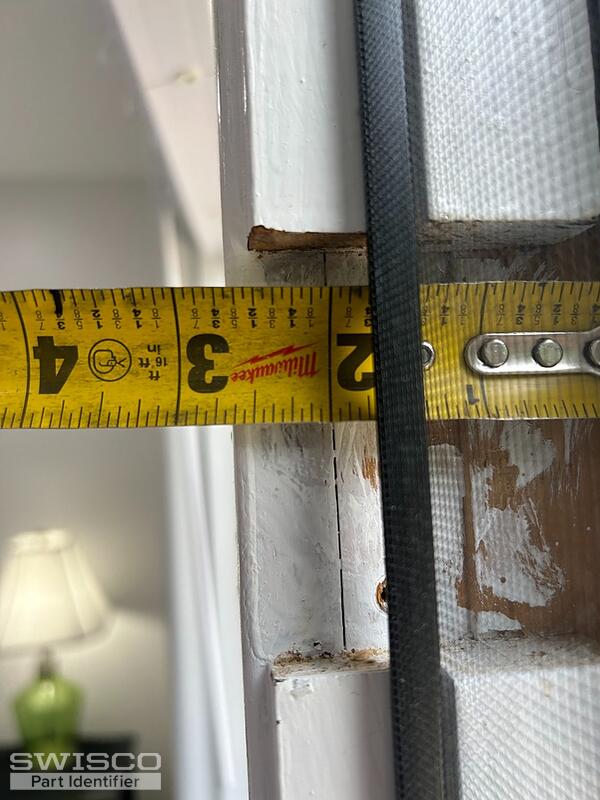

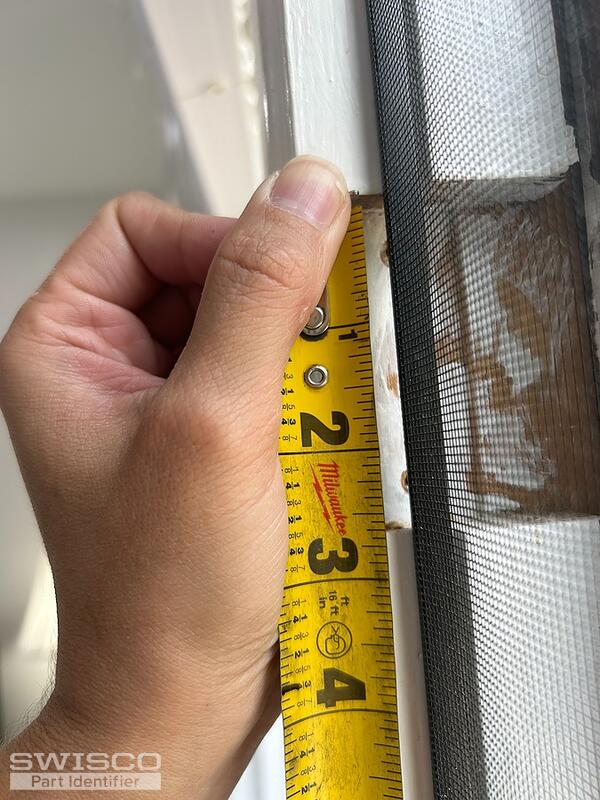

I attached pics but please let me know if you need anything else/ more specific pictures or measurements!

Missing parts needed-

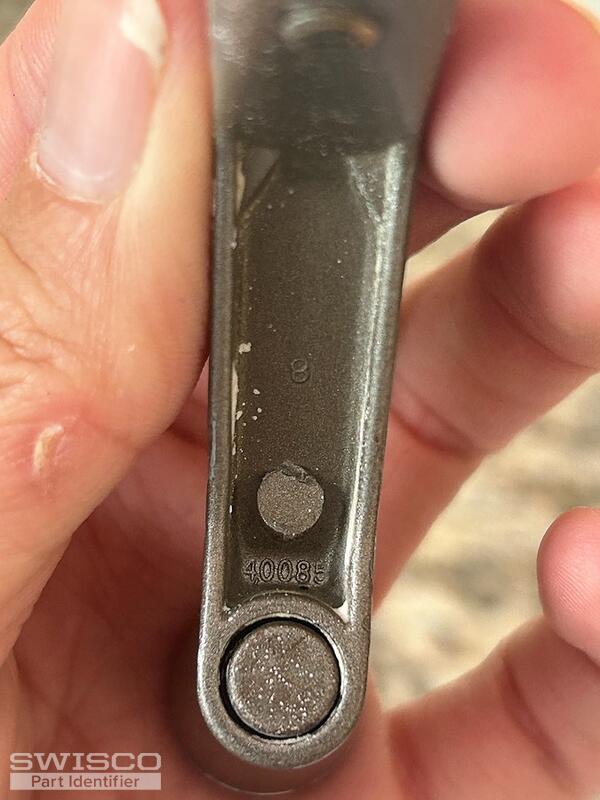

1)Two window cranks/handles (pic provided) Identifying markings: 40085 plus a small "8"

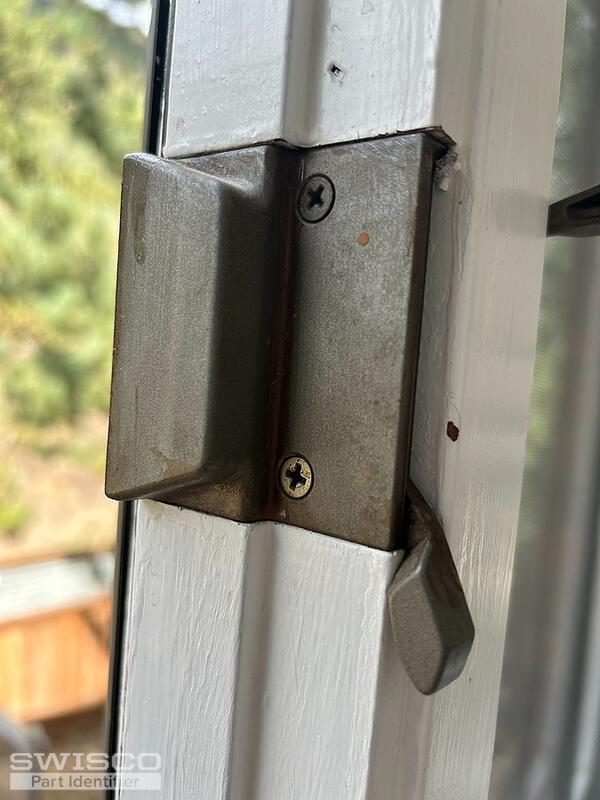

2)Two window locks (pics provided)- no identifying marks- measurements aprox. 2-5/8" H, 2-5/8" W

If you can provide any assistance as to what parts we need to order it would be much appreciated and thank you so much for your time!

Emily · Accepted Answer

Hello there!

Thanks for reaching out to us. Are the additional windows with the missing lock the same as the windows with the intact lock? If so, take a look at the 38-075. The 38-089 (sold separately) is the compatible keeper.

For the operator, can you show us a photo of the base? A bird's eye view of the whole assembly in one shot would be helpful as well.

By track, do you mean the hinge? If so, take a look at the 36-048's specifications and see if they match up with your old hardware. We just recommend you replace the top and bottom hinges at the same time.
