Please help identifying window balances

Home Owner from colorado

Jun 26, 2018 5:19 pm

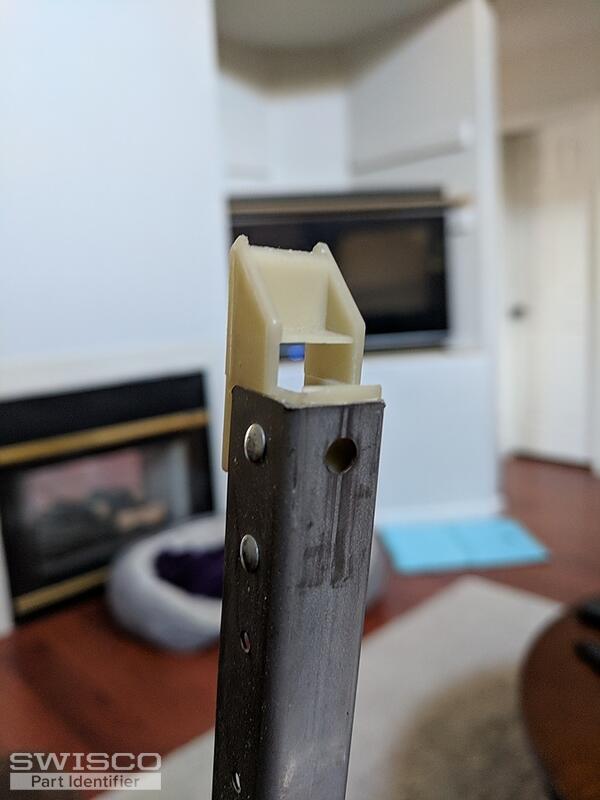

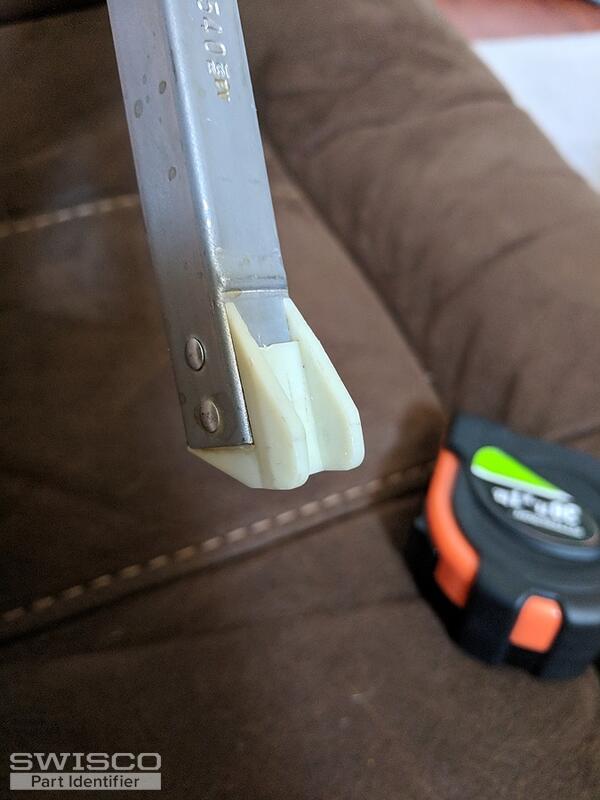

I have a 1/2" wide window balance I need to replace. It measures 26 1/16" from end to end on the metal frame only not including to plastic attachment pieces.

Thank you for your help!

3 user uploaded images

4 Replies

Tom from SWISCO

Jun 27, 2018 9:21 am

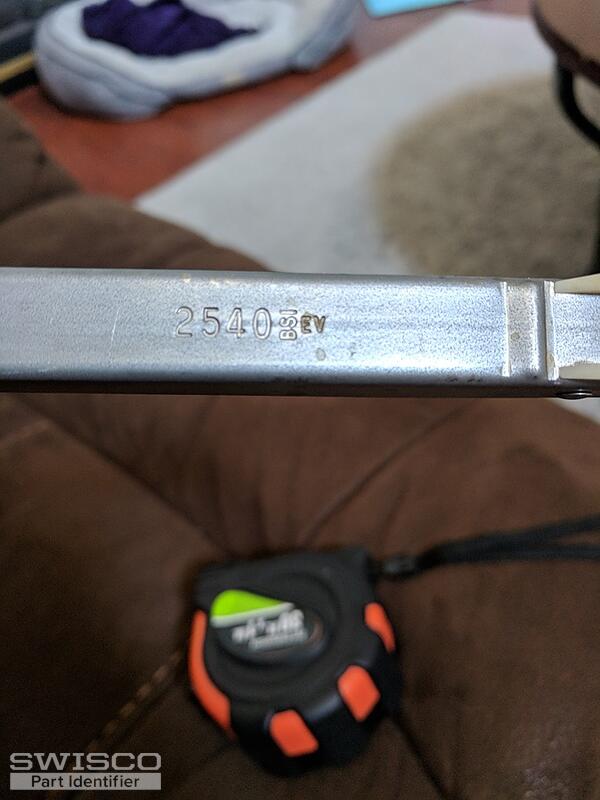

This is S351-26 or S390-26. I'm leaning toward S390-26, but you can measure to tell. The photo below shows the 1" shoe used on the Series 351 versus the 1-1/8" shoe used by the Series 390. Both of these balances can be purchased with the "2530" option your old balance was stamped with.

Comparison of 15-001 & 15-002

Tom from SWISCO

Jun 27, 2018 12:45 pm

Yes, absolutely. Your shoe wore down over time, I believe.

Home Owner from colorado

Jun 27, 2018 1:41 pm

When measuring the shoe I am getting a measurement closer to 1 1/16", should I go with 1 1/8" series 390?
