Please help me identify balance

Question

I'm looking for a replacement channel balance.

Length 25"
Width 1/2"
Depth 9/16"
The edges of the channel are hemmed. I don't know if hemmed edges matter or not, please let me know.

Top Guide
Total width 15/16"
Width w/o wing 1/2"
Depth 11/16"
Height 1 11/16"

Bottom Guide
Total width 15/16"
Width w/o wing 1/2"
Depth 1 3/32"
Height 1 1/8"

Markings : 24 4 JQ CALDWELL

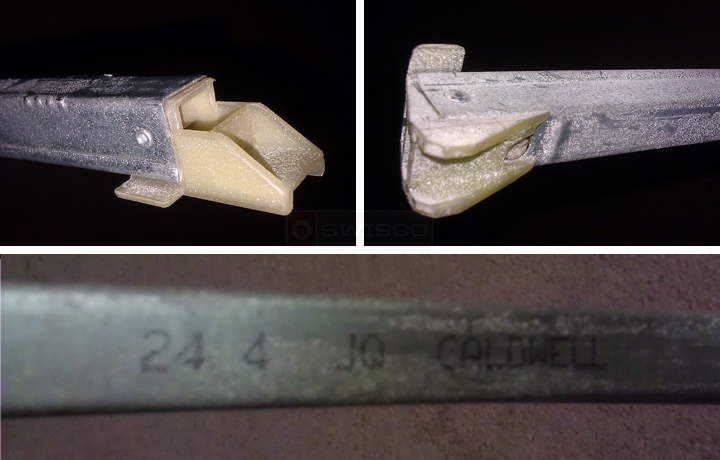

User submitted photos of a window balance.

Tom · Accepted Answer

Thanks for posting! Based on this information, I recommend that you take a look at our S385-25 channel balance. Please compare the dimensions of its attachments to your own. Does it look about right? I would also recommend the 2440 option, which can carry a window sash weight of 19 through 24 pounds. Double check to see if your sash's weight falls within that range.

Please keep in mind that the weight range information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
