1/2" non-tilt channel balances

Home Owner from Thousand Oaks, CA 91362

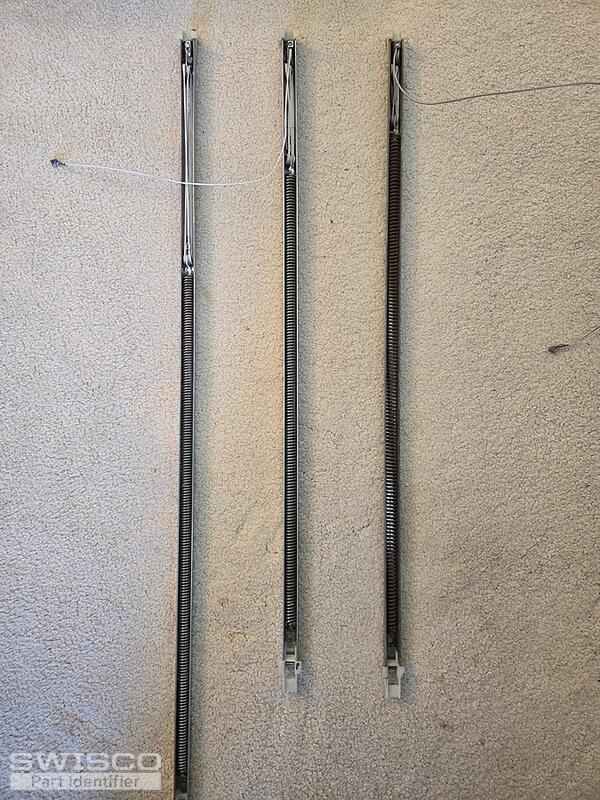

Hi, I need 3 set (2 for each set) of new 1/2" non-tilt channel balances. See attached photos, first set is labeled "26 4 JV CMC 2", 2nd set is labeled "26 5 IV CMC 8" and 3rd set is labeled "32 5 IV CMC 2". Please let me know the correct part number from Swisco. Thanks.
2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. Thank you!

Home Owner from Thousand Oaks, CA 91362
Please see attached photos.
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The stamp codes on your original balances are used to choose the corresponding strength options, which would be 2640 and 2650 for your 27" balances and 3250 for the 33" replacements. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
