Please provide the part number for this window balance

A quick learner from California says:

Please provide the part number for this window balance. If I were to only replace the channel balance top what is the part number? Mine has a rivet.

Paul

Thumbnail of the uploaded file named IMG_4327.jpg
Thumbnail of the uploaded file named IMG_4330.jpg
Thumbnail of the uploaded file named IMG_4331.jpg

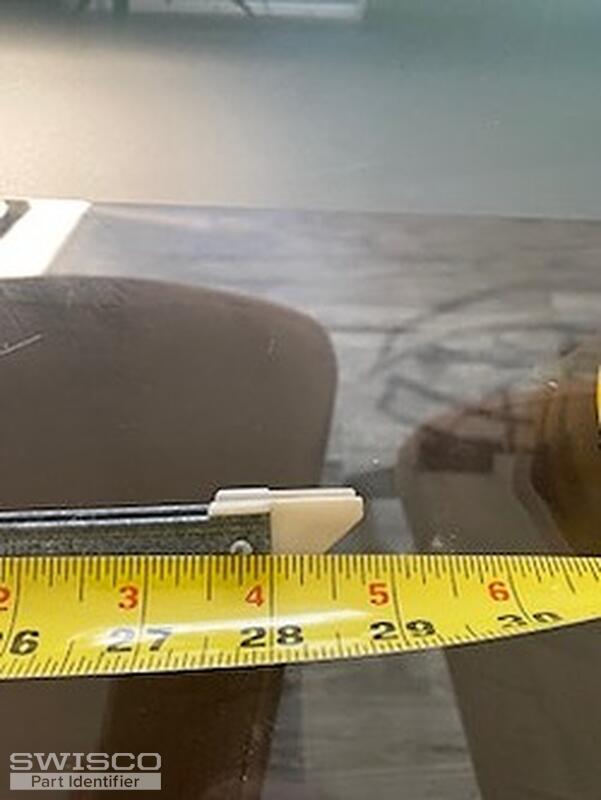

Thumbnail of the uploaded file named IMG_4333.jpg

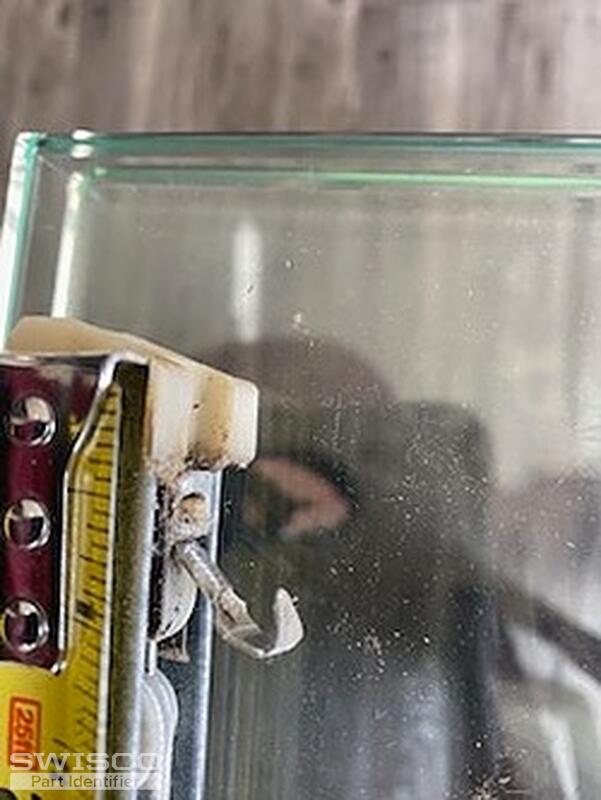

Thumbnail of the uploaded file named IMG_4334.jpg
A quick learner from CA says:

Please provide the part number name and number for this window part.

I blieve these are the parts and numbers I need. I had ordered some of them but since I couldn't change the order I cancelled it. Once I confirm that the parts are correct I will reorder. Thank you.

18-008H - 5/8" Top Sash Guide

19-005 - Channel Balance Top, Winged

62-005 - Rivet, 3/32" x 5/8"

90-005 - Window Sash Lock, 2-1/4" - white

S380 - Channel Balance

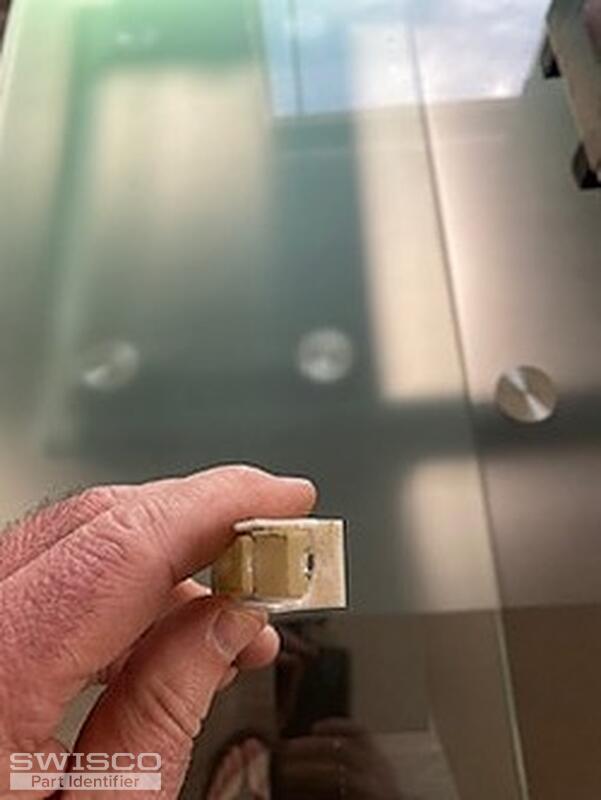

Thumbnail of the uploaded file named IMG_4337.jpg

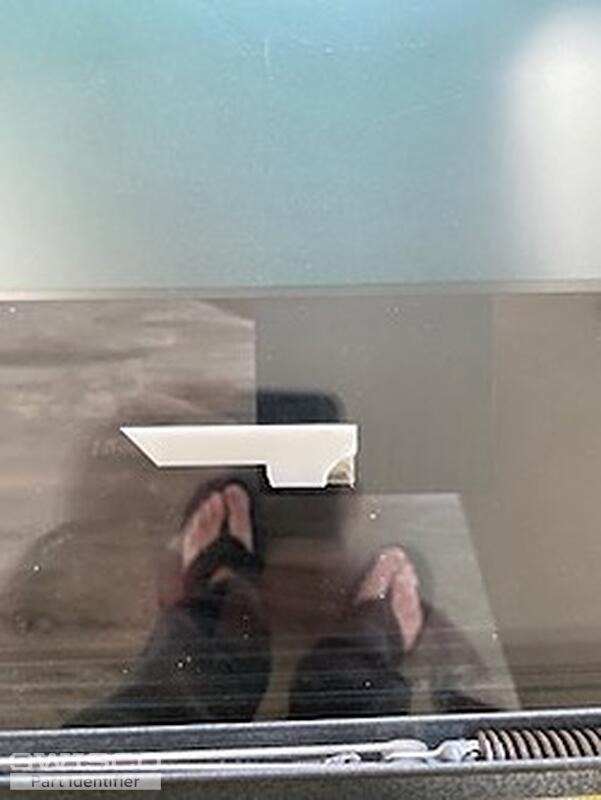

Thumbnail of the uploaded file named IMG_4338.jpg

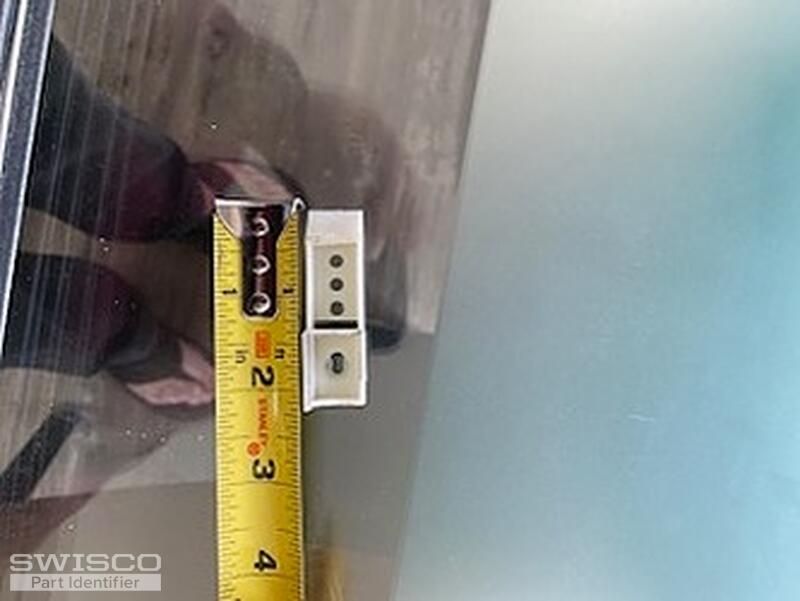

Thumbnail of the uploaded file named IMG_4340.jpg

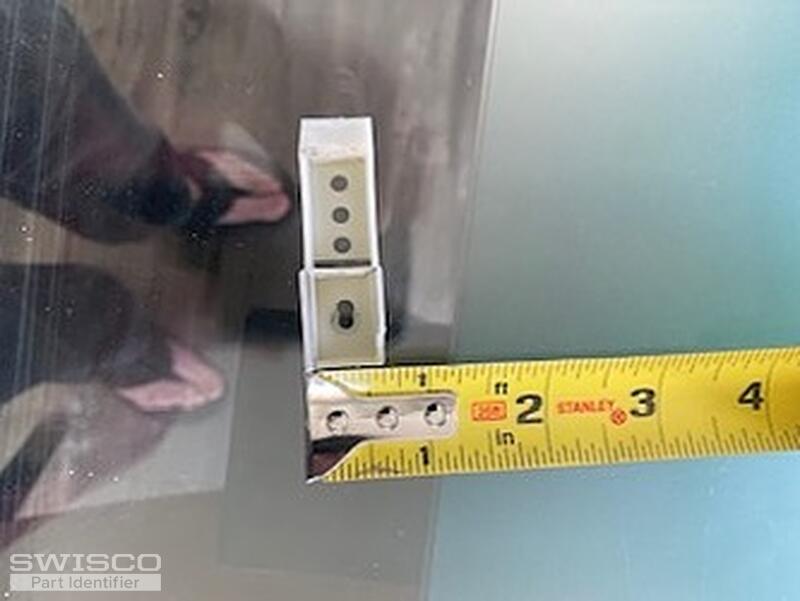

Thumbnail of the uploaded file named IMG_4342.jpg
A quick learner from CA says:

Please provide the part number for this window latch

Paul

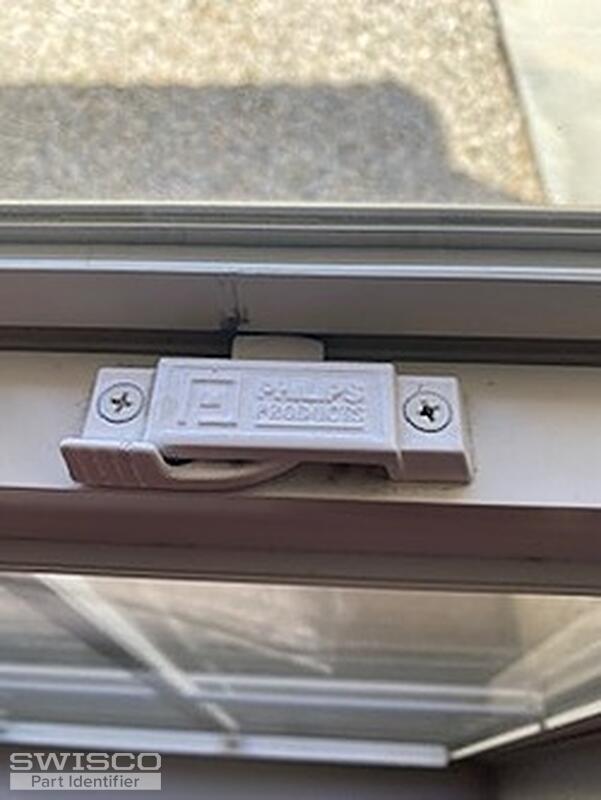

Thumbnail of the uploaded file named IMG_4343.jpg

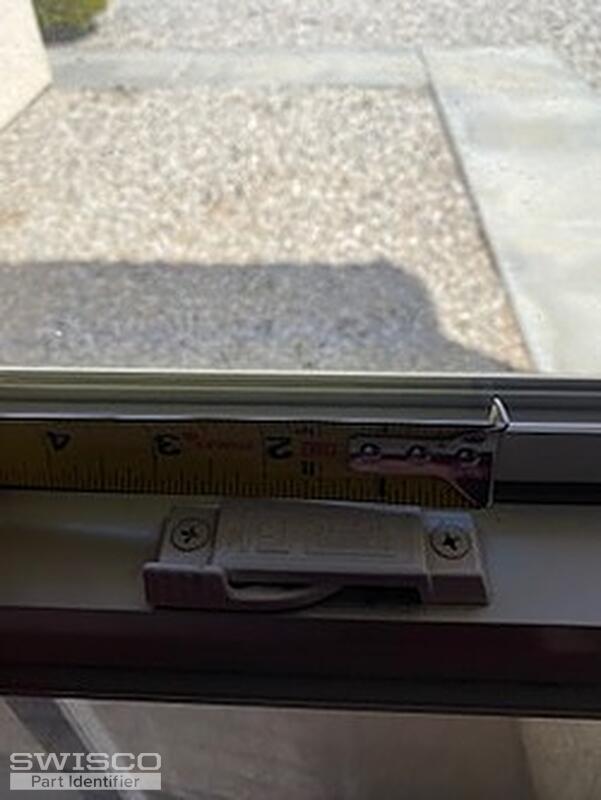

Thumbnail of the uploaded file named IMG_4344.jpg

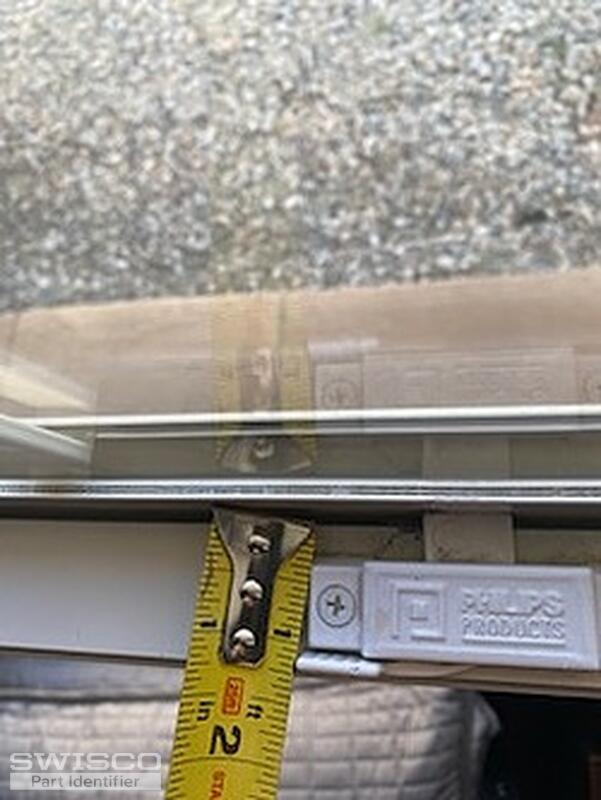

Thumbnail of the uploaded file named IMG_4345.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Paul.

Thanks for reaching out to us. Your balance is our Series 380 or Series 385, depending on the depth of the bottom fitting. Measure as shown in the image below to determine the best match. You will also need to select the 2730 option based on the 27 3 stamp on the metal channel.

If you only wanted to replace the top fitting, the 19-005 would be my pick. As for the top sash guide, our 18-008 looks like a better match but look over the specifications and see what you think. I also agree that the 90-005 sash lock looks like a good match as long as the specifications match up.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
