Please quote channels : SWISCO.com

Contractor from La Mirada, Ca

Jul 25, 2023 7:40 pm

9/16" channel

16" Length

Please quote with added end plastics.

Thank you,

Robert

Neighborhood Glass and Door

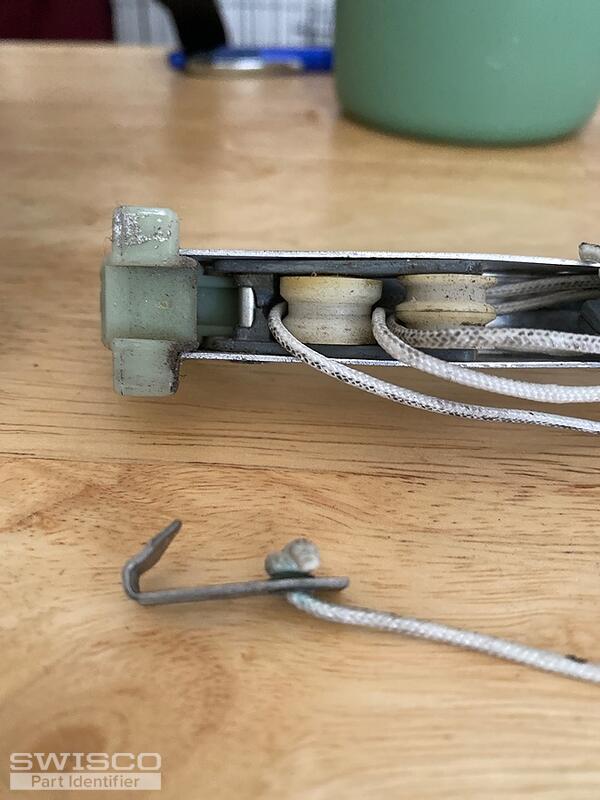

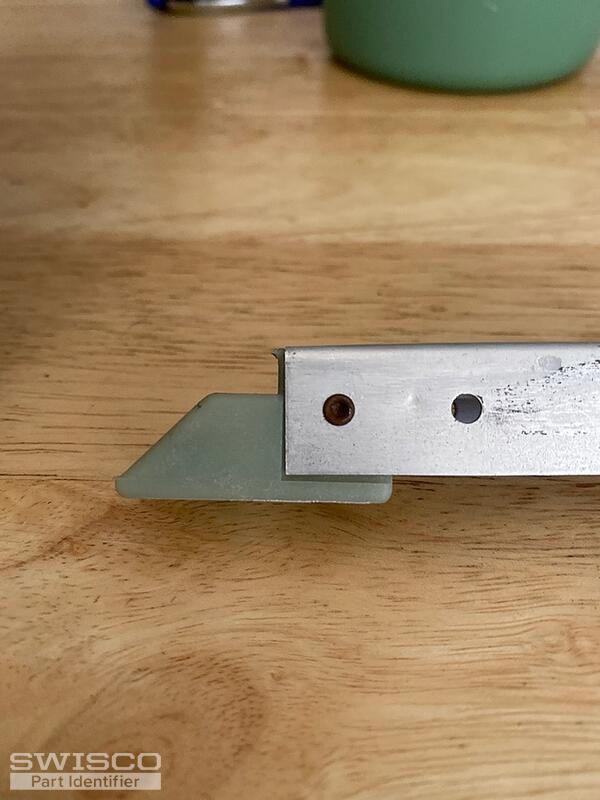

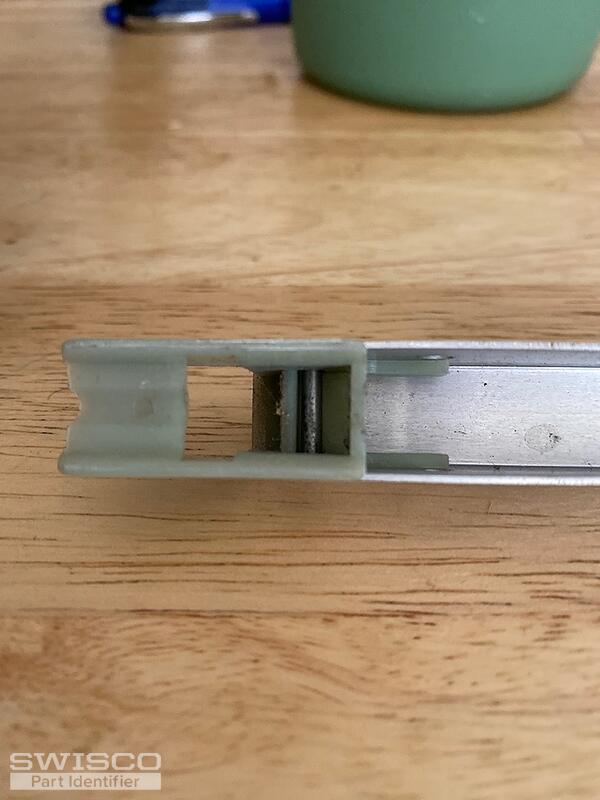

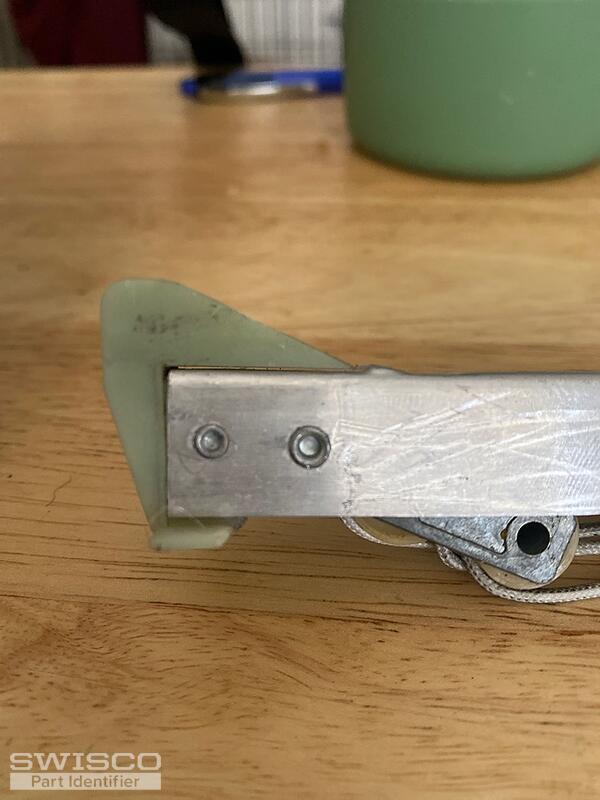

5 user uploaded images

6 Replies

Casey from SWISCO

Jul 27, 2023 12:26 pm

Hello,

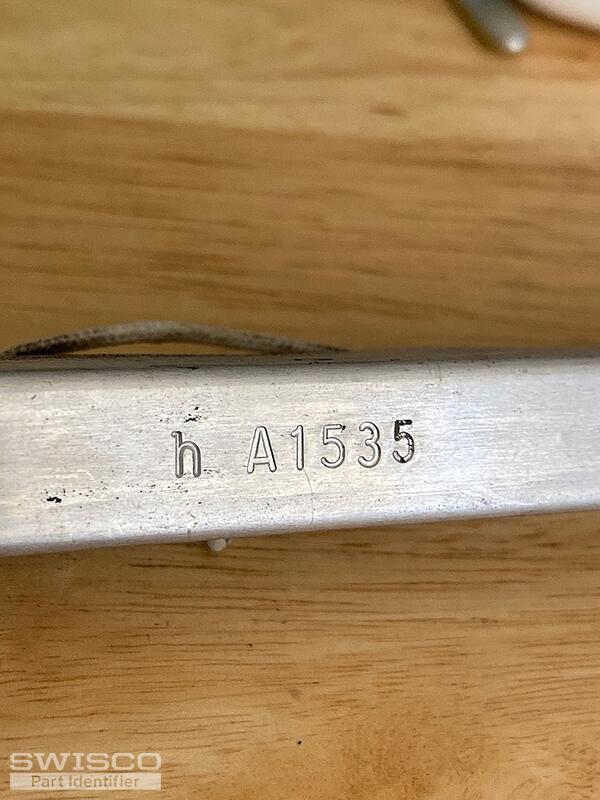

your balance resembles the S350-16 channel balance. Take a look and compare the specifications to your assembly. One thing to note is that your 1535 stamp does not correlate to any of our strength options. You would need to weigh your sash and follow the chart under the S350-16 product description to choose the corresponding strength option. Thank you!

Close up view of the S350 balance top.

Close up view of the S350 balance shoe.

Contractor from La Mirada, Ca

Jul 27, 2023 1:22 pm

The window weighs 14.8lbs

Casey from SWISCO

Jul 27, 2023 1:43 pm

Great, then you'll need 1550 strength options for your replacement balances to support a sash between 13-17 lbs.

Contractor from La Mirada, Ca

Jul 27, 2023 2:34 pm

Great. So the pair would support that amount of weight? Or each individual channel balance supports that weight? My clients window had 1 channel on each side. Also what is the cost and turn around time?
Thanks

Casey from SWISCO

Jul 27, 2023 2:52 pm

A pair of 1550 balances, one on each side, will support between 13-17 Ibs. Pricing can be found directly on our product page and you will be given multiple shipping options to choose from at checkout.
