Single Hung Replacement Balance Spring

A quick learner from Gold River, CA says:

Hello,

Can you help me to order 2 replacement balance springs for one single hung window.

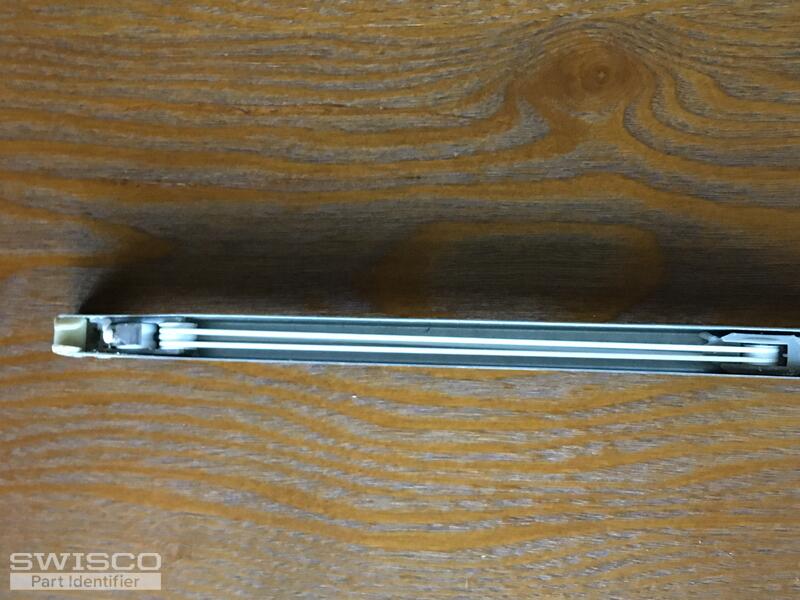

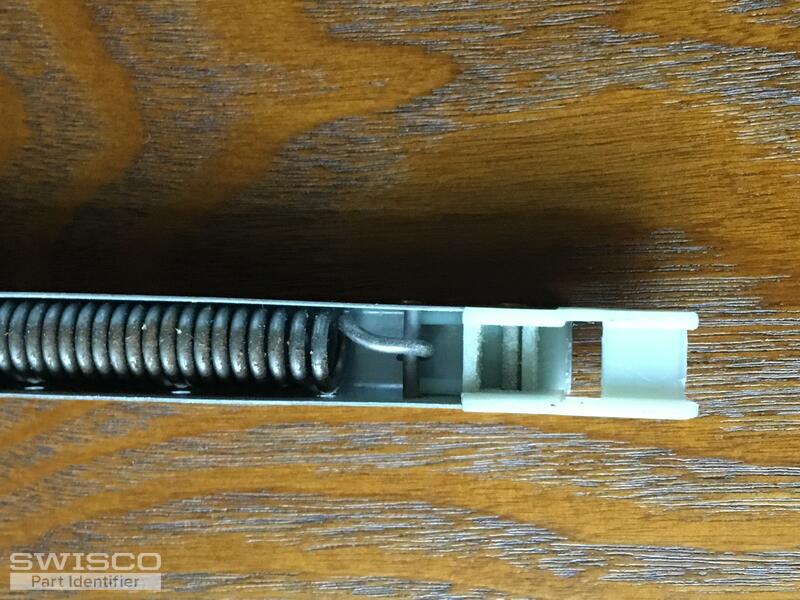

I cannot see any other manufacturer markings accept those on IMG-6504.JPG

Rich B

Thumbnail of the uploaded file named IMG_6507.JPG
Thumbnail of the uploaded file named IMG_6505.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello Rich,

It looks like you have either our S351, 15-002, or S390, 15-001, channel balance. Take a look at the image below to determine which balance you'll need. You'll also need to know the length of your balance and the weight of your sash in order to choose the correct option.


Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
A quick learner from Gold River, CA says:
Hi Casey,

Thanks for your quick response.

It looks like I'll need a 15-002; the length of the metal channel is 29inches with 1" X 1" foot and shoe measurements, the weight of the sash is 28.9 lbs.

The markings on the current metal channel are 2840, your chart indicates over 28 lbs. to go with the 2850, once I get your confirmation of the correct one to order, I'll order two for the sash, and two new take-out clips.

I'll await your response before ordering.

Thank you,
Rich
Profile picture of Casey
Casey from SWISCO responded:

Great, it sounds like you'll need our  S351-29 channel balance with a 2840 option. Either the 2840 or 2850 option should work for your window since it is right on the cusp of both options.

As long as your old balance worked okay previous to them needing to be replaced, I'd stick with the 2840. Thank you!

A quick learner from Gold River, CA says:
Hi Casey,

I have placed my order. Thanks for your purchasing guidance. I like the functionality of your website, clear, concise, with a simple interface.

Sincerely,
Rich
Profile picture of Casey
Casey from SWISCO responded:

Thanks, Rich! Your compliments mean a lot to us. We hope you'll think of us if you're ever in need again.
