Please tell me what to order

Home Owner from culver city, CA

Two of my windows need replacement channel balances. The windows are dual glazed, aluminum, single hung, about 30 years old.

Window 1: Channel is 1/2 inch wide x 34" long. Window is about 15 lbs. The channel has the following imprint: 3320A B.S.I. (A is upside down - see photo).

Window 2: Channel is 1/2 inch wide x 22" long. Window is about 15 lbs. Channel has the following imprint: 2130V B.S.I. (V is upside down - see photo).

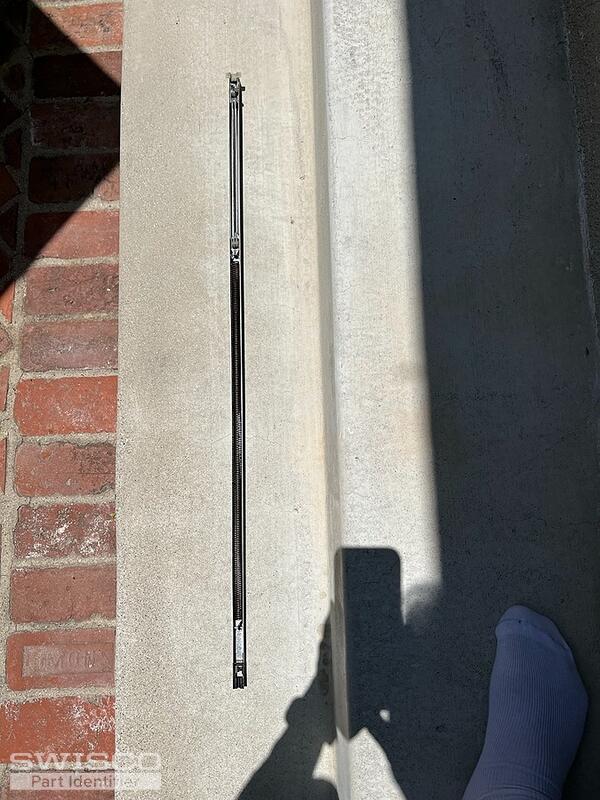

The photos of the entire thing is the 34", but the shorter one is exactly the same.

Please send link of what I need to order or let me know should you need more information or photos. Thank you.

Tom

4 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Tom. It looks like the bottom fitting has side tabs, or what we call 'wings', whereas the top fitting does not. Is that correct? If so, see our S350-22 and S350-34. Review the diagrams below and let me know if this looks right. For the 22" balance, choose 2130 for the stamp option; for the 34" balance, go with 3320. Let me know if you have any questions or concerns.

How to measure the length of the Series 350 channel balance.
How to measure the length of the Series 350 channel balance.
Close up view of the S350 balance top.
Close up view of the S350 balance top.
Close up view of the S350 balance shoe.
Close up view of the S350 balance shoe.

Home Owner from culver city, CA
Hi Bob,

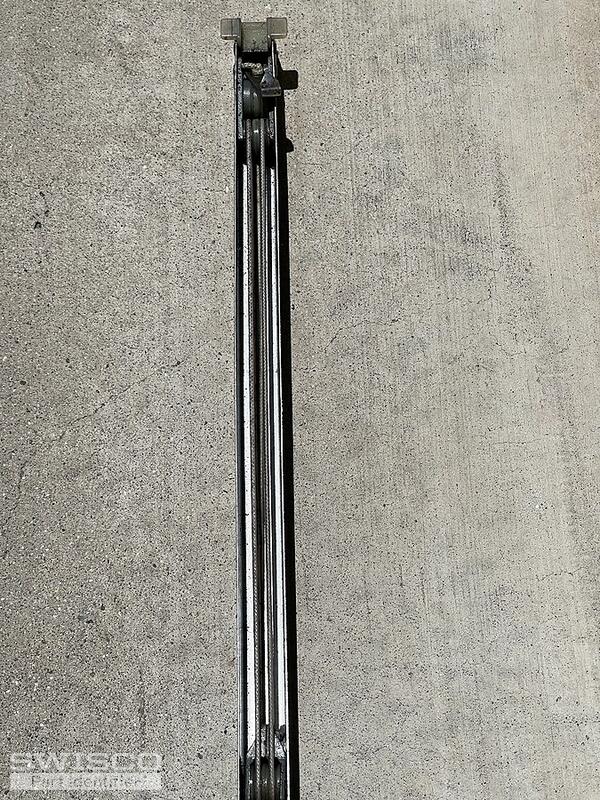

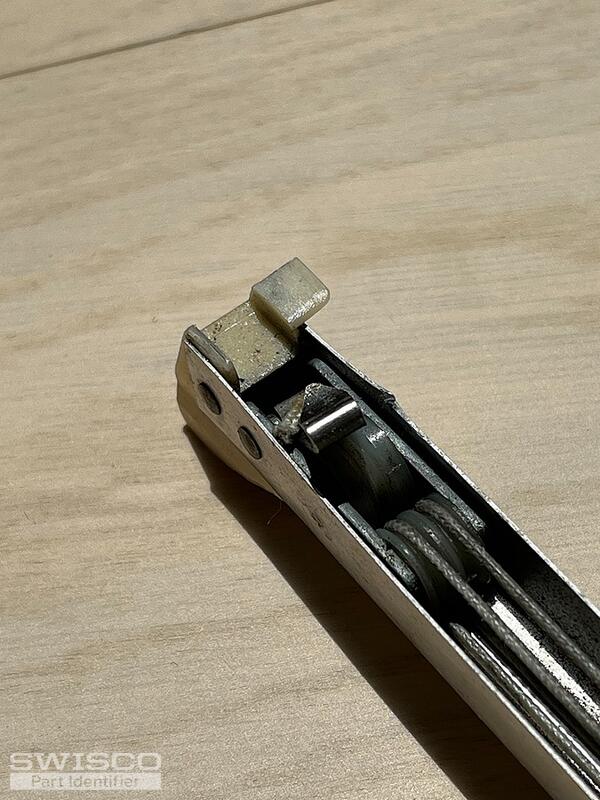

Thanks for the prompt response. Yes, they have the side tabs or wings. However, the short one has tab on one side only (see photo 2473). It might have broken off. Is there a one-tab version? Please confirm. The long one definitely has 2 tabs (see photo 2458).

Thanks,
Tom
2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

There is no one tab version that I am aware of, so in all likelihood yours just snapped off. It happens all the time. I feel confident that this product will do the job for you.
