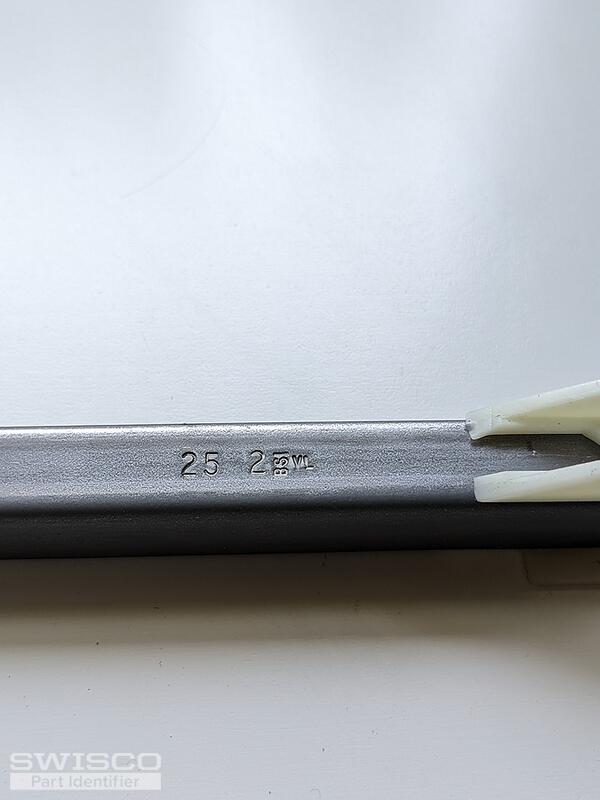

Metal channel of balancer length is 25.5 inches.

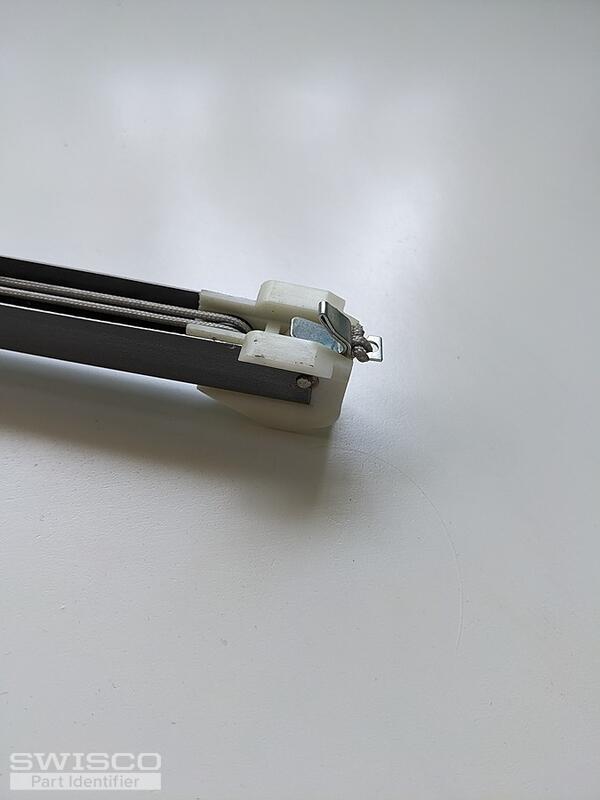

The clip became disengaged from the hole on the inside track of window frame and snapped down to the foot position of the balancer. I don't know if it's possible to pull it back up to the top of the balancer, reattach it to the clip hole on the inside window track and then bring the window sash back down to engage the balancer once again? Or I need new balancers for that window and don't know what model to order.
Looking forward to your assistance as I've not ever done such a repair before. I can send different photos if necessary. Thank you!
Ply Gem Window - 18" X 30" Single Hung
Home Owner from Olympia, WA
Sep 1, 2024 6:21 pm
5 user uploaded images
4 Replies
Home Owner from Olympia, WA
Sep 1, 2024 7:54 pm
Adding an update to my original post. I found the Ply-Gem model take-out clips from our home's window package original installation. They are plastic and can be brittle in spots depending on the sun exposure. Attached is a photo that shows a different window frame and position of the take-out clips for the single and double-hung windows.
Beneath the take-out clip this picture demonstrates what the balancer clips look like when they are attached to the interior track of the window frame.
Beneath the take-out clip this picture demonstrates what the balancer clips look like when they are attached to the interior track of the window frame.
1 user uploaded image
Emily from SWISCO
Sep 5, 2024 1:58 pm
Hey there!
Thanks for reaching out to us. Are there any visible signs of damage to the balance? If not, we recommend re-installing the balance and seeing if the window operates normally. If you do need balances, they would have to be a custom order since they aren't a part of our stock catalog.
As for the take out clip, we don't sell your exact style but the 16-035A is similar. Take a look and see what you think.
Dimensions for 16-035A
Additional dimensions for 16-035A
Home Owner from Olympia, WA
Sep 7, 2024 6:46 pm
I did it! Those take out clips turned out to be the biggest challenge. My balance was not damaged and fit right back into place and the window is operating normally again.
Thank you for your response.
Thank you for your response.
