P/n, sash weight, and install procedure request for coil tape balance and coil housing pivot &b tilt latch

Question

I'm looking for the part number for:
1) the coil tape balance
2) the coil housing pivot.
3) tilt latch

I also am looking to find out what's the weight of each sash or to find out the stamped weight of each coil tape to know which weight to order within the specific part number. The weight may be determined by the size 31.75"x45.25".

Finally, I'm trying to figure out how to unroll the existing coil tape balance and how and where to reconnect to coil pivot housing.

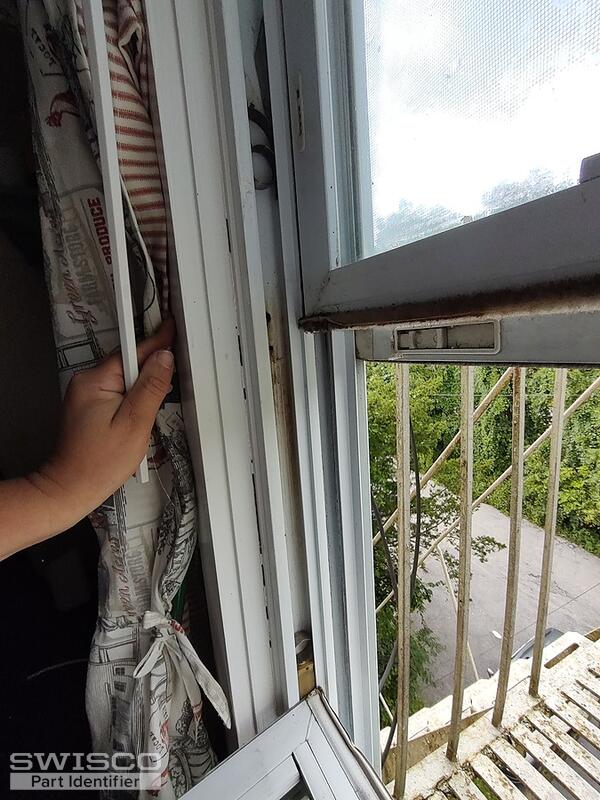

The windows seem to be older American Craftsman windows model 8501B. Other information on window tags in picture 1.

Lauren · Accepted Answer

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 26-408 tilt latch pair to confirm a good fit!

For the coil balance assembly, we will need to see the window sash removed where we can see a clear view of the pivot shoe that the coil springs are attached to in the window channel.

There should a number either stamped on the metal coil itself or plastic pivot shoe that will indicate the weighted option needed. If there are no markings, while the window sash is removed, you will need to place it on bathroom scale to determine the exact weight.

Once we have the details and pictures requested above, we can determine the correct series for your window. Thank you!
