Polaris window coil spring assembly

Home Owner from Cleveland

Jul 12, 2023 3:21 pm

Hello!

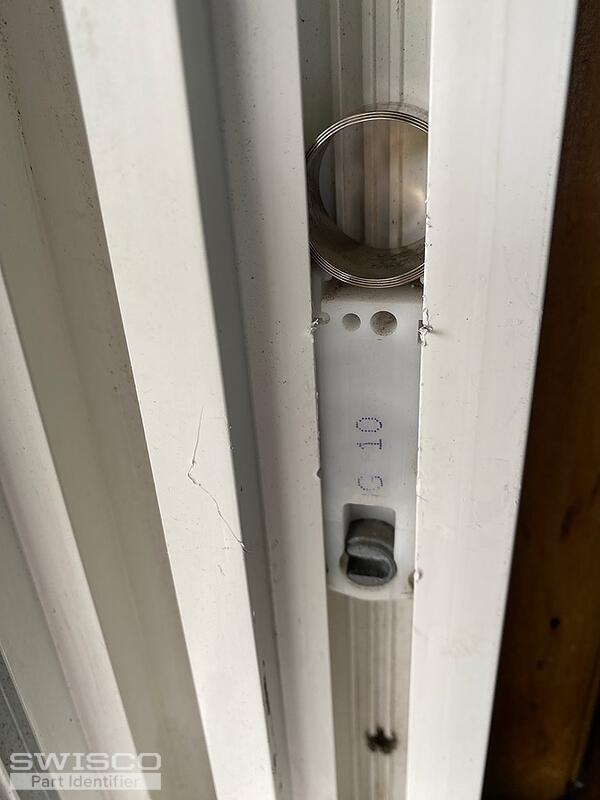

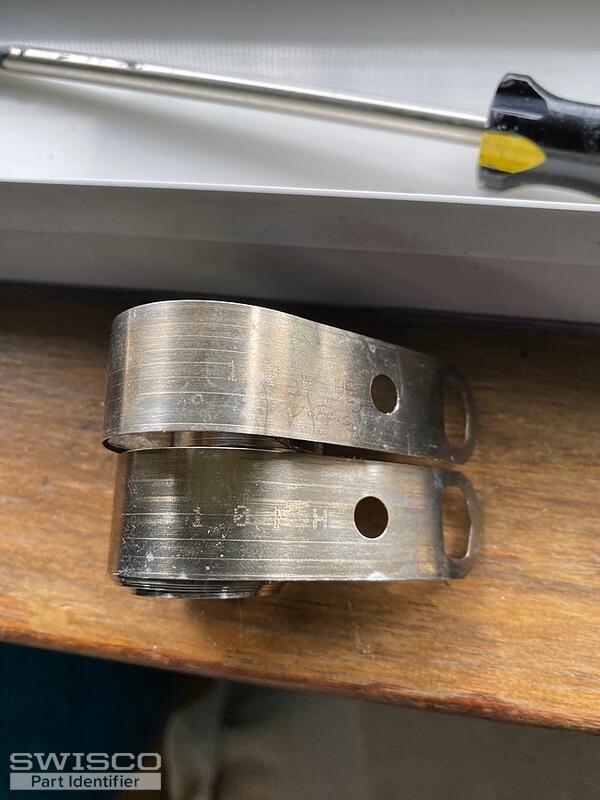

I'm replacing the balance coil spring assembly in a double hung Polaris window. I'm sending some pictures. The coil width is 11/16" and stamped 10FH; the shoes are stamped G10.
Please advise on Swisco replacement parts.
Thank you.

2 user uploaded images

5 Replies

+ Add a Comment

Emily from SWISCO

Jul 13, 2023 2:10 pm

EXPERT

Hi there!

Thanks for reaching out to us. Our Series 210 looks similar to what you have here. I recommend you remove yours from the window to confirm the dimensions line up with ours. However, note that the spring is 7/8" thick, not 11/16". Can you double-check that measurement for us, just to be safe?

Alternate image for S210-08

Home Owner from Cleveland

Jul 13, 2023 3:08 pm

Hi Emily,

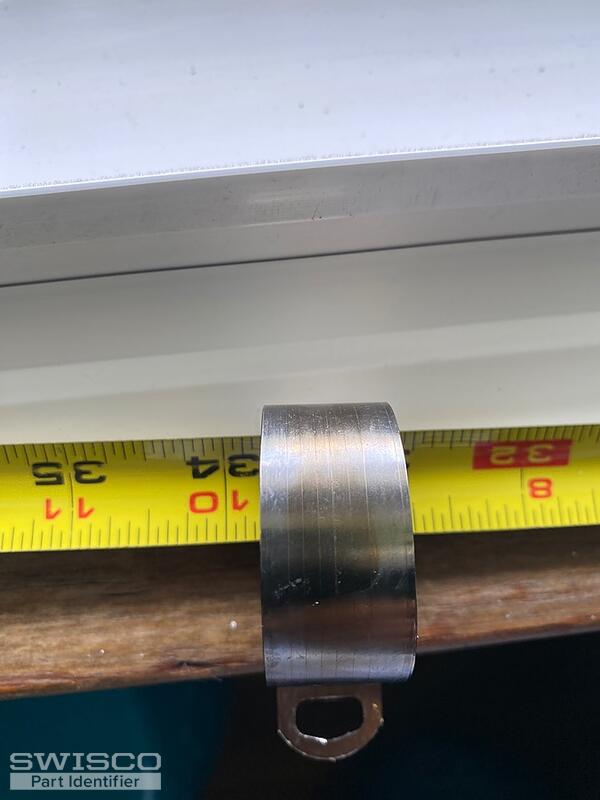

So here's another pic. It's closer to 3/4" but definitely not 7/8". However, I'm willing to give the 210 a try, thanks!

1 user uploaded images

Emily from SWISCO

Jul 14, 2023 7:53 am

EXPERT

Great, you can place an order for this part right on our website at your convenience. Our return policy can also be found here just in case!

Home Owner from Cleveland

Jul 17, 2023 11:34 am

One more thing:
So I need a pair of replacement springs. Are they designated left side / right side?

Emily from SWISCO

Jul 17, 2023 1:06 pm

EXPERT

The Series 210 balance can work for either the left or right hand side interchangeably. That said, we always recommend replacing both balances for a single window sash at the same time.

+ Add a Comment

Products and resources found in this discussion

8 lbs Series 210 Roller-Tilt .880, Single

S210-08

$8.42

10 lbs Series 210 Roller-Tilt .880, Single

S210-10

$8.82
