Polybau Parts

A handy person from Los Altos says:
October 21, 2020
I have 15 year old Polybau windows and I am looking for parts. There are two windows to fix:
1. One bathroom window has a problem with latch. It does not work. I am including a picture.
2. The second bathroom has a sash window. It slides freely without friction. It may be missing spring. I am including a picture.
Do you carry parts ?
Thanks, Jerry
Thumbnail of the uploaded file named Latch_on_bathroom_window.jpg
Thumbnail of the uploaded file named Sash_window.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 27, 2020

Hi, Jerry. Starting with the latch, can you show me a picture of it out of the window? Your current photo shows the base, but that only tells half the story. We need to see the rest of it, as well.

As for the windows moving freely, it definitely sounds like they're missing their balance springs. In order to ID what you need, though, I'll have to see one of the originals. Do you still have one that I can use as a reference?
A handy person from Los Altos says:
October 28, 2020
To answer the 1-st question, I am including three pictures of latch mechanism.
To answer the 2-nd question, I am including a copy of label, which was on the sash window. It is unfortunately partially damaged, but may be you can decode it.
Pictures are not in s sequence.
Jerry
Thumbnail of the uploaded file named 26E328CD-CF48-49C0-93C4-6FB9A4F37691.jpeg

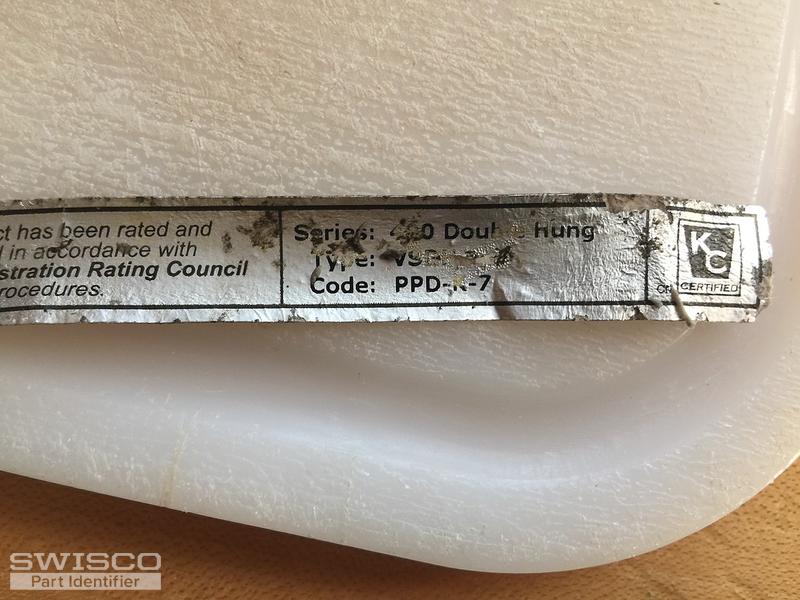

Thumbnail of the uploaded file named 9A511669-A865-4695-8FEA-8895B06B7E27.jpeg

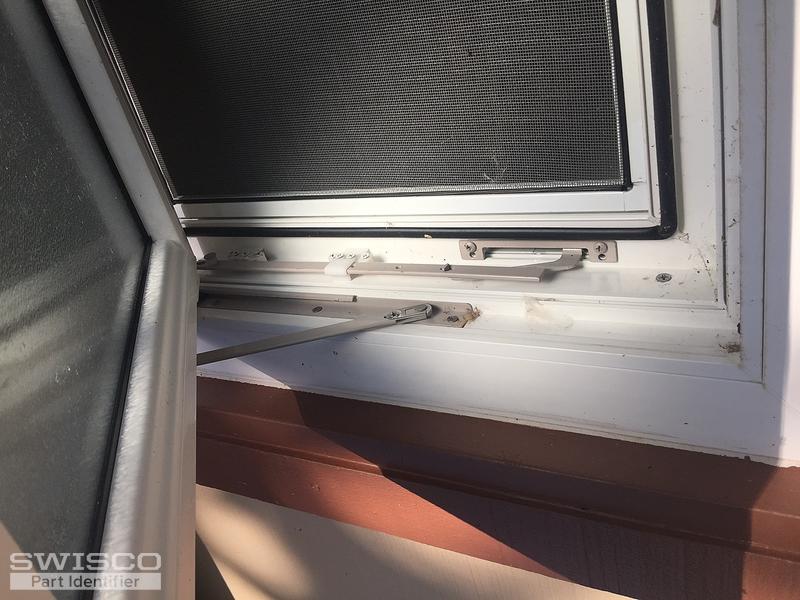

Thumbnail of the uploaded file named 09A66C24-07E3-435D-A62F-223AD0AB368E.jpeg

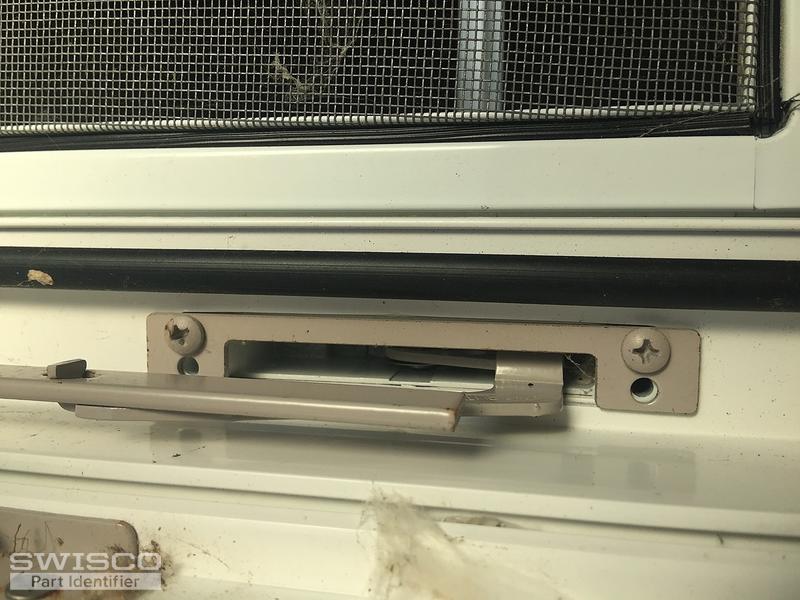

Thumbnail of the uploaded file named 86849FAE-9448-40A2-9E09-EC4F53645E83.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 29, 2020

Thanks, Jerry. The locks look like our 38-091 and 38-092. I think these may be just what you were looking for.

That label doesn't tell me anything, unfortunately. i need to see the balance itself.
A handy person from Los Altos says:
October 31, 2020
Why do I need two part numbers ? What are they ?

As far as the sash window, I do not see any counterbalance. I though it is just a spring acting on window side. I am including pictures of left and right sides of the window.

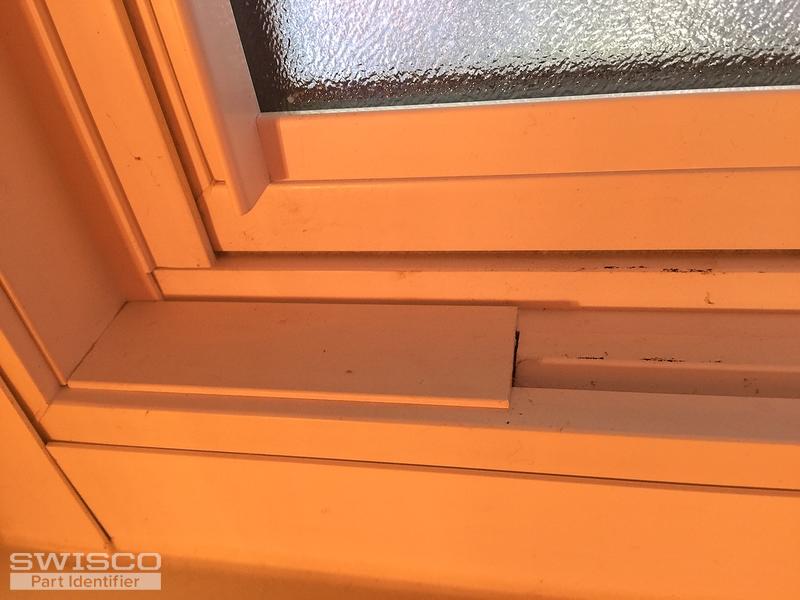

Thumbnail of the uploaded file named 1EA4B906-D24D-4534-B5DE-3B32EF68AE9D.jpeg

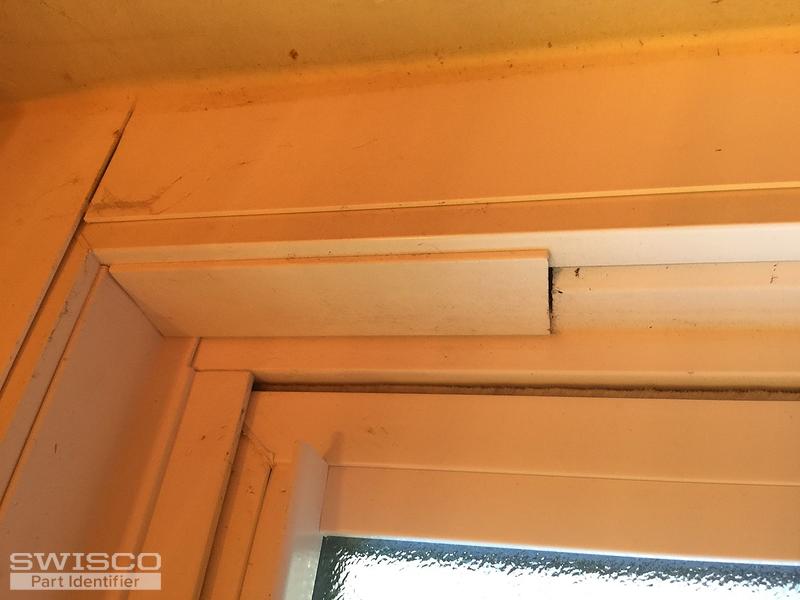

Thumbnail of the uploaded file named 53865938-5C6F-440B-963C-C394CC4AE4E9.jpeg
Profile picture of Tom
Tom from SWISCO responded:
November 2, 2020

The two locks I recommended are for the left and right side of the window.

All spring action devices found on any window are called a "balance." You definitely have one, it's just hidden behind a cover. You need to remove that in order to get to the balance.
Multi-Point Sash Lock LH, 24 Series
Multi-Point Sash Lock LH, 24 Series
38-091
$27.30
Multi-Point Sash Lock RH, 24 Series
Multi-Point Sash Lock RH, 24 Series
38-092
$27.30
