Premier Window Parts

A quick learner from 22030 says:

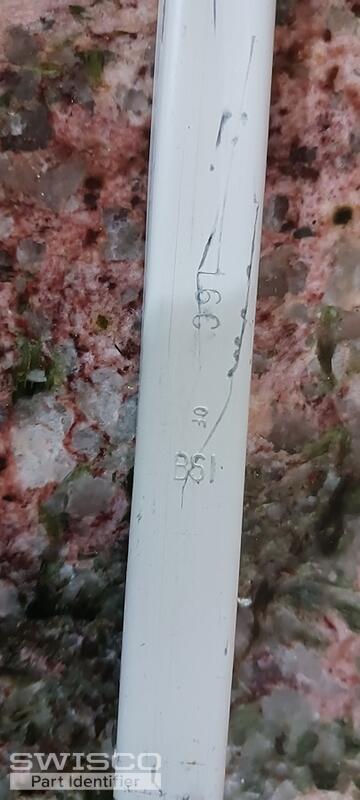

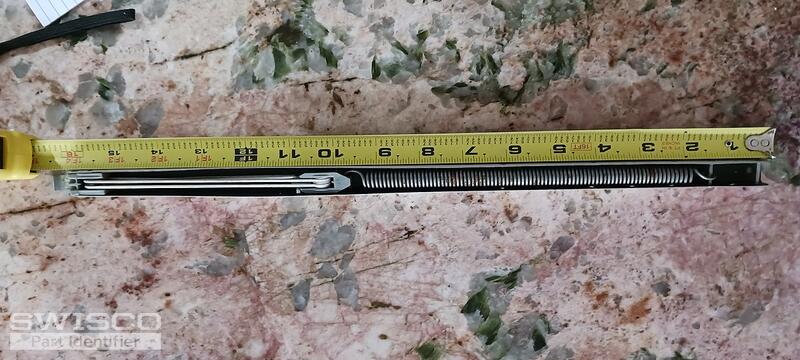

Additional pics of parts to the same window
Thumbnail of the uploaded file named 6.jpg
Thumbnail of the uploaded file named 7.jpg
Thumbnail of the uploaded file named 8.jpg
Thumbnail of the uploaded file named 9.jpg
Thumbnail of the uploaded file named 10.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for posting! Your channel balance appears to be our S770-16 with a 16C stamp and a 15-170 Snap-On Clip attached. It also appears to have a rivet at the top. Given these details, these will need to be a custom made assembly but the good new is that we can get them made up for you in our warehouse.

There appears to be a 19-029 Short S-Clip attached to the top of the balance, which is sold separately. The compatible shoe is the 15-169 Snap-Lock Pivot shoe.

I've just forwarded over a separate link with a quote for (2) custom balances as there is an order minimum of (2) balances per custom balance. Please let me know if you need a higher quantity of balances and I'll be happy to update the quote for you.

You'll be able to use this link to review the pricing of these balances and to place them in your online cart to make your purchase. Be sure to check your spam/junk folder for the link if you do not find it in your primary inbox.

Also, don't forget to add the s-clip and shoe to the cart along with the balances.

Please feel free to reach out with any questions.
