Privacy/ passage lock parts
Home Owner from Boston
Sep 13, 2013 7:59 pm
I am looking for a replacement mechanism to hold a door shut and or the replacement spring to make this work again.

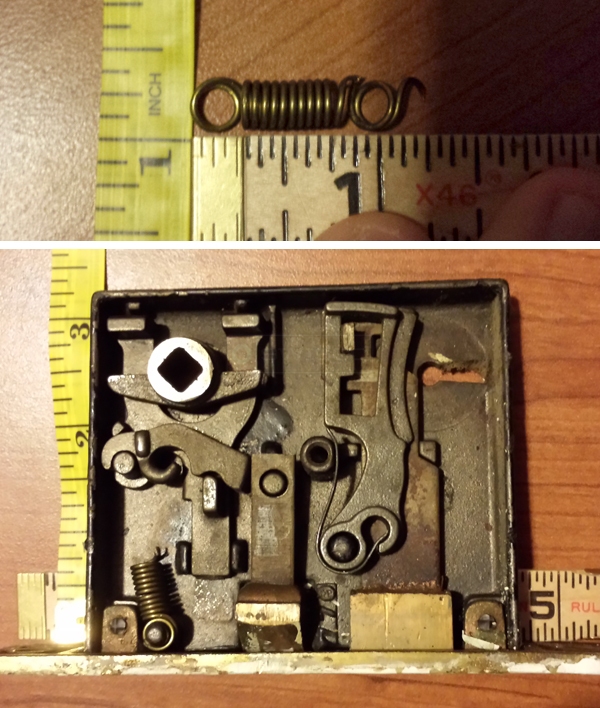

Plate is 5.5 inches long and one inch wide
locking bay 3 and 1/8th wide 3 and 5/8 tall and half inch thick
The broken spring is half an inch spring body(the coiled part) and two quarter inch circles on either side.
Plate is 5.5 inches long and one inch wide
locking bay 3 and 1/8th wide 3 and 5/8 tall and half inch thick
The broken spring is half an inch spring body(the coiled part) and two quarter inch circles on either side.
2 Replies
Dave Sr. from SWISCO
Sep 16, 2013 3:16 pm
Thanks for posting. I don't think we would be able to replace the spring. The closest replacement I was able to find was our 42-009 handle set. Compare the measurements to see if this can work as a replacement.
