Problem with adjustment screw

A handy person from Hallandale, Fl says:

January 30, 2016

Good day.
First of all I would like to say thank you for all advises that you are giving to us who in need of a word from people who know what are they talking about.
I have a screen door with wheels I showing on my photo. I found the replacement in Home Depot, but can't adjust the wheel because the frame is already degraded so much, that I can not do anything.
If I could find any kind of clip that can cover that damaged area, and has an option to use an adjustment screw, that would be great.
As another option, maybe you can advise me with another kind of wheels that I can apply to that door and avoid adjusting from the top.
Or if you can give me any other different idea or advise, I would appreciate it.
Thanks in advance,

Alexander

User submitted photos of patio door hardware.

Paul from SWISCO responded:

February 2, 2016

I see you have the old Keller screen door.. I believe this uses our 84-009 roller. That said, you seem to have quite the amount of corrosion where the adjusting screw would go. Instead of buying a new door, try the following method.

Consider purchasing our 84-083 roller and install it in the door like you would the 84-009, with the attached adjusting screw going through the corrosive opening. Attach the wheel from the bottom through the opening with two 33-071 screws. Now, I can't guarantee this will work, but it might be worth a try since Keller discontinued their door manufacturing. If it works, then you've saved yourself from having to replace a door that's no longer made!

A handy person from Hallandale, Fl says:

February 2, 2016

Thanks Paul.
I like the idea, but a little bit concerned. On the video that attached to 84-083 description I can see that wheel is attached to the surface that is not leveled with adjustment screw surface that I have. It is lower or, in other words, it's closer to the bottom. In my case the opening for the wheel is way wider and I do not think that 33-071 screw can reach the surface where it can be attached.

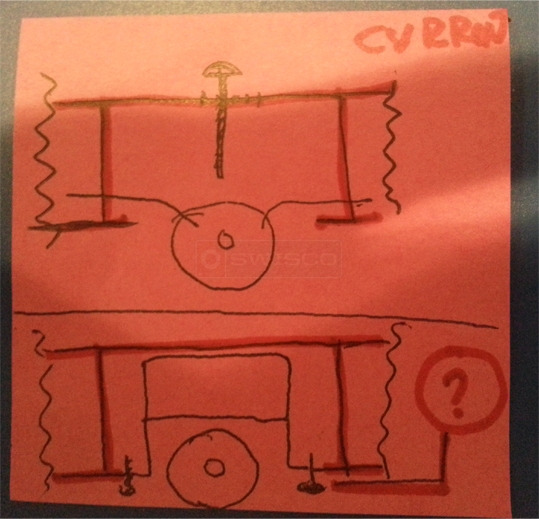

Trying to attach the sketch with pointers to the screws attaching area.
What's your opinion?
Thanks again

User submitted photo of their door hardware.

Dave Sr. from SWISCO responded:

February 3, 2016

Hey, maybe I can help. Do you think you could mount either the 84-005 or 84-008 roller with the 33-071? Maybe with the longer spring you can catch some better frame to drill into. You will also need to drill a hole in the frame for the 84-502 adjustment screw. Unfortunately, there is no quick fix for this situation other than purchasing a new screen door.

A handy person from Hallandale, Fl says:

February 6, 2016

Thanks Paul. Disregard my sketch I did before. That is not an issue.
The problem now is how tall is your 84-083 housing? I bought one in local store to try it on. The housing is
1 1/4" tall and it doesn't fit. I need something shorter by 9/16". Photo attached.
Thanks for your help.

To Dave.
Thank for your attention too. However I can not adjust the wheel. There is no place to catch the frame as I shown on my initial photo.
If you such affirmative that it can't be fixed, maybe I have to replace the whole frame.

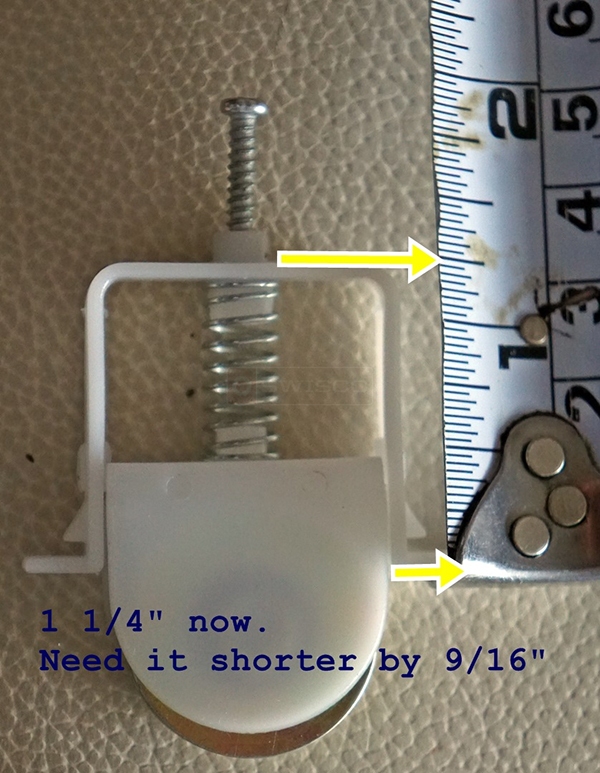

User submitted a photo of a patio door roller.

A handy person from Hallandale, Fl says:

February 6, 2016

And final idea.
Seriously. Have no more other ideas. This one is final. Just need your opinion as experts. Can I drill a frame from a side and just use the wheel like 84-057? In order to adjust I can drill a vertical channel instead of just opening and can adjust the wheel up and down.
What do you think? Do you think it's achievable?
Thanks for your help.
Alexander

Dave Sr. from SWISCO responded:

February 9, 2016

That's not a bad idea! I hope it works out. Other than purchasing a new door that may be your only option.

Patio Screen Door Roller Assembly

84-009

$1.95

Columbia Door Bottom Roller, Metal Wheel

84-083

$7.10

#6 x 3/8 SS Pan Head Screw

33-071

$0.21

Screen Door Roller, Nylon Wheel

84-005

$1.51

Screen Door Roller, Nylon Wheel

84-008

$1.98

#8 x 1" SS Adjusting Screw

84-502

$0.57

1" Screen Door Wheel Assembly

84-057

$1.92
