Problems with 82-306

A quick learner from USA says:
Supporting info:
Door thickness:1-1/16"
Mounting screw spacing: 3-15/16"
Problem Statement: 82-306 exterior pull doesn't close to my door thickness of 1-1/16" with my existing internal pull. Everything fits except the key barrel is too long and bottoms out on the internal pull barrel before it can close to door. thickness.
Solution:
1)Swap out key barrel that came with the 82-306 pull for a 1-1/16" barrel that fits the 82-306.
2)Get a new interior and exterior pull set with lick that works with a 1-1/16" thick door.
3)Cut 5/16" off my existing internal pull barrel length so it can't bottom out until door thickness.

Thumbnail of the uploaded file named 79.PNG
Thumbnail of the uploaded file named 70.PNG
Thumbnail of the uploaded file named 76.PNG

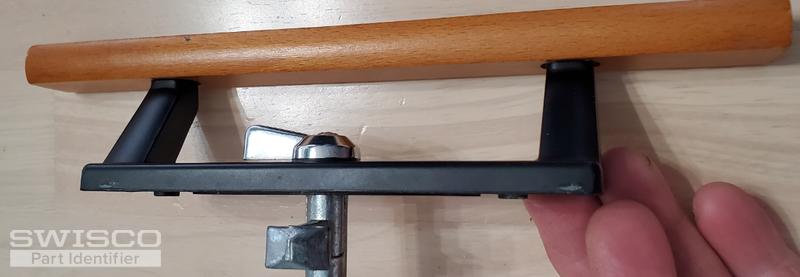

Thumbnail of the uploaded file named 77.PNG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at the 82-303 key cylinder to see if you could use this type to fit into your existing exterior handle. It has a shorter barrel housing and might be the type you already show in your photos. Take note you will need to cut the tail on the 82-303 to fit the door thickness you have.
