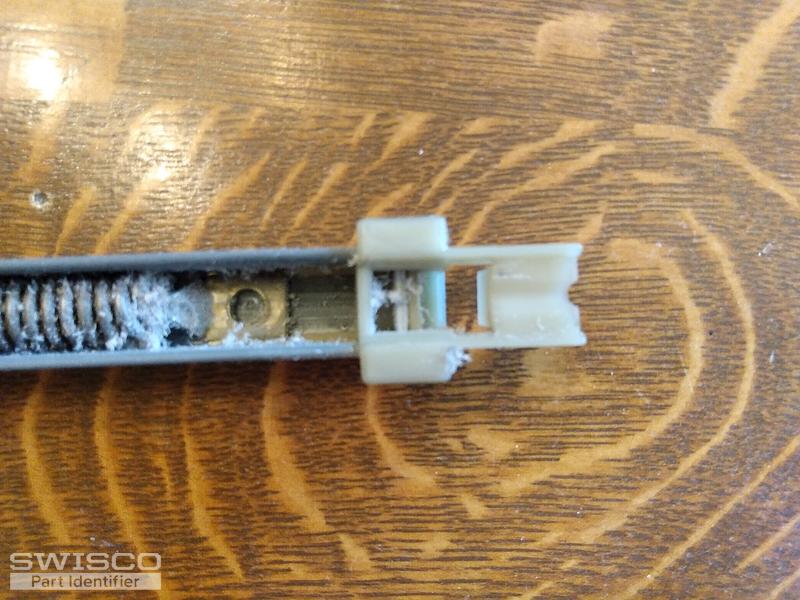

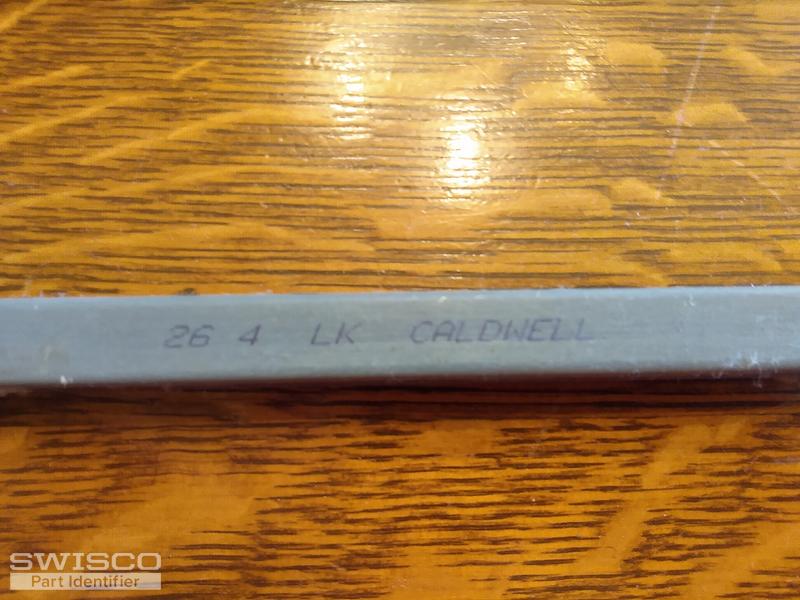

Looking for proper identification for replacement. The picture attached shows the only marking on the old unit.
The length of the metal part is slightly under 27 inches.
Thanks, Kurt
Product Identify
Quick Learner from Burlington, Washington
Mar 4, 2021 12:53 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Mar 4, 2021 3:35 pm
With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
