Purchased 84-066

Home Owner from Monmouth Beach, nj

Apr 18, 2024 8:52 am

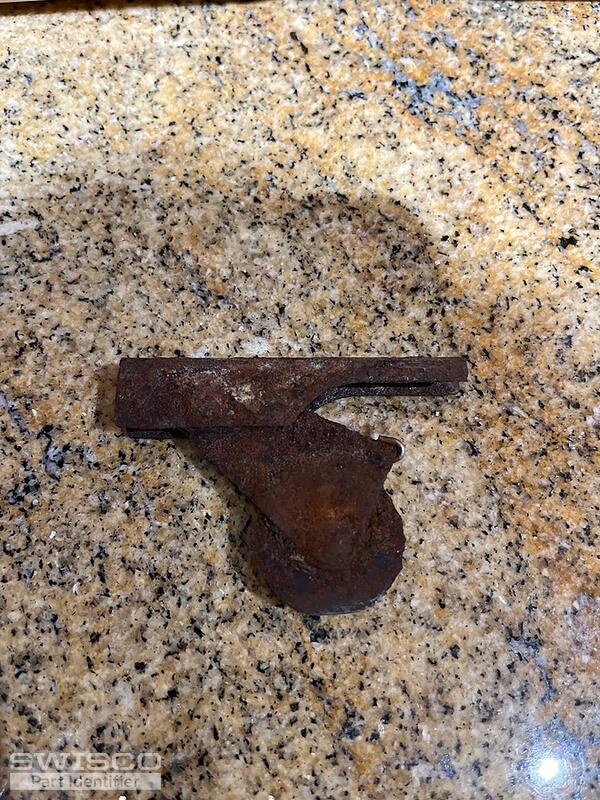

Below is a picture of my old roller. It is 1/2 in high opposed to the 3/4 in high 84-066 which I purchased. All other dimensions are the same. Will it work?

1 user uploaded images

3 Replies

+ Add a Comment

Casey from SWISCO

Apr 19, 2024 4:12 pm

EXPERT

Hello,

Your screen door roller resembles the 84-074 and 84-074B with steel wheels. We also offer the 84-074N with a nylon wheel, which is more rust-resistant. Take a look and see how the dimensions below compare to yours. Thank you!

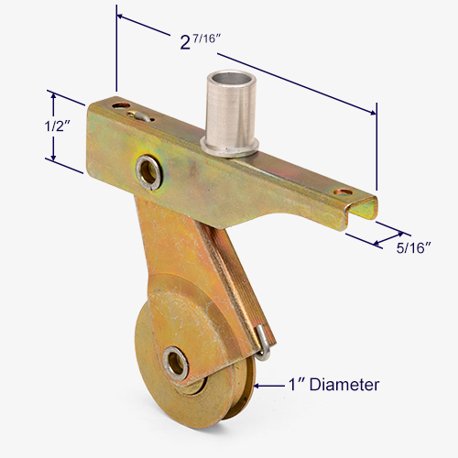

Dimensions for 84-074

Home Owner from Monmouth Beach, nj

Apr 20, 2024 8:01 am

Do you have a video showing how to install a 84-074 roller?

Dave Sr. from SWISCO

Apr 22, 2024 8:14 am

EXPERT

I'm afraid we don't have a video at this time, but there should be three holes on the top or bottom edge of the door where these rollers attach. The two outer holes are the mounting holes used to attach the roller bracket. The middle hole is where the adjustment screw goes. That allows you to adjust the roller.

+ Add a Comment
