Quaker balances

Professional from Michigan

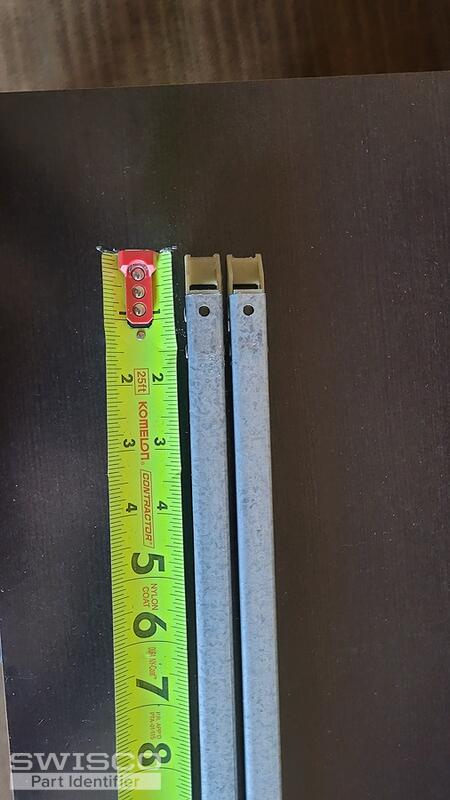

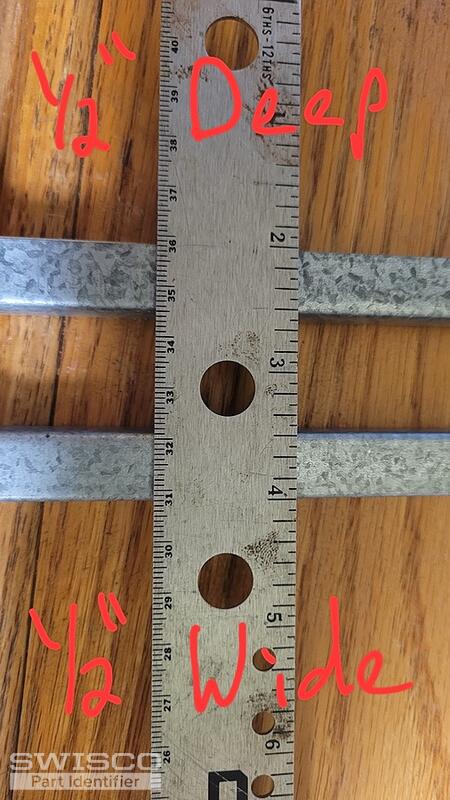

Trying to identify replacements for these side load, non-tilt balances. The uppers have a 2350 stamp. The lowers have a 2450 stamp
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. It appears you either have the S351-24 or S390-24, as well as either the S351-25 or S390-25. The only difference between the Series 351 or Series 390 Channel Balances is the depth of the bottom nylon shoe, or the measurement from 'heel-to-toe'. See the diagram below for reference. Compare both options with your old hardware to see what matches best.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

For the S351-24 or S390-24, choose 2350 for a stamp option. For the S351-25 or S390-25, go with 2450. Let me know if you have further questions.

Professional from Michigan

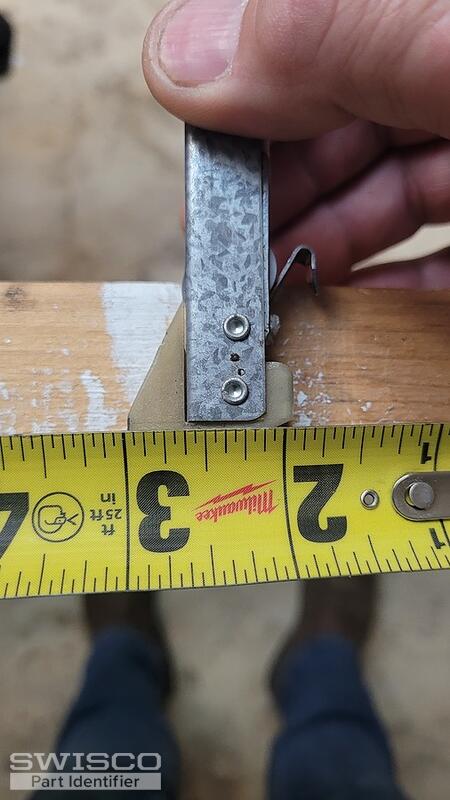

Hello. Thank you for your response. However I'm going to need a little bit more clarity, because as you can see, the exact width is in between the two measurements provided. 1 1/16".
1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

Hello. So long as the shoe is deeper than 1", I would go with the Series 390. Most likely it just wore down a bit due to age, hence why it's not quite measuring to 1-1/8". You could always check another balance just to be safe, but I think this is most likely the case. Let me know if you have further questions!
