REPLACEMENT HANDLE / LOCK

A home owner from Hawaii says:
April 9, 2022
Greetings. I Have A Feeling That The Proper Replacement Is A: Mortise Style Handle Set, 4-15/16"
Product Code: 82-080. (Almond) I Prefer The Newer Styles Of A Small Latch For Locking, Versus My Old One Where The Lock Is Activated By Moving The Whole Handle. Please Tell Me If I Need A New Mounting Plate And Any Other Items. Yes The Measurements Are 4 15/16 (hole to hole). Many Thanks
For Being Here On The Internet, So I Can Get The Proper Items !

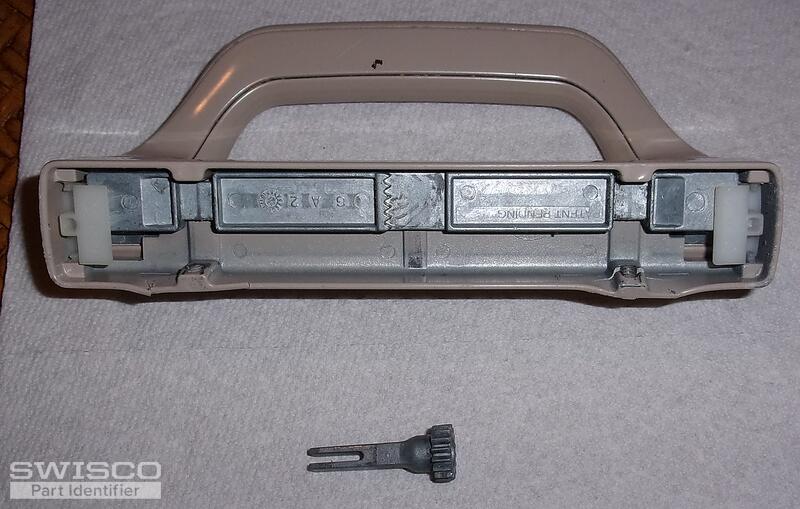

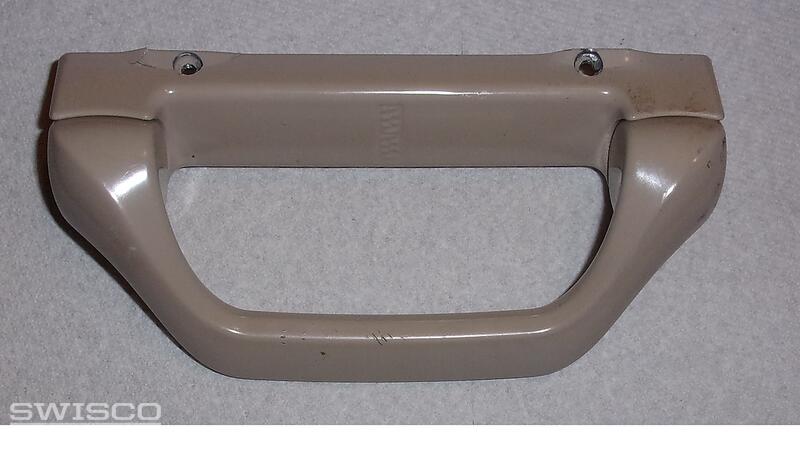

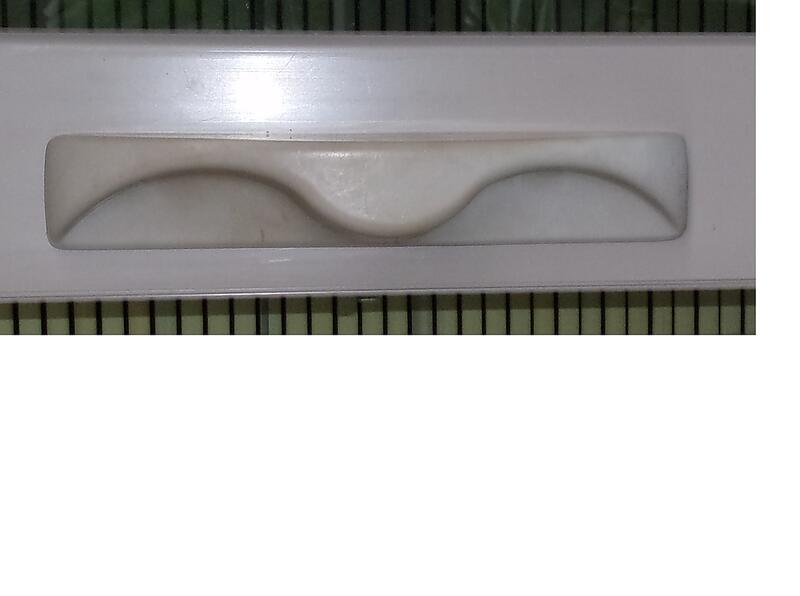

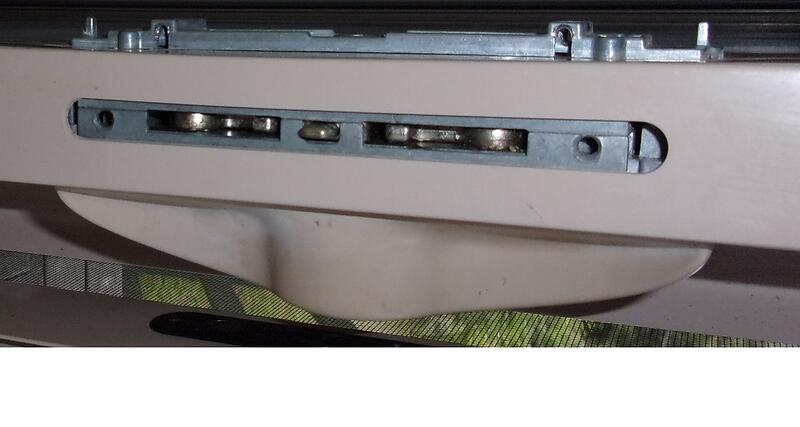

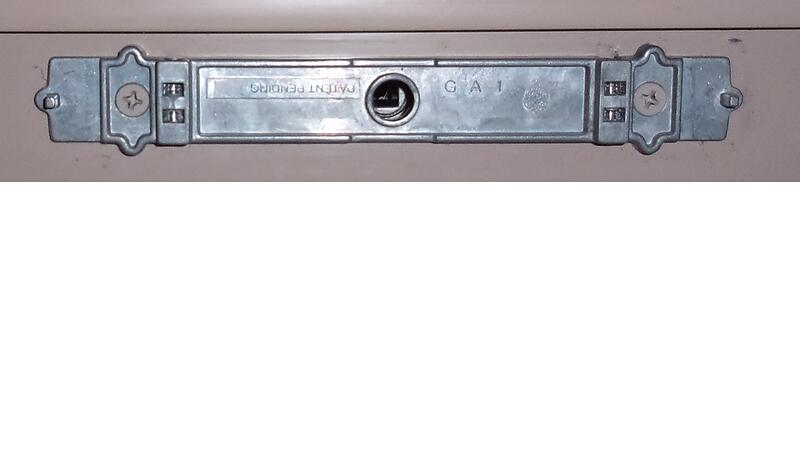

Thumbnail of the uploaded file named handle 1.png
Thumbnail of the uploaded file named handle 2.png
Thumbnail of the uploaded file named handle 3.png
Thumbnail of the uploaded file named handle 4.png
Thumbnail of the uploaded file named handle 6.png
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 11, 2022

Hello,

I believe you are correct that the 82-080 handle set could work on your patio door. It comes with the 82-240 latch lever, along with the 82-108 mounting plate. Take a look and see how the dimensions and related parts compare to be sure it will fit your door. Thanks for posting!
Roto Multi-Point Mortise Latch Lever
Roto Multi-Point Mortise Latch Lever
82-240
$5.20
Mortise Style Handle Set, 4-15/16"
Mortise Style Handle Set, 4-15/16"
82-080
$57.70
Multi-Point Mortise Lock
Multi-Point Mortise Lock
82-268B
$36.78
Mounting Plate
Mounting Plate
82-108
$7.97
